How to Protect Your Product and Equipment with Metal Detectors for Conveyors?

by:Smart Weigh pack     2020-08-12

Metal Detectors for Conveyors-what do you need to pay attention to?Industrial metal detectors systems are commonly used in the pharmaceutical and food industries. They check whether the product contains any substances that are not naturally present in the food.


People often ask me which conveyor belt is suitable for this application. This problem usually occurs after an incorrect belt is installed and the detector malfunctions.

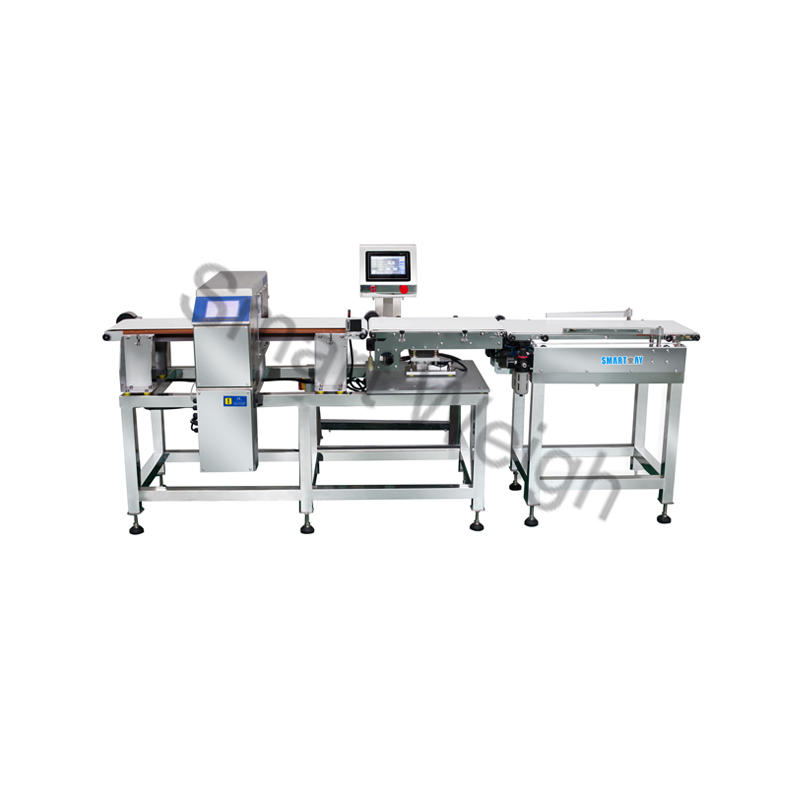

Smart Weigh Combined Metal Detector and Check Weigher Machine


Application fields of food metal detector:


  1. Detection of metal foreign bodies in dairy products, tea and medicinal health products, biological products, food, meat, fungi, candy, beverages, grain, fruits and vegetables, aquatic products, food additives, condiments, and other industries.


  1. Used for product testing in chemical raw materials, rubber, plastics, textiles, leather, chemical fiber, toys, paper products industries.


How metal detectors work


Belt Conveyor Metal Separators are designed to pick up, detect and then reject any kind of metal from a belt conveyor system. Maintenance of these machines is simple and they are incredibly user-friendly when it comes to operation.


The principle of the most widely used type of metal detector in the food industry is the "balanced coil" system. This type of system was registered as a patent in the 19th century, but it was not until 1948 that the first industrial metal detector was produced.


Advances in technology have brought metal detectors from valves to transistors, to integrated circuits, and recently into microprocessors. Naturally, this improves their performance, provides higher sensitivity, stability and flexibility, and expands the range of output signals and information they can provide.


Likewise, modern metal detector machine still cannot detect every metal particle passing through its aperture. The laws of physics applied in technology limit the absolute function of the system. Therefore, as with any measurement system, the accuracy of metal detectors is limited. These limits vary by application, but the main criterion is the size of the detectable metal particles. However, despite this, metal detector for food processing still play an important role in process quality control.


All general-purpose metal detectors basically work in the same way, although for best performance, you should choose a industrial metal detector conveyor specifically designed for your application.

The construction technology can ensure to prevent independent mechanical movement of the search head assembly and prevent water and dust from entering. For best performance, you should choose a metal detector specifically designed for your application.

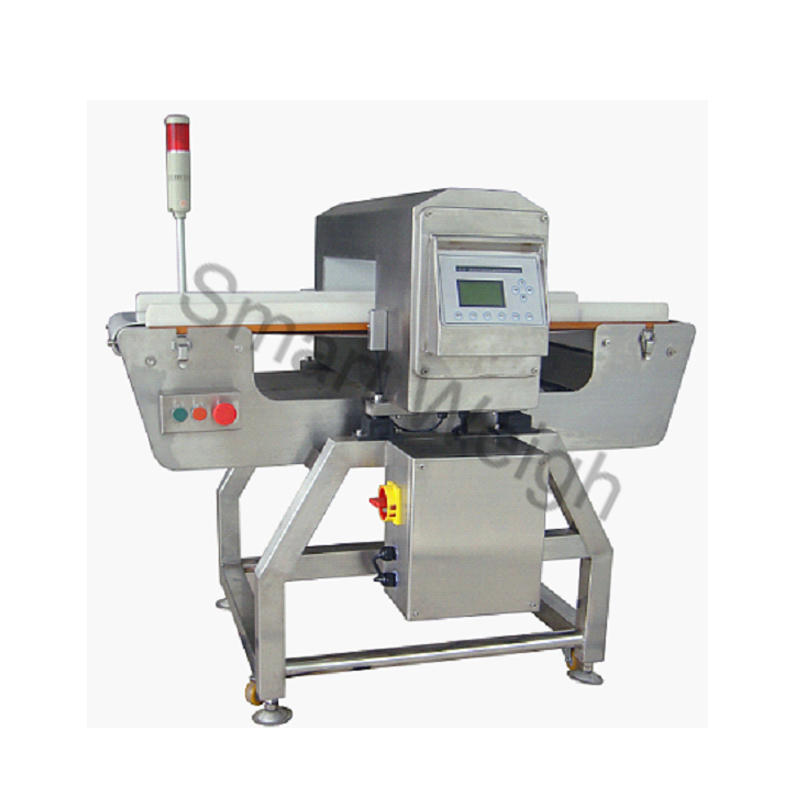

 Smart Weigh SW-D300 Metal Detector On Conveyor Belt


When choosing a belt for a metal detector, many factors need to be considered:


A fabric conveyor belt with a fully conductive antistatic layer generates a signal at the joint. Due to material interruption, it is not suitable for this type of application

Fabric conveyor belts with longitudinal conductive carbon fibers (instead of a fully conductive layer) provide antistatic properties without interfering with the metal detector. This is because the fabric is thin.

Fully synthetic, integral and plastic modular belts (without any special features) can also be used. However, these belts are not antistatic

Here are some tips on best practices:

Avoid varying thickness (for example, bonding film or cleats), asymmetry and vibration

Of course, metal fasteners are not suitable

Conveyor belts designed for metal detectors must be stored in the packaging to prevent contamination

When making a ring connection, be especially careful to prevent dirt (such as metal parts) from entering the connection

The belt supported in and around the metal detector must be of non-conductive material

The conveyor belt must be properly aligned and must not rub against the frame

When conducting on-site steel welding activities, please protect the conveyor belt from welding sparks



Smart Weigh SW-D300 Metal Detector On Conveyor Belt is suitable to inspect various products, if product contain metal, it will be rejected into bin, qualify bag will be passed.



Control System
PCB and advance DSP Technology
Weighing range
10-2000 grams
10-5000 grams10-10000 grams
Speed25 meter/min
Fe≥φ0.8mm; Non-Fe≥φ1.0 mm; Sus304≥φ1.8mm Depends on product feature
Belt Size260W*1200L mm360W*1200L mm460W*1800L mm
Detect Height50-200 mm50-300 mm50-500 mm
Belt Height
800 + 100 mm
Power supply220V/50HZ Single Phase
Package Size1350L*1000W*1450H mm1350L*1100W*1450H mm1850L*1200W*1450H mm
Gross Weight200kg

Smart Weigh SW-D300 Metal Detector On Conveyor Belt
