Pringles Potato Chips Vertical Packing Machine With Multihead Weigher
Smart Weigh's Pringles potato chips vertical packing machine with multihead weigher delivers high-speed, precision packaging for stacked chip products. This automated potato chips packaging machine system combines advanced multihead weighing technology with vertical form-fill-seal capabilities, ensuring accurate portion control and minimal product breakage. The multihead weigher rapidly calculates optimal combinations for consistent weight accuracy, while the gentle handling system preserves chip integrity. It offers customizable bag sizes, high efficiency, and reliable performance—maximizing throughput while reducing waste and labor costs for potato chip manufacturers.
About Smart Weigh
Smart Package Beyond Expected
Smart Weigh is a global leader in high-precision weighing and integrated packaging systems, trusted by 1,000+ customers and 2,000+ packing lines worldwide. With local support in Indonesia, Europe, USA and UAE, we deliver turnkey packaging line solutions from feeding to palletizing.
Send Your Inqulry
More Choices
This matched product path helps long packets move through weighing, discharge and pouch loading with fewer blockages and more reliable batch delivery.
Designed for chips, biscuits, crackers and other bagged snacks, the system is configured around your filled bag dimensions, required pack quantity and production output.
The feeding configuration is matched to the connected bags discharged by your primary packaging machine. Smart Weigh reviews the chain length, filled bag dimensions and required bundle arrangement before confirming the system.

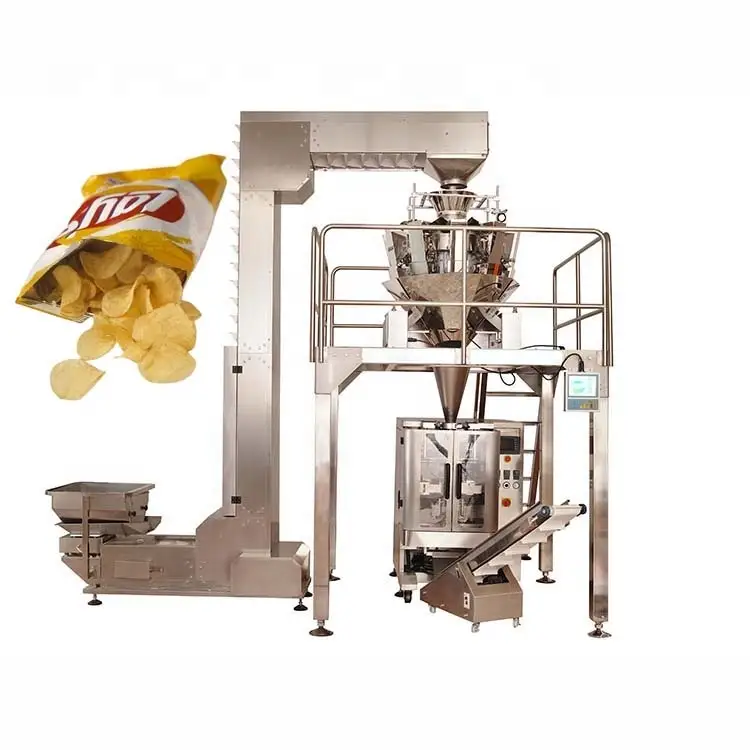

Potato Chips Vertical Packing Machine With Multihead Weigher
This advanced potato chips packing machine system seamlessly integrates high-speed multihead weighing technology with vertical form-fill-seal (VFFS) functionality, delivering exceptional accuracy and efficiency for large-scale potato chip production. The intelligent multihead weigher utilizes sophisticated algorithms to achieve precise weight targets while minimizing giveaway, ensuring consistent package weights and reducing product waste. Its specially designed gentle handling system protects fragile chip integrity throughout the entire packaging process, from feeding to final sealing.

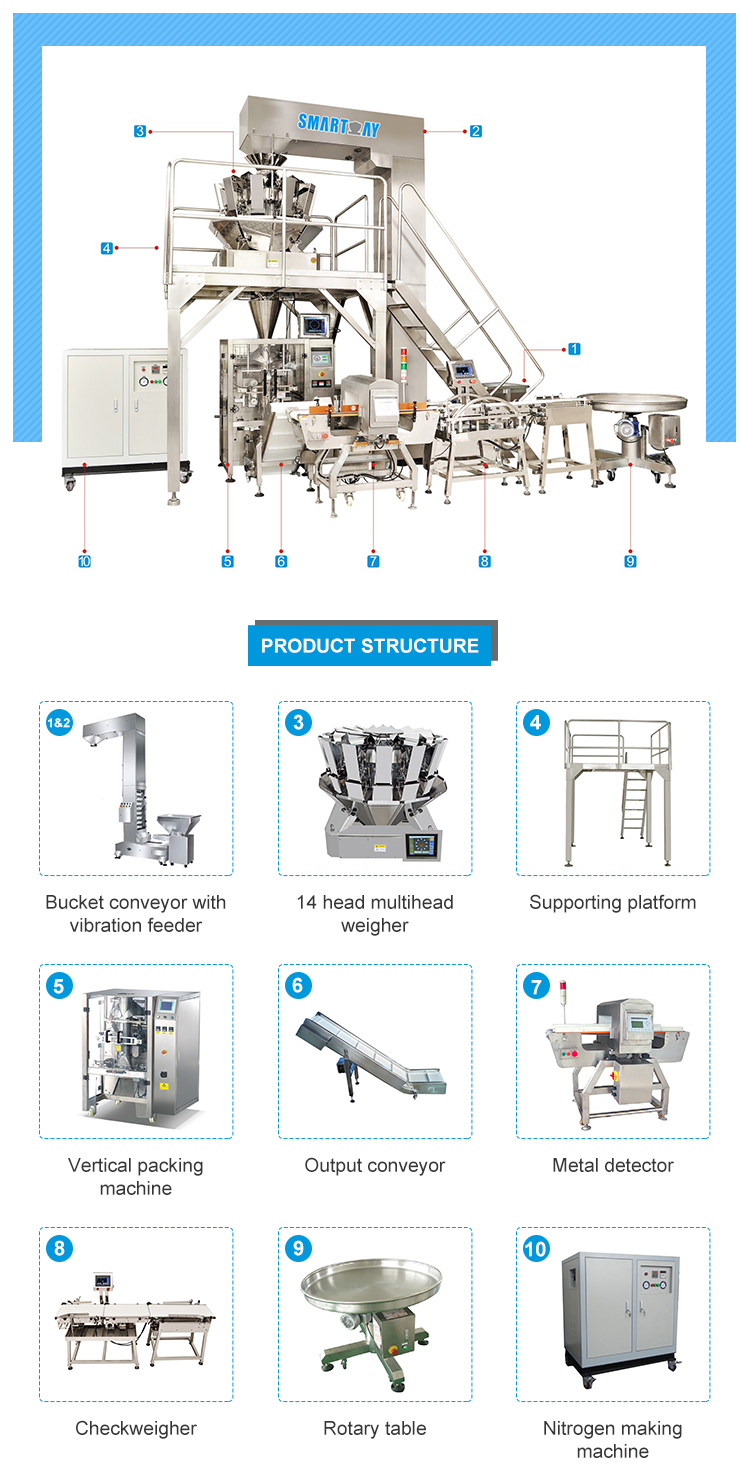

PRODUCT DISPLAY
PRODUCT DESCRIPTION
Model | SW-PL1 |
System | Multihead weigher vertical packing machine system |
Application | Granular product |
Weigh range | 10-1000g (10 head); 10-2000g (14 head) |
Accuracy | ±0.1-1.5 g |
Speed | 30-50 bags/min (normal) 50-70 bags/min (twin servo) 70-120 bags/min (continuous sealing) |
Bag size | Width=50-500mm, length=80-800mm (Depends on packing machine model) |

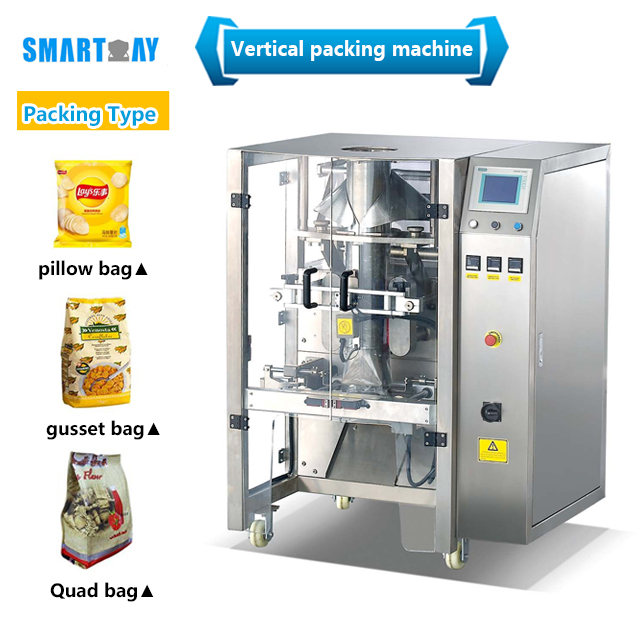

Bag style | Pillow bag, gusset bag, quad-sealed bag |
Packaging materials | Laminated or PE film |
Weighing method | Load cell |
Control penal | 7” or 10” touch screen |
Power supply | 5.95 KW |
Air consumption | 1.5m3/min |
Voltage | 220V/50HZ or 60HZ, single phase |
Packing size | 20” or 40” container |
PRODUCT FEATURES
Application:
It is mainly apply in automatic weighing various granular products in food or non-food industries, such as potato chips, nuts, frozen food, vegetables, seafood, nail and etc.
Features:
- Max speed 120 bags/min for small weight chips;
- IP 65 waterproof rating, can washed by water directly, save time while cleaning;
- Modular control system, more stability and lower maintenance fees;
- Production records can be checked at anytime or download to PC;
- Loadcell or photo sensor checking to satisfy different requirements;
- Preset stager dump function to stop blockage;
- Design linear feeder pan deeply to stop small granule products leaking out;
- Refer to product features, select automatic or manual adjust feeding amplitude;
- Food contact parts disassembling without tools, which is easier to clean;
- Multi-languages touch screen for various clients, English, French, Spanish, etc.
- SIEMENS PLC control system, more stable and accuracy output signal, bag-making, measuring, filling, printing, cutting, finished in one operation;
-
- Separate circuit boxes for pneumatic and power control. Low noise and more stable;
- Film pulling with servo motor for precision, pulling belt with cover to protect moisture;
- Open door alarm and stop machine running in an condition for safety regulation;
- Film centering automatically is available (Optional);
- Only control touch screen to adjust bag deviation. Simple operation;
- Film in roller can be locked and unlocked by air, convenient while change film.

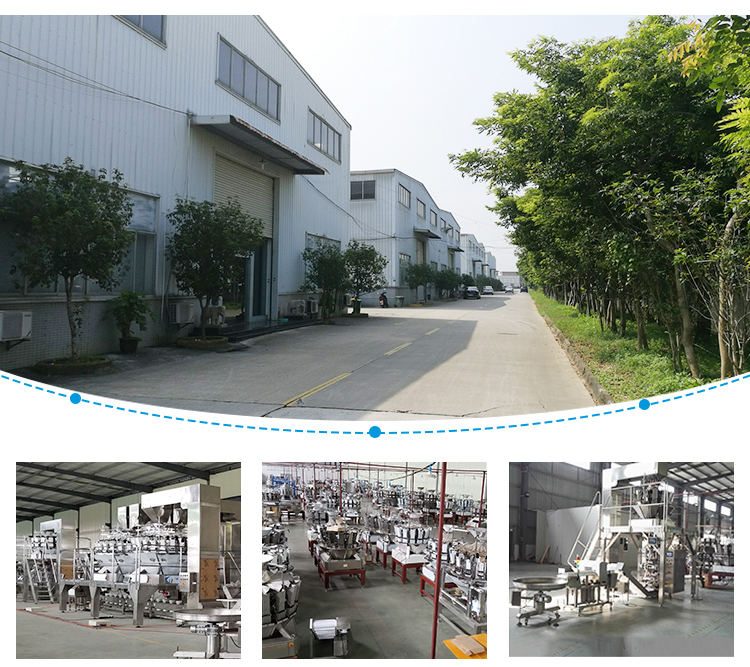

COMPANY PROFILE
Smart Weigh Packaging Machinery is dedicated in completed weighing and packaging solution for foods packing industry. We are an integrated manufacturer of R&D, manufacturing, marketing and providing after-sale service. We are focusing on auto weighing and packing machine for snack food, agricultural products, fresh produce, frozen food, ready food, hardware plastic and etc.
FAQ
1. How can you meet our requirements and needs well?
We will recommend the suitable model of the machine and make a unique design based on your project details and requirements.
2. Are you a manufacturer or trading company?
We are a manufacturer; we are specializing in packing machine line for many years.
3. How can we check your machine quality after we place an order?
We will send the photos and videos of the machine to you to check their running situation before delivery. What’s more, welcome to come to our factory to check the machine on your own
4. How can you ensure you will send us the machine after the balance paid?
We are a factory with a business license and certificate. If that is not enough, we can make the deal through trade assurance service on Alibaba or L/C payment to guarantee your money.
6. Why we should choose you?
—Professional team 24 hours provide service for you
—15 months warranty
—Old machine parts can be replaced no matter how long you have bought our machine
—Oversea service is provided.
