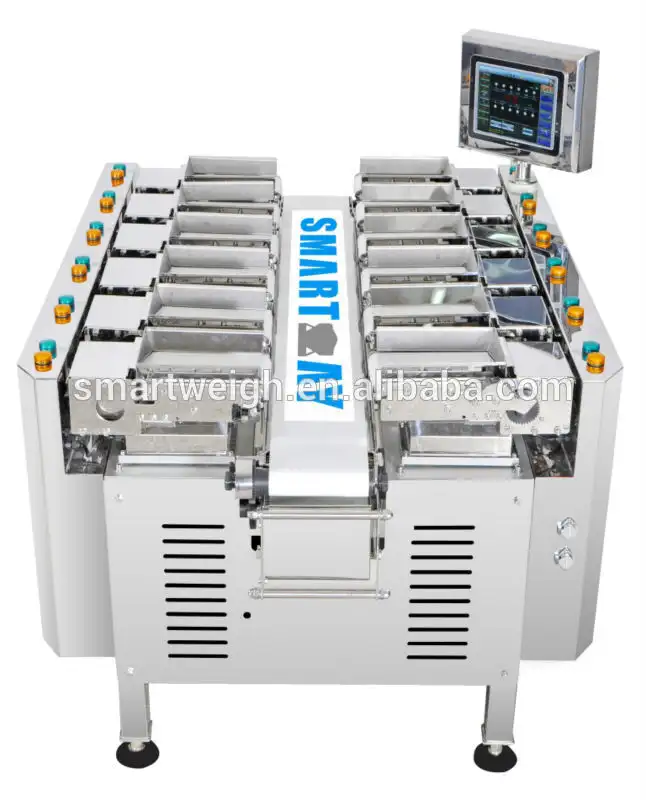

SW-LC12 CE approved Onion/Potato linear weigher with weighing
SW-LC12 CE approved Onion/Potato linear weigher with weighing
5.0
MOQ:
1 set
Certificate:
CE
Material:
SUS304, SUS316, Carbon steel
Country of origin:
China
Brand:
Smart Weigh
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
About Smart Weigh
Smart Package Beyond Expected
Smart Weigh is a global leader in high-precision weighing and integrated packaging systems, trusted by 1,000+ customers and 2,000+ packing lines worldwide. With local support in Indonesia, Europe, USA and UAE, we deliver turnkey packaging line solutions from feeding to palletizing.
Send Your Inqulry
More Choices
Smart Weigh SW-PL8 Linear Weigher Premade Bag Packing System
Multi-Function rotary Milk powder Packaging Machine
12 head linear combination weigher
Offer frozen food multihead weigher packaging machine for pillow bags and vacuum package, auto weigh, fill and pack.
no data
- Food, Machinery & Hardware, Medical
- Plastic
- Other
- Food & Beverage Factory
- New
- Bags, Bottles, Cans, Cartons, Case, Film, Foil, Pouch, Stand-up Pouch
- Automatic
- Electric
- 220V/50HZ or 60HZ; Single Phase
- 1.0 KW
- Guangdong, China
- Smart Weigh
- 250/300kg
- 1750L*1350W*1000H mm
- CE
- stainless steel
- load cell
- + 0.1-3.0 g
- 9.7" Touch Screen
- Motor
- Engineers available to service machinery overseas
- -
- 30 Unit/Units per Month
- -
Packaging & Delivery
- poly wood crate
- Zhongshan
Quantity(Sets) 1 - 1 >1 Est. Time(days) 35 To be negotiated - -
Specification:
Model | SW-LC10 | SW-LC12 |
Weigh head | 10 | 12 |
Capacity | 10-1000 g | 10-1500 g |
Combine Rate | 10-5000 g | 10-6000 g |
Speed | 5-25 bpm | 5-30 bpm |
Weigh Belt Size | 220L*120W mm | 220L*120W mm |
Collating Belt Size | 1050L*165W | 1350L*165W |
Power Supply | 0.9KW | 1.0 KW |
Packing Size | 1750L*1350W*1250H mm | 1750L*1350W*1000H mm |
G/N Weight | 200/250kg | 250/300kg |
Weighing method | Load cell | |
Accuracy | + 0.1-3.0 g | |
Control Penal | 9.7" Touch Screen | |
Voltage | 220V/50HZ or 60HZ; Single Phase | |
Drive System | Motor | |
Application:
It is mainly apply in semi-auto or auto weighing fresh/frozen meat, fish, chicken, vegetable and various kinds of fruit, such as sliced meat, lettuce, apple etc.
Special Features:
Belt weighing and delivery into package, only two procedure to get less scratch on products;
Most suitable for sticky and easy fragile in belt weighing and delivery,
All belts can be take out without tool, easy cleaning after daily work;
All dimension can be customize design according to product features;
Suitable to integrate with feeding conveyor and auto bagger in auto weighing and packing line;
Infinite adjustable speed on all belts according to different product feature;
Auto ZERO on all weighing belt for more accuracy;
Optional index collating belt for feeding on tray;
Special heating design in electronic box to prevent high humidity environment.
Details:

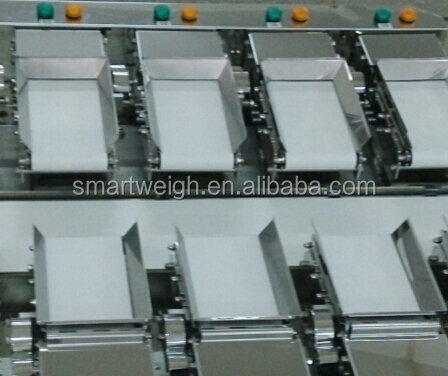

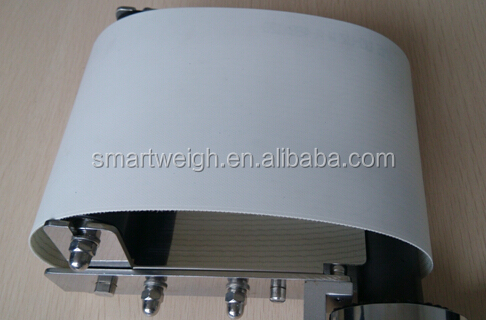

Weigh head belt quick release for cleaning. Weigh head belt suitable for sticky products:
Suitable auto weigh fresh/frozen meat, vegetable & fruit. Suitable to connect with auto bagging machine.

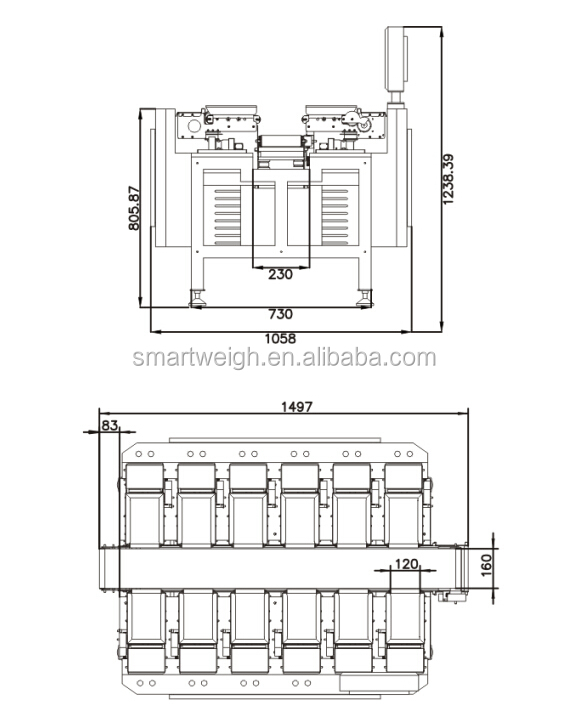

Drawing:
