Automatic kimchi pickle jar filling line machinery tin can packing machine

Smart Weigh Pack has developed a new kimchi bottle packaging system that solves the problem of weighing and packaging sticky materials, improving weighing accuracy while guaranteeing hygienic standards of food safety during the packaging process.Suitable for prepared squash, canned fruit, bottled snacks, etc.Can achieve 30 bottles per minute( 30x 60 minutes x 8 hours = 14,400 bottles/day) with accuracy control of 15g.

kimchi bottle packing line

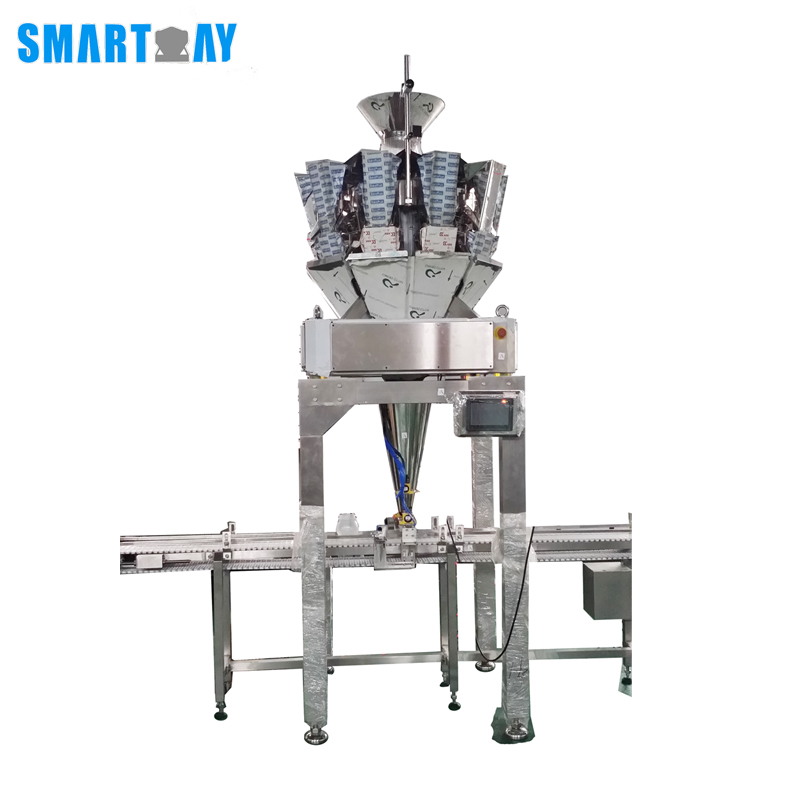

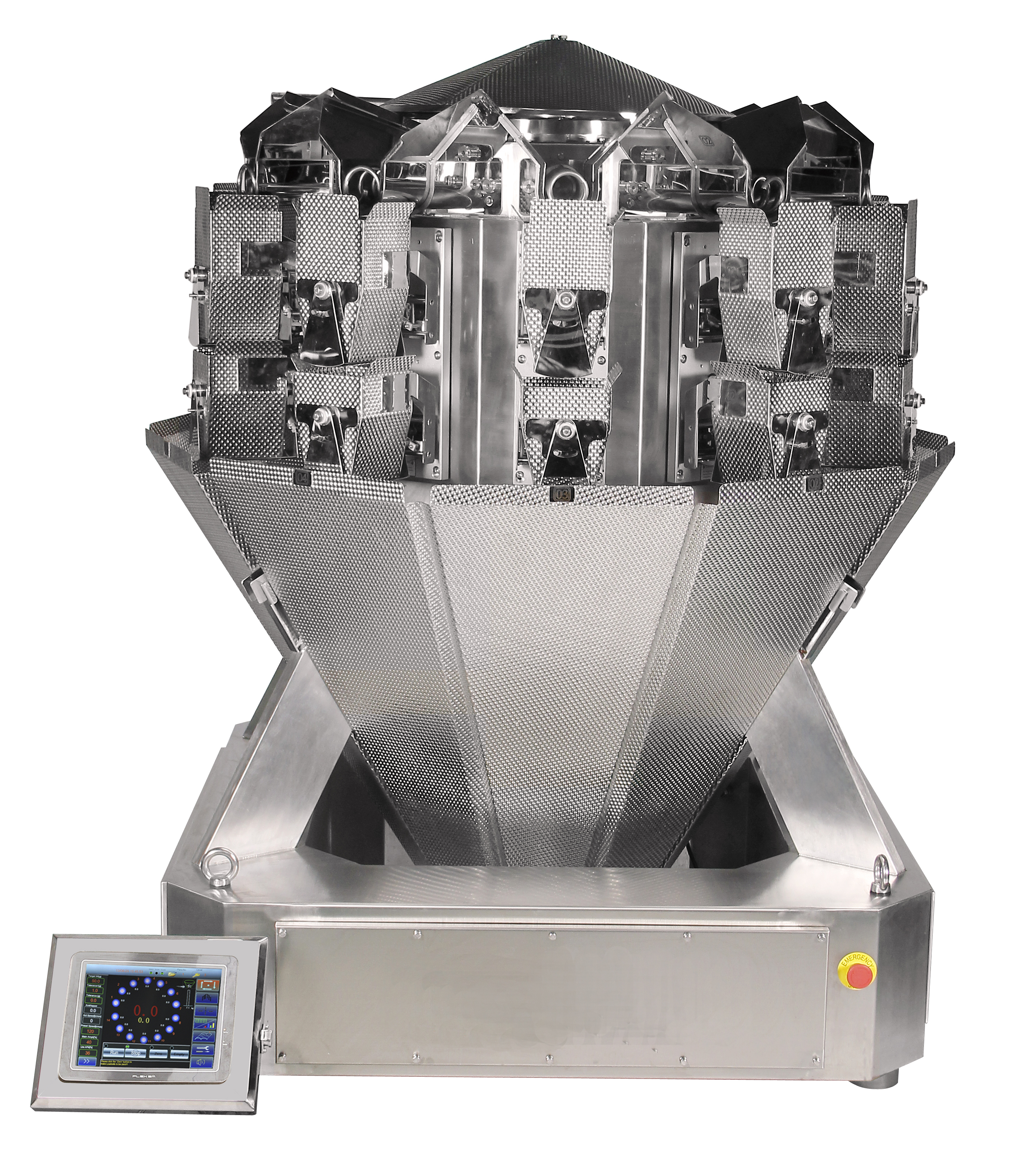

High precision multi-head weigher, with food contact parts made of SUS304 stainless steel food grade material and IP65 waterproof rating, is easy to clean and solves the cleaning problem of sticky material residue.

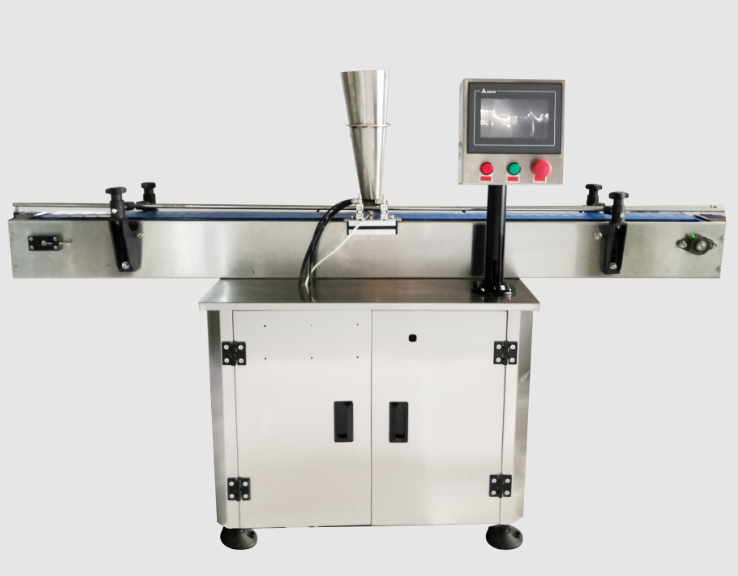

The machine is composed of granule filling head, chain plate conveyer belt and positioning device. It can complete automatic positioning, filling and measuring work of the bottle. Using servo (or step) motor and PLC touch screen, the operation is simple and the stability is high. It can be made up of a full set of filling line with the bottle cutting machine, the rotating cover machine and the labeling machine. Suitable for packing of powder and granule materials, such as powder, small granules medicine, veterinary medicine, glucose, spices, solid beverage, carbon powder, talcum powder, pesticide etc.. It can be installed on the basis of different materials, and can also produce two, three and four equipment according to the requirements of the packing speed.

Factory price Gum Candy PET Jar Packing Machine Snack Food Granule Jar Filling Capping Labeling Machine

Automatic bottle packaging line can complete the whole process of bottle supply, cleaning, drying, filling, cap conveying, cap sealing, labeling and coding at one time.

Automatic Cans Tin Seaming Machine

1.Seaming rollers are made of stainless steel with high hardness and never rusty with excellent sealing performance.

2.Electric appliance parts all use brand high end elements with reliable and steady performance.

3.Latest generation design of can seamer is
non rotation of can body in the process of sealing ,which avoids shift and scatter of product put well in the can.

4.The machining precision is high.Whole stainless steel materials are adopted for main part to design and manufacture which conforms to design requirements of manufacturing workshop.

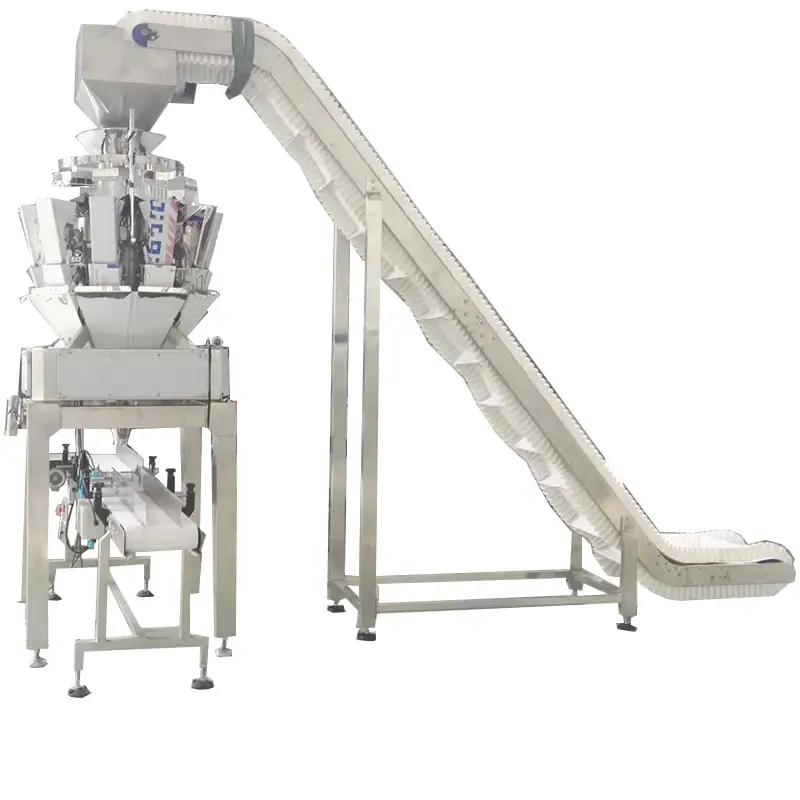

Combination weigher filling system

1. Weighing range: 10-1500g 10-3000g

2. Weighing accuracy: 0.1-1.5g 0.2-2g 3. Max. filling speed: 60cans/min 4. Hopper capacity: 1.6L/2.5L 5. Control System: MCU 6. Touch screen: 7 inches 7. Power supply: AC220V 50/60Hz 8. Size: L1960*W4060*H3320mm

9. Weight: 1000kg

10.Machine power: 3 kw（about）

Scope of application: Laundry gel beads, wolfberry, nuts and other granular quantitative weighing packaging；

Filling containers: bottles; plastic cans; glass cans; tinplate cans; cartons, etc.
