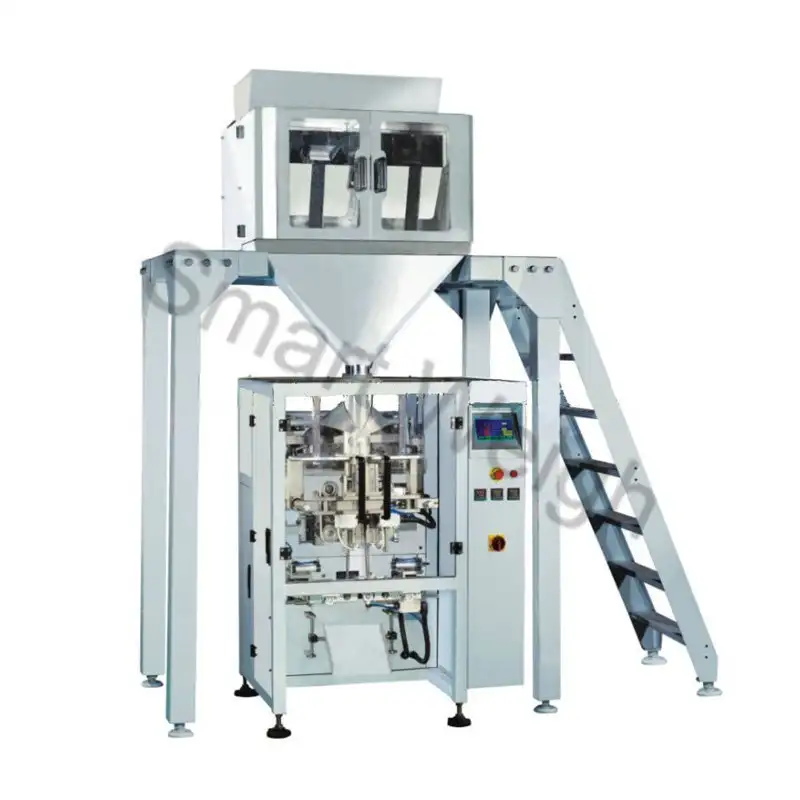

Smart Weigh SW-PL4 Linear Weigher Packing System
About Smart Weigh
Smart Package Beyond Expected
Smart Weigh is a global leader in high-precision weighing and integrated packaging systems, trusted by 1,000+ customers and 2,000+ packing lines worldwide. With local support in Indonesia, Europe, USA and UAE, we deliver turnkey packaging line solutions from feeding to palletizing.
Send Your Inqulry
More Choices
Model | SW-PL4 |
Weighing Range | 20 - 1800 g (can be customized) |
Bag Size | 60-300mm(L) ; 60-200mm(W) --can be customized |
Bag Style | Pillow Bag; Gusset Bag; Four side seal |
Bag Material | Laminated film; Mono PE film |
Film Thickness | 0.04-0.09mm |
Speed | 5 - 55 times/min |
Accuracy | ±2g (based on products) |
Gas consumption | 0.3 m3/min |
Control Penal | 7" Touch Screen |
Air Consumption | 0.8 mpa |
Power Supply | 220V/50/60HZ |
Driving System | Servo Motor |
※ Features
◆ Make mix different products weighing at one discharge;
◇ Program can be freely adjusted according to production condition;
◆ Can be remote-controlled and maintained through Internet;
◇ Color touch screen with Multi-language control panel;
◆ Stable PLC control system, more stable and accuracy output signal, bag-making, measuring, filling, printing, cutting, finished in one operation;
◇ Separate circuit boxes for pneumatic and power control. Low noise, and more stable;
◆ Only control touch screen to adjust bag deviation. Simple operation;
◇ Film in roller can be locked and unlocked by air, convenient while change film.
※ Application
Suitable for many kinds of measuring equipments, puffy food, shrimp roll, peanut, popcorn, cornmeal, seed, sugar and salt etc. which shape is roll, slice and granule Etc.
※ Product Certificate
