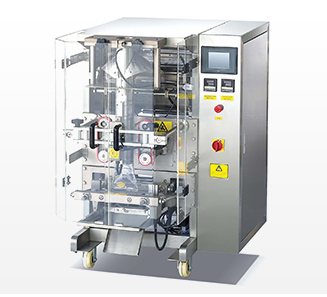

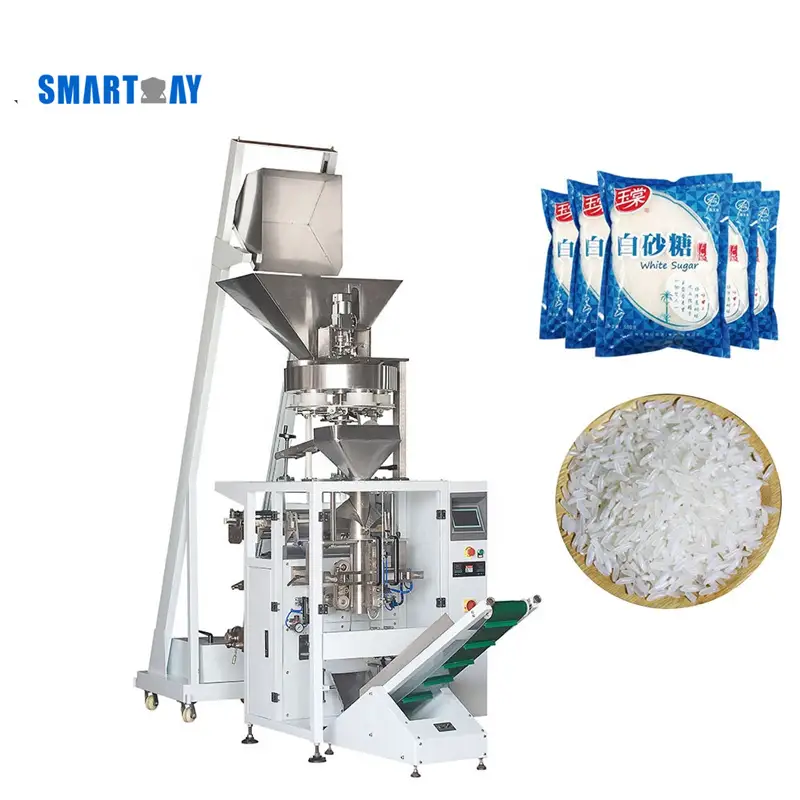

Automatic Salt Sugar Rice Grain Pea Nuts Cashew Sachet Packing Bagging Sealing Nuts Filling Machine With Cup Measuring 1

Automatic Salt Sugar Rice Grain Pea Nuts Cashew Sachet Packing Bagging Sealing Nuts Filling Machine With Cup Measuring 2

Automatic Salt Sugar Rice Grain Pea Nuts Cashew Sachet Packing Bagging Sealing Nuts Filling Machine With Cup Measuring 3

Automatic Salt Sugar Rice Grain Pea Nuts Cashew Sachet Packing Bagging Sealing Nuts Filling Machine With Cup Measuring 4

Automatic Salt Sugar Rice Grain Pea Nuts Cashew Sachet Packing Bagging Sealing Nuts Filling Machine With Cup Measuring 5

Automatic Salt Sugar Rice Grain Pea Nuts Cashew Sachet Packing Bagging Sealing Nuts Filling Machine With Cup Measuring

0.5kg1kg1.5kg 2kg 3kg 5kg salt sugar Filling Packing Machine，CE certification Customized New Design Rice Grain Vertical Packing Machine Weigh With Cup Measuring。Automatic volume cup turkish snack foods pack pouch 500g Salt Packaging Machine

Function:

weighing filiing sealing

MOQ:

Certificate:

Material:

SUS304,SUS316,Carbonsteel

Country of origin:

China

Brand:

SMART Weigh

Inquiry

Write a Review

About Smart Weigh

Smart Package Beyond Expected

Smart Weigh is a global leader in high-precision weighing and integrated packaging systems, trusted by 1,000+ customers and 2,000+ packing lines worldwide. With local support in Indonesia, Europe, USA and UAE, we deliver turnkey packaging line solutions from feeding to palletizing.

Send Your Inqulry

More Choices

Auto filling coffee bean linear weigher packing system small particle packaging machine for premade bag

Smart Weigh SW-PL8 Linear Weigher Premade Bag Packing System

Fully automatic weighting milk powder packing machine premade pouch packaging machine with Screw matering part

Multi-Function rotary Milk powder Packaging Machine

Automatic custom packaging system 12 heads belt multihead linear combination weigher

12 head linear combination weigher

Frozen Food Packaging Machine Manfacturer | Smart Weigh

Offer frozen food multihead weigher packaging machine for pillow bags and vacuum package, auto weigh, fill and pack.

Automatic sugar packing rice bean sugar forming filling packing machine

Automatic Salt Sugar Rice Grain Pea Nuts Cashew Sachet Packing Bagging Sealing Nuts Filling Machine With Cup Measuring 6

Automatic Salt Sugar Rice Grain Pea Nuts Cashew Sachet Packing Bagging Sealing Nuts Filling Machine With Cup Measuring 7

※ Technical characteristics

1. PLC control with stable reliable biaxial high accuracy output and color touch screen, bag-making, measuring, filling, printing,cutting , finished in one operation.

2. Separate circuit boxes for pneumatic control and power control. Noise is low, and the circuit is more stable.
3. Film-pulling with servo motor double belt: less pulling resistance, bag is formed in good shape with better appearance, belt is resistant to be worn-out.
4. External film releasing mechanism: simpler and easier installation of packing film.
5. Adjustment of bag deviation just needed to be controlled by the touch screen. Operation is very simple .
6. Close down type mechanism , defending powder into inside of machine.

Vertical Pacling machine
Model	SW-320	SW-420	SW-520	SW-720	SW-920
Film width	120-320 mm	420 mm	520 mm	720 mm	920 mm
Bag length	50-200 mm	80-300mm	80-400mm	80-500mm	80-650mm
Bag width	50-150 mm	50-20 mm	70-250 mm	60-350 mm	200-450 mm
Packing grams	50-150 ML	50-1500ML	50-3000ML	50-5000ML	100-10000ML
Packing speed	35-70bpm	35-70bpm	35-70bpm	35-70bpm	35-70bpm
Power	220V/380V/50/60 HZ
Machine dimension	9706801960 mm	120015001700	150016001800	160017001800	160017001800
Machine weight	300 kg	450 kg	500kg	600 kg	750 kg
We are packing machine factory ,we can customize for your needed

   Applicationbg
Suitable for packaging many different kinds of products; such as puffy  food, shrimp roll, peanut, popcorn, cornmeal, dried fruit, seed, small hardware,dumplings, vegetable, fruits and sugar etc.which shape is roll, slice and granule.
※   Detailbg

Automatic Salt Sugar Rice Grain Pea Nuts Cashew Sachet Packing Bagging Sealing Nuts Filling Machine With Cup Measuring 9

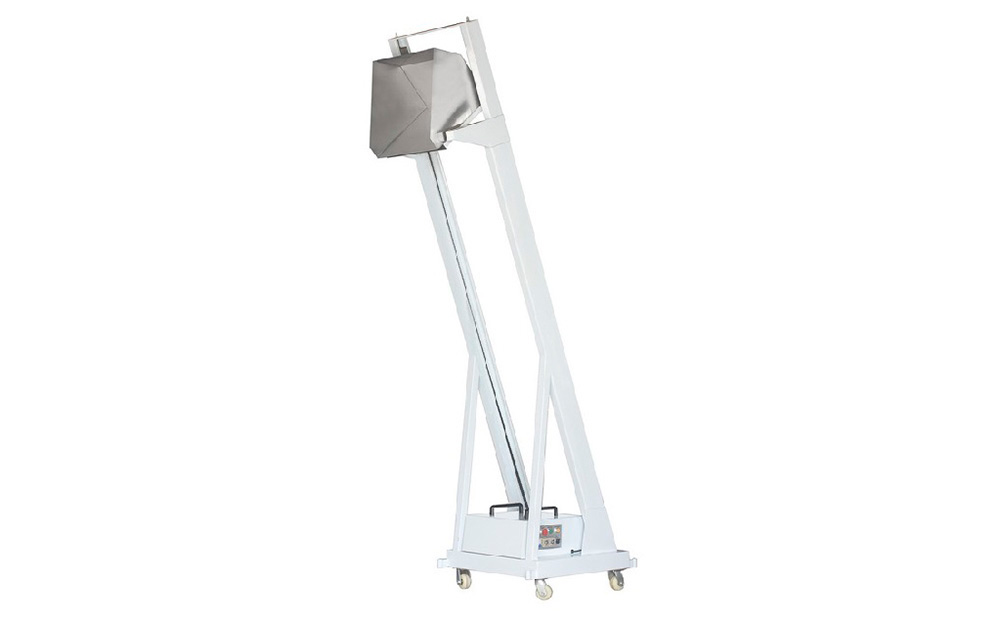

Hopper：304 stainless steel
Materilal：stainless steel/carbon steel
Conveying capacity：3-6m3/H
Three-phase AC voltage & frequency
220V/380V,50HZ
Power：0.45KW
Weight：150KG

Height：3700MM
Packing size: (L)3750mm*(W)1100mm*(H)1200mm

Automatic Salt Sugar Rice Grain Pea Nuts Cashew Sachet Packing Bagging Sealing Nuts Filling Machine With Cup Measuring 10

Vertial packing machine

Automatic filling and sealing together .

Master control circuit adopts imported PLC microcomputer with man-machine interface andfrequency control,making setting paramaters (to adjust bag length and width, packing speed,cutting position) convenient and quick and operation intuitive. Full implement the humanizesautomatic operation

Automatic Salt Sugar Rice Grain Pea Nuts Cashew Sachet Packing Bagging Sealing Nuts Filling Machine With Cup Measuring 11

※ Function

Automatic Salt Sugar Rice Grain Pea Nuts Cashew Sachet Packing Bagging Sealing Nuts Filling Machine With Cup Measuring 12

※ Product Certificate

Automatic Salt Sugar Rice Grain Pea Nuts Cashew Sachet Packing Bagging Sealing Nuts Filling Machine With Cup Measuring 13
