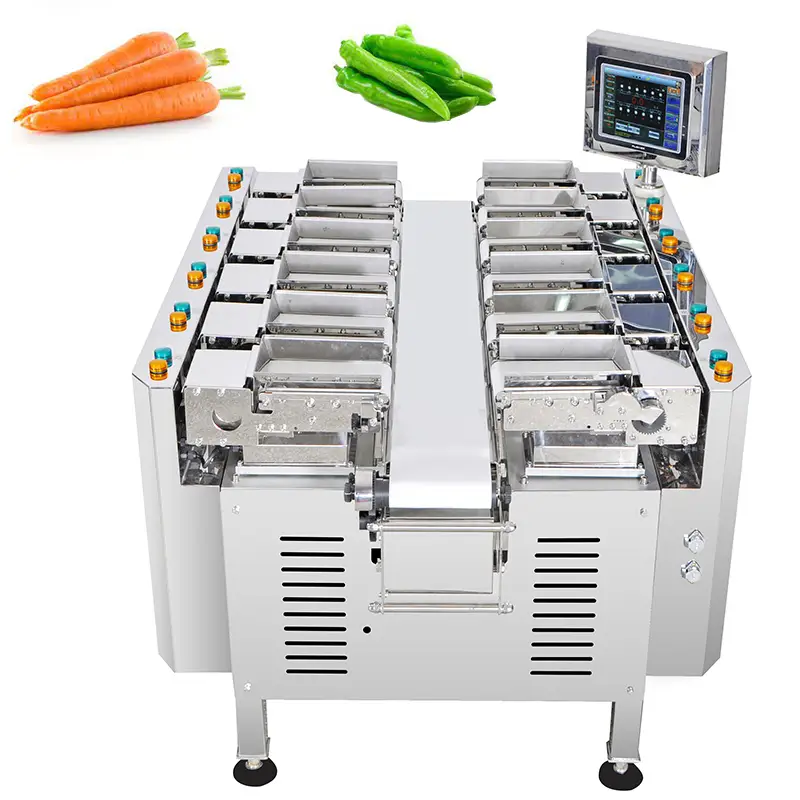

High precision pepper 12 head linear combination weighing machine carrot belt multihead weigher for fresh vegetable
Linear combination weighing machine for pepper, carrot, Chinese cabbage, potatoes, gourd and so on.
About Smart Weigh
Smart Package Beyond Expected
Smart Weigh is a global leader in high-precision weighing and integrated packaging systems, trusted by 1,000+ customers and 2,000+ packing lines worldwide. With local support in Indonesia, Europe, USA and UAE, we deliver turnkey packaging line solutions from feeding to palletizing.
Send Your Inqulry
More Choices
Model | SW-LC12 |
Weigh head | 12 |
Capacity | 10-1500 g |
Combine Rate | 10-6000 g |
Speed | 5-30 bpm |
Weigh Belt Size | 220L*120W mm |
Collating Belt Size | 1350L*165W |
Power Supply | 1.0 KW |
Packing Size | 1750L*1350W*1000H mm |
G/N Weight | 250/300kg |
Weighing method | Load cell |
Accuracy | + 0.1-3.0 g |
Control Penal | 9.7" Touch Screen |
Voltage | 220V/50HZ or 60HZ; Single Phase |
Drive System | Stepper Motor |
1. The belt weighing and conveyoring procedure is straightforward and lessens product scratching.
2. Appropriate for weighing and moving sticky and delicate materials.
3. Belts are simple to install, remove, and maintain. Waterproof to IP65 standards and easy to clean.
4. According to the dimensions and shape of the goods, the belt weigher's size can be specifically tailored.
5. Can be utilized in conjunction with conveyor, bags packaging machine, tray packing machines, etc.
6. Depending on the product's resistance to impact, the belt's moving speed can be adjusted.
7. To increase accuracy, the belt scale incorporates an automated zeroing feature.
8. Equipped with a heated electrical box to handle with high humidity.
It is mainly apply in semi-auto or auto weighing fresh/frozen meat, fish, chicken, vegetable and various kinds of fruit, such as sliced meat, lettuce, apple etc.
