1. The manufacture of Smart Weigh food packaging generally includes the following stages. They are mainly CAD/CAM design, procurement of raw materials, fabrication, welding, spraying, commissioning, and measurement.
2. The product is able to yield the best results in the shortest time. It can perform tasks at a high speed while maintaining its consistency.
3. This product will promote the standardization of work quality. It is able to make the work done very neat and accurate.

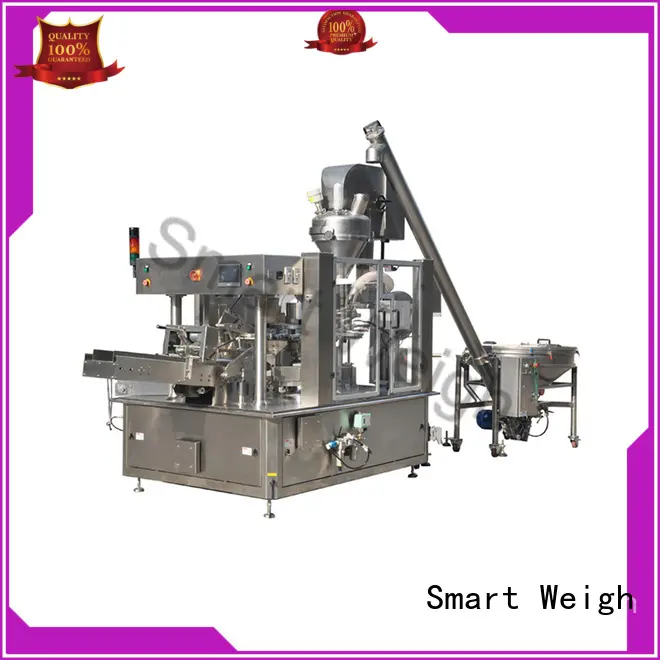

Model | SW-PL7 |
Weighing Range | ≤2000 g |
Bag Size | W: 100-250mm L:160-400mm |
Bag Style | Premade bag with/without zipper |
Bag Material | Laminated film; Mono PE film |
Film Thickness | 0.04-0.09mm |
Speed | 5 - 35 times/min |
Accuracy | +/- 0.1-2.0g |
Weigh Hopper Volume | 25L |
Control Penal | 7" Touch Screen |
Air Consumption | 0.8Mps 0.4m3/min |
Power Supply | 220V/50HZ or 60HZ; 15A; 4000W |
Driving System | Servo Motor |
※ Features
◆ Fully-automatically procedures from material feeding, filling and bag-making, date-printing to finished products output;
◇ Because of the unique way of mechanical transmission, so its simple structure, good stability and strong ability to over loading.;
◆ Multi-languages touch screen for various clients, English, French, Spanish, etc;
◇ Servo motor driving screw is characteristics of high-precision orientation, high-speed, great-torque, long-life, setup rotate speed, stable performance;
◆ Side-open of the hopper is made of stainless steel and is consist of glass,damp. material movement at a glance through the glass,air-sealed to avoid the leak, easy to blow the nitrogen, and the discharge material mouth with the dust collector to protect the workshop environment;
◇ Double film pulling belt with servo system;
◆ Only control touch screen to adjust bag deviation. Simple operation.
※ Application
It is suitable for smaller granule and powder, like rice, sugar, flour, coffee powder etc.
※ Product Certificate
Company Features
1. Smart Weigh Packaging Machinery Co., Ltd holds temporarily a leading position in weighing packing system field.
2. To be a more competent company, Smart Weigh always keeps introducing high-end technology.
3. Smart Weigh Packaging Machinery Co., Ltd has established the marketing, processing and service network with nationwide coverage and worldwide involvement. Welcome to visit our factory! Smart Weigh Packaging Machinery Co., Ltd aims to build its packaging automation systems series into an international famous brand. Welcome to visit our factory! Strengthening the capabilities of food packaging and service plays an important role in keeping sustainable development of Smart Weigh. Welcome to visit our factory!
-
