Offer auto weighing packing machine lines since 2012

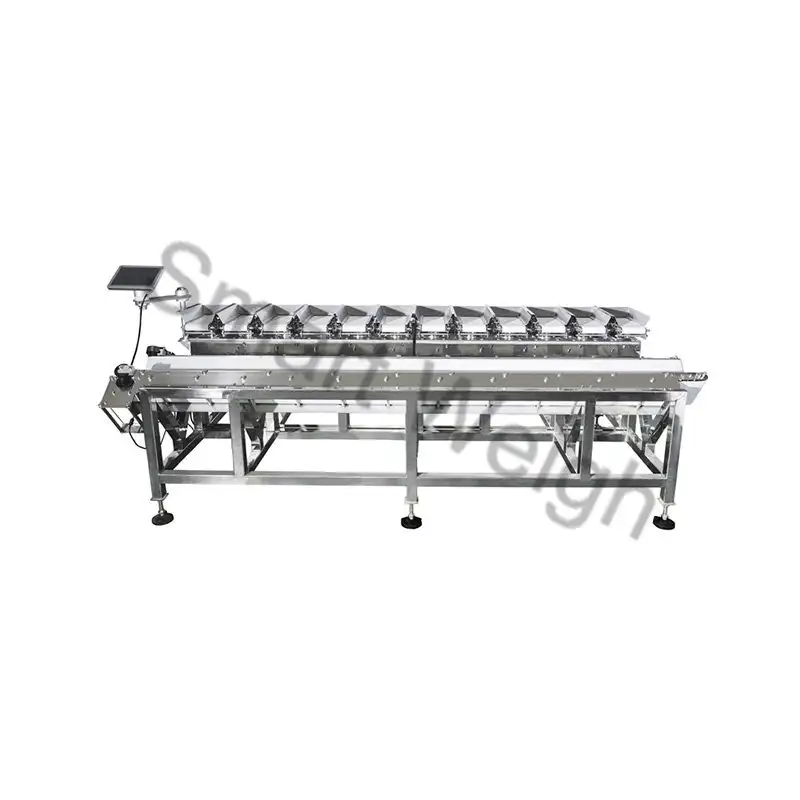

V Shape 12 Head Belt Linear Combination Weigher

The V shape collection belt is designed for the long stick vegetables(carrots).

Function:

weighing and filling

MOQ:

1 set

Certificate:

Material:

SUS304, SUS316, Carbon steel

Country of origin:

China

Brand:

Smart Weigh

Inquiry

Write a Review

About Smart Weigh

Smart Package Beyond Expected

Smart Weigh is a global leader in high-precision weighing and integrated packaging systems, trusted by 1,000+ customers and 2,000+ packing lines worldwide. With local support in Indonesia, Europe, USA and UAE, we deliver turnkey packaging line solutions from feeding to palletizing.

Send Your Inqulry

More Choices

Automatic Weighing And Packing Machine With Multihead Weighers For Frozen Dumpling Pelmeni

The Smart Weigh high speed full automatic weighing and packing machine with modular 16 head multihead weigher is engineered for delicate frozen dumplings,samosa ravioli and pelmeni.

Belt-Type Multihead Linear Combination Weighers for Fresh Frozen Salmon Cube Fillet Lump

Belt type multihead linear combination weigher adopts food-grade PU belt and full SUS304 stainless steel structure, it features gentle feeding to avoid seafood damage.

Bag-in-Bag Premade Pouch Packing Machine for Long Packets

Smart Weigh's bag-in-bag premade pouch packing machine weighs and packs long, individually sealed products into larger premade pouches. The system combines a multihead weigher and a rotary pouch packing machine, with the weighing hoppers, discharge chute and filling funnel designed around the shape of the inner packs.

This matched product path helps long packets move through weighing, discharge and pouch loading with fewer blockages and more reliable batch delivery.

Automatic Pillow Bag and Premade Pouches Multipack Wrapping Machine

Smart Weigh's automatic pillow bag multipack wrapping machine combines a bag collating unit with counting, grouping and film wrapping to turn individually sealed snack bags into finished multipacks. It automates the handling between the primary bagger and the outer wrapper, reducing manual bag arrangement and loading.

Designed for chips, biscuits, crackers and other bagged snacks, the system is configured around your filled bag dimensions, required pack quantity and production output.

Model	SW-LC12
Weigh head	12
Capacity	10-1500 g
Combine Rate	10-6000 g
Speed	5-30 bags/min
Weigh Belt Size	*220L120W mm**
Collating Belt Size	*1350L165W mm**
Power Supply	1.0 KW
Packing Size	*1750L1350W1000H mm*
G/N Weight	250/300kg
Weighing method	Load cell
Accuracy	+ 0.1-3.0 g
Control Penal	9.7" Touch Screen
Voltage	220V/50HZ or 60HZ; Single Phase
Drive System	Motor

※ Features

◆ Belt weighing and delivery into package, only two procedure to get less scratch on products;

◇ Most suitable for sticky & easy fragile in belt weighing and delivery,;

◆ All belts can be take out without tool, easy cleaning after daily work;

◇ All dimension can be customize design according to product features;

◆ Suitable to integrate with feeding conveyor & auto bagger in auto weighing and packing line;

◇ Infinite adjustable speed on all belts according to different product feature;

◆ Auto ZERO on all weighing belt for more accuracy;

◇ Optional index collating belt for feeding on tray;

◆ Special heating design in electronic box to prevent high humidity environment.

※ Application

It is mainly apply in semi-auto or auto weighing fresh/frozen meat, fish, chicken, vegetable and various kinds of fruit, such as sliced meat, lettuce, apple etc.

V Shape 12 Head Belt Linear Combination Weigher 2

※ Function

V Shape 12 Head Belt Linear Combination Weigher 3

※ Product Certificate

V Shape 12 Head Belt Linear Combination Weigher 4
