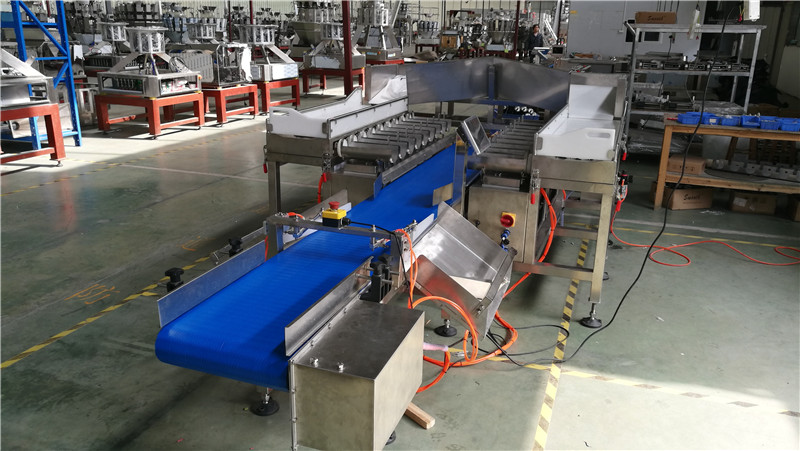

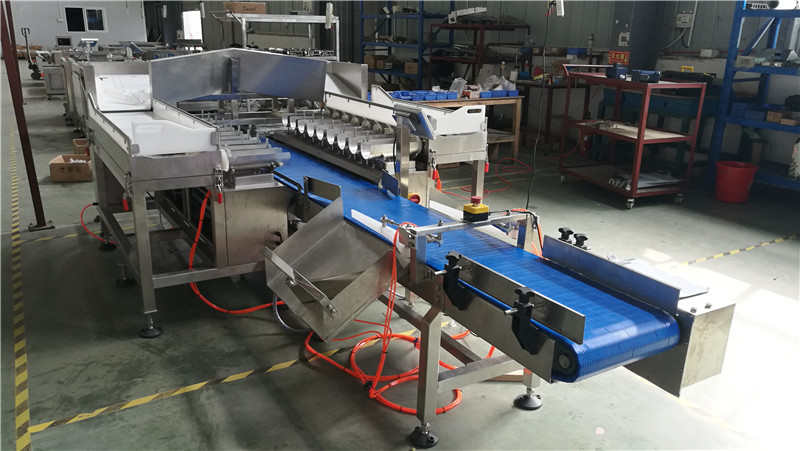

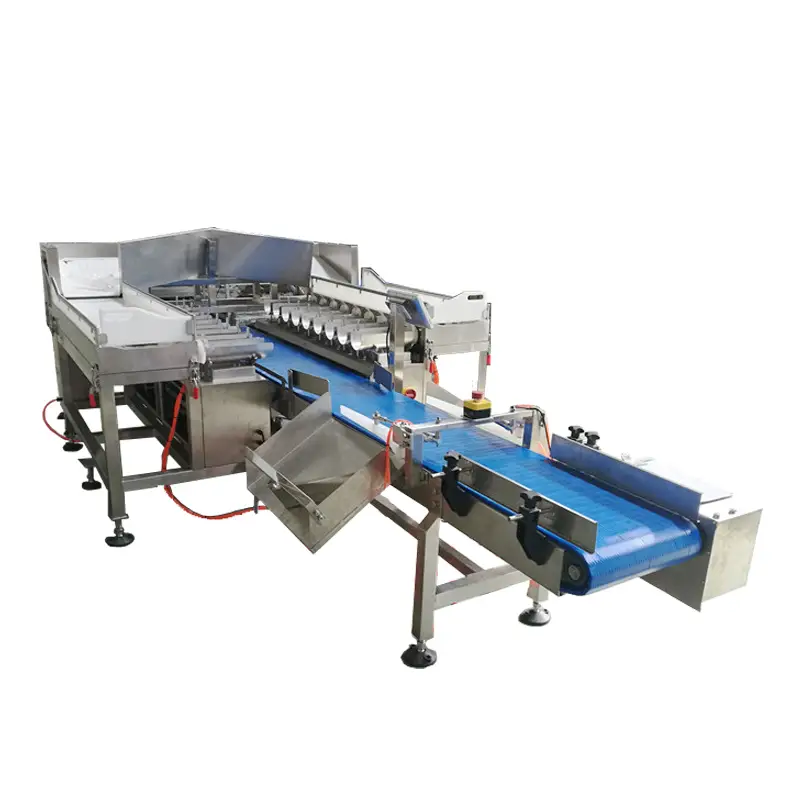

Frozen Fish Fillet Weigher 18 Head Linear Combination Weigher
Customized for frozen fish fillet
About Smart Weigh
Smart Package Beyond Expected
Smart Weigh is a global leader in high-precision weighing and integrated packaging systems, trusted by 1,000+ customers and 2,000+ packing lines worldwide. With local support in Indonesia, Europe, USA and UAE, we deliver turnkey packaging line solutions from feeding to palletizing.
Send Your Inqulry
More Choices
It is mainly applying in semi-auto or auto weighing fresh/frozen meat, fish, chicken.

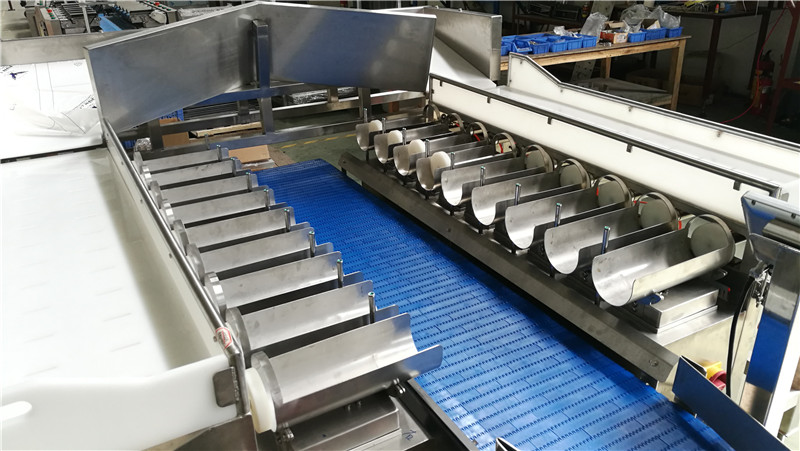

Hopper weighing and delivery into the package, only two procedures to get less scratch on products;

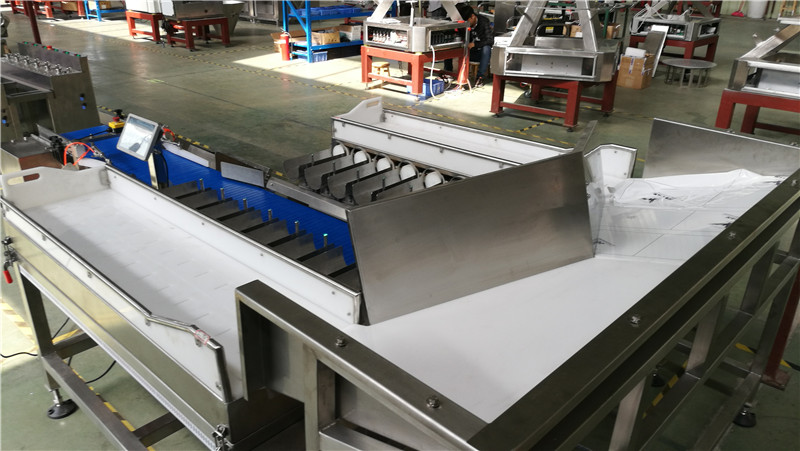

Include a storage hopper for convenient feeding;
IP65, the machine can be washed by water directly, easy cleaning after daily work;
All dimension can be customized design according to product features;
Infinite adjustable speed on belt and hopper according to different product feature;

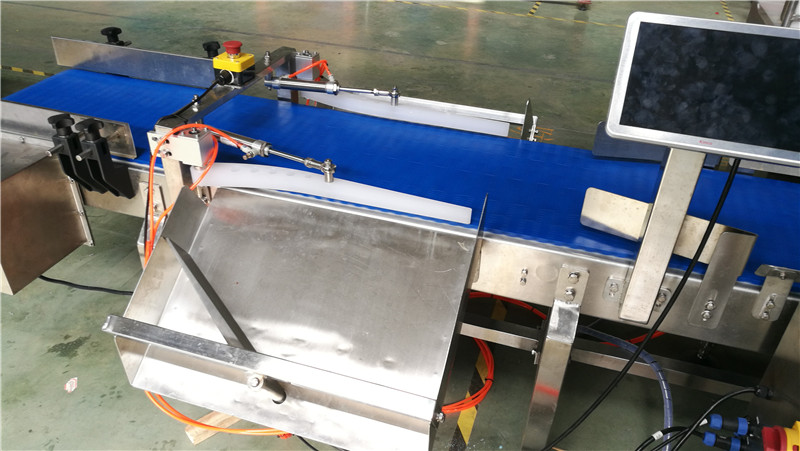

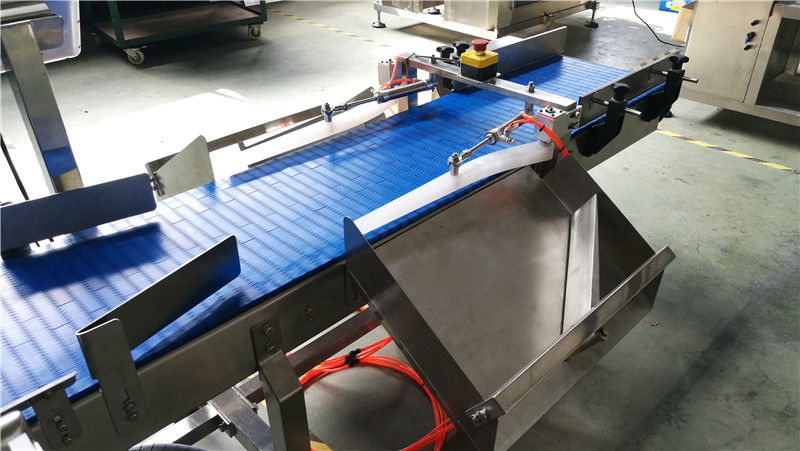

Rejection system can reject overweight or underweight products;
Optional index collating belt for feeding on a tray;
Special heating design in the electronic box to prevent high humidity environment.
| Model | SW-LC18 |
| Weighing Head | 18 hoppers |
| Weight | 100-3000 grams |
| Hopper Length | 280 mm |
| Speed | 5-30 packs/min |
| Power Supply | 1.0 KW |
| Weighing Method | Load cell |
| Accuracy | ±0.1-3.0 grams (depends on actual products) |
| Control Penal | 10" touch screen |
| Voltage | 220V, 50HZ or 60HZ, single phase |
| Drive System | Stepper motor |
 |  |
 |  |
 |  |
