Why choose gusset bag packaging machine?

×
Why choose gusset bag packaging machine?

Gusset bags can be stored upright to save space, have stricter standards for packaging and look very different from pillow bags. Compared to the traditional one, form fill seal gusset bag packaging machine is more in line with consumer demand.

Types of packing machine and bags
bg

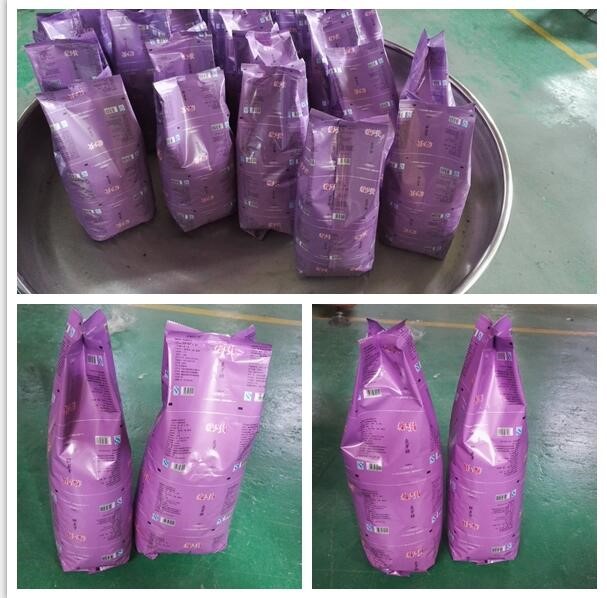

1. Side gusset bag (often two sides), is a type of packaging commonly used for coffee beans or tea products that may stand upright when filled with goods when placed on a table;

Why choose gusset bag packaging machine? 1Why choose gusset bag packaging machine? 2

2. Bottom gusset bag (just one bottom), often known as a stand-up pouch, is commonly used in most industries and may be stood up.

Why choose gusset bag packaging machine? 3Why choose gusset bag packaging machine? 4

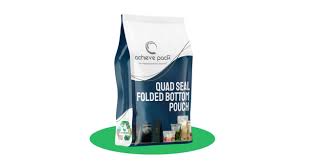

3. Quad seal bag, or flat bottom pouch. It is more expensive and complex than the first two options and has two sides (two sides) as well as a bottom gusset (one side) option.

Why choose gusset bag packaging machine? 5Why choose gusset bag packaging machine? 6










Specification
bg

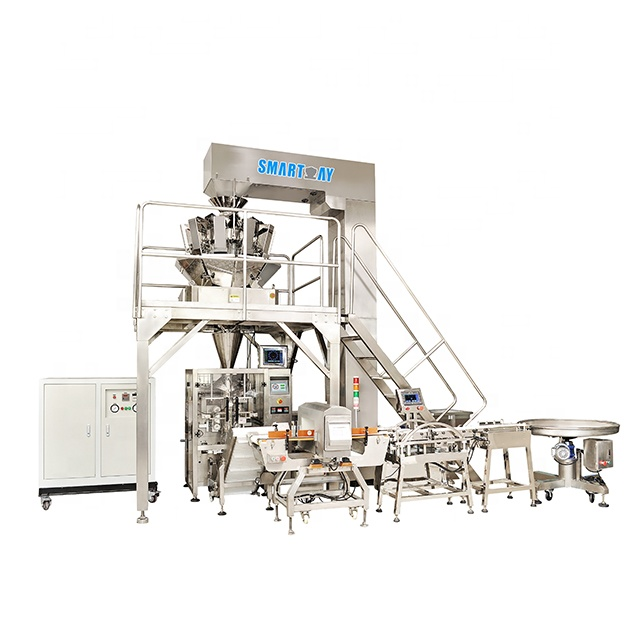

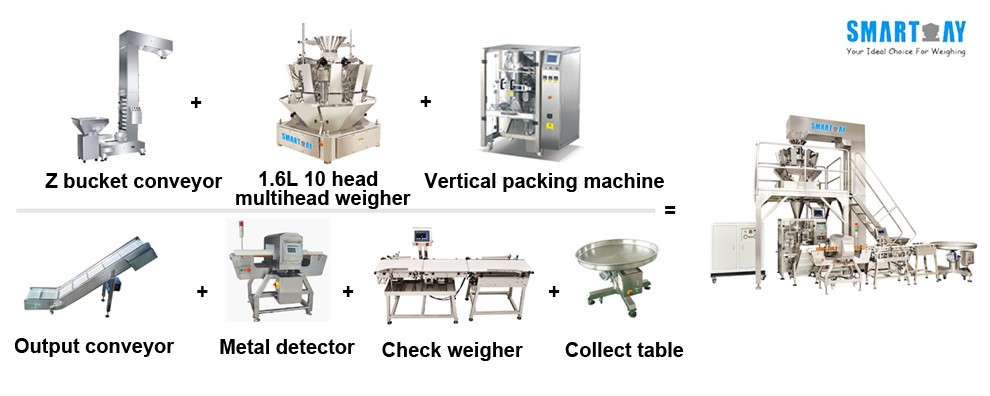

1. Vertical packing machine for side gusset bag

Why choose gusset bag packaging machine? 7

Model

SW-PL1

Weighing Range

10-5000 grams

Bag Size

120-400mm(L) ; 120-400mm(W)

Bag Style

Pillow Bag; Gusset Bag; Four side seal

Bag Material

Laminated film; Mono PE film

Film Thickness

0.04-0.09mm

Speed

20-100 bags/min

Accuracy

+ 0.1-1.5 grams

Weigh Bucket

1.6L or 2.5L

Control Penal

7" or 10.4" Touch Screen

Air Consumption

0.8Mps  0.4m3/min

Power Supply

220V/50HZ or 60HZ; 18A; 3500W

Driving System

Stepper Motor for scale; Servo Motor for bagging

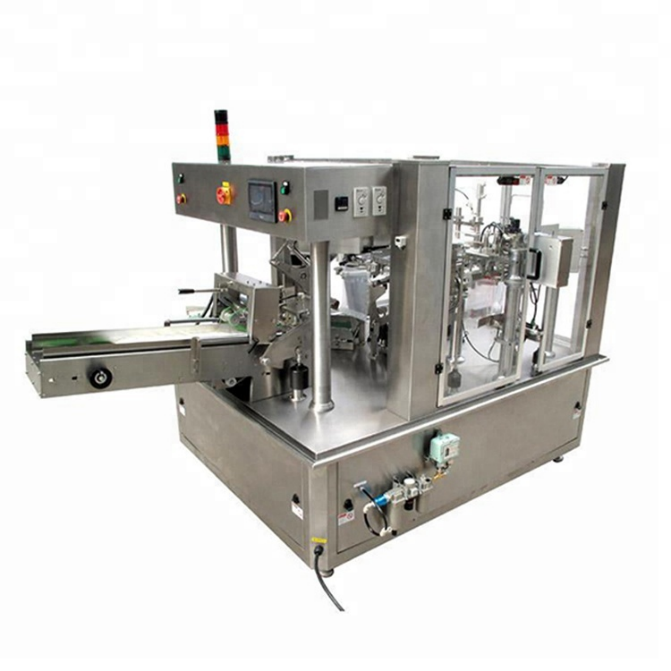

2. Rotary packing machine for bottom gusset bag

Why choose gusset bag packaging machine? 8

Model

SW-8-200

Working position

Eight-working position

Pouch material

Laminated film\PE\PP etc.

Pouch pattern

Stand-up, spout, flat

Pouch size

W:110-230 mm L:170-350 mm

Speed

≤35 pouches /min

Weight

1200KGS

Voltage

380V  3 phase  50HZ/60HZ

Total power

3KW

Compress   air

0.6m3/min(supply by user)

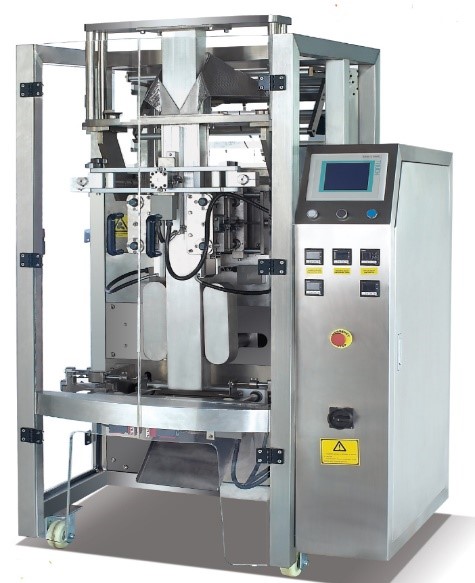

3. VFFS packing machine for quad seal bag

 Why choose gusset bag packaging machine? 9

Name

SW-730 Vertical   quad bag packing machine

Capacity

40 bag/min (it will be effected by film   material, packing weight and bag length and so on.)

Bag size

Front width: 90-280mm

Side width: 40- 150mm

Width of edge sealing: 5-10mm Length:   150-470mm

Film width

280- 730mm

Bag type

Quad-seal bag

Film thickness

0.04-0.09mm

Air consumption

0.8Mps 0.3m3/min

Total power

4.6KW/ 220V 50/60Hz

Features
bg

* A bag style that matches your premium products brand's image and satisfies your high demand.



* It automatically finishes feeding, measuring, bagging, sealing, and printing dates;



* Easily adapted to numerous internal or external measuring devices, easy to maintenance.



* Made of SUS304 stainless steel, it is strong and long-lasting, has an IP65 waterproof system, and is simple to maintain.

Application
bg

Gusset bags are typically used to package bulk foods because they offer an expanded bag face. Gusset bags can be used to package a variety of goods, including chocolate beans, banana chips, almonds, and candies. The most important thing is to use large gusset bags to hold vast amounts of material, whether it is in granular, powder, or another form.

Why choose gusset bag packaging machine? 10Why choose gusset bag packaging machine? 11Why choose gusset bag packaging machine? 12
