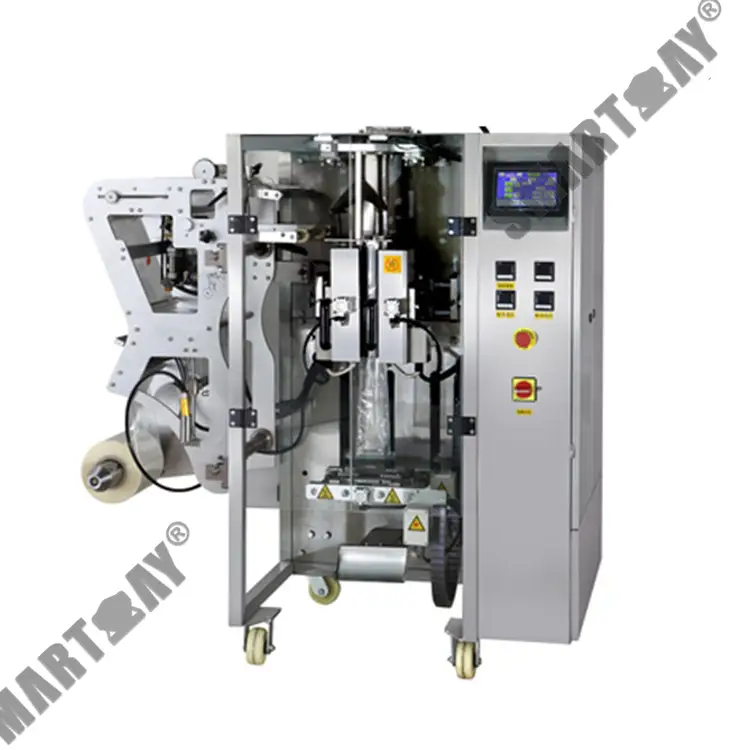

4 Side Seal Vertical Sachet Pouch Packaging Machine SW-P360 For Granulated Tiny Particles
About Smart Weigh
Smart Package Beyond Expected
Smart Weigh is a global leader in high-precision weighing and integrated packaging systems, trusted by 1,000+ customers and 2,000+ packing lines worldwide. With local support in Indonesia, Europe, USA and UAE, we deliver turnkey packaging line solutions from feeding to palletizing.
Send Your Inqulry
More Choices
This matched product path helps long packets move through weighing, discharge and pouch loading with fewer blockages and more reliable batch delivery.
Designed for chips, biscuits, crackers and other bagged snacks, the system is configured around your filled bag dimensions, required pack quantity and production output.
The feeding configuration is matched to the connected bags discharged by your primary packaging machine. Smart Weigh reviews the chain length, filled bag dimensions and required bundle arrangement before confirming the system.
Advantages:
Aesthetic & Integrity: Produces perfectly symmetrical 4-side seal pouches that enhanced structural strength compared to standard pillow packs.
High-Speed Precision: Integrated with advanced Omron PLC and temperature controls, it achieves rapid cycle times while maintaining airtight, leak-proof seals for fine grains.
Space-Efficient Design: Its compact vertical footprint maximizes floor space, making it ideal for facilities requiring high output in limited areas.
User-Friendly Operation: Features a multi-language color touch screen and an "open-frame" design for quick film changes and minimal maintenance downtime.
| NAME | SW-P360 4 Side Seal Sachet Vertical Packaging Machine |
| Packing speed | Max 40 bags/min |
| Bag size | (L)50-260mm (W)60-180mm |
| Bag type | 3/4 SIDE SEAL |
| Film width range | 400-800mm |
| Air consumption | 0.8Mpa 0.3m3/min |
| Main power/voltage | 3.3KW/220V 50Hz/60Hz |
| Dimension | L1140*W1460*H1470mm |
| The weight of switchboard | 700 kg |
Detailed Description
The temparature control center has been using omron brand for longer lifetime and meets international standards.
The emergency stop is using Schneider brand.
Back view of machine
A. The vertical sachet filling machine’s maximum packing film width is 360mm
B. There are separate film installation and pulling system, so it is much better for operation to use.
A. Optional Servo vacuum film pulling system makes the vertical packaging machine high quality, work stable and longer life
B. It has 2 side with transparent door for clear view, and machine in special design different from others.
Big color touch screen and can save 8 groups of parameters for different packing specification.
We can input two languages into the touch screen for your operating. There are 11 languages used in our vertical pouch packaging machines before. You can choose two of them in your order. They are English, Turkish, Spanish, French, Romanian, Polish, Finnish, Portuguese, Russian, Czech, Arabic and Chinese.※ Application
By integrating a volumetric cup filler, the SW-P360 vertical sachet packing machine ensures consistent weight accuracy and airtight packaging, providing a compact, professional, and leak-proof finish essential for maintaining product freshness and extending shelf life. In the food industry, it is widely used for portion-controlled items like sugar, salt, instant coffee, and seasonings. Its high sealing integrity also makes it ideal for safely bagging granular medicines, health supplements, and desiccants.
