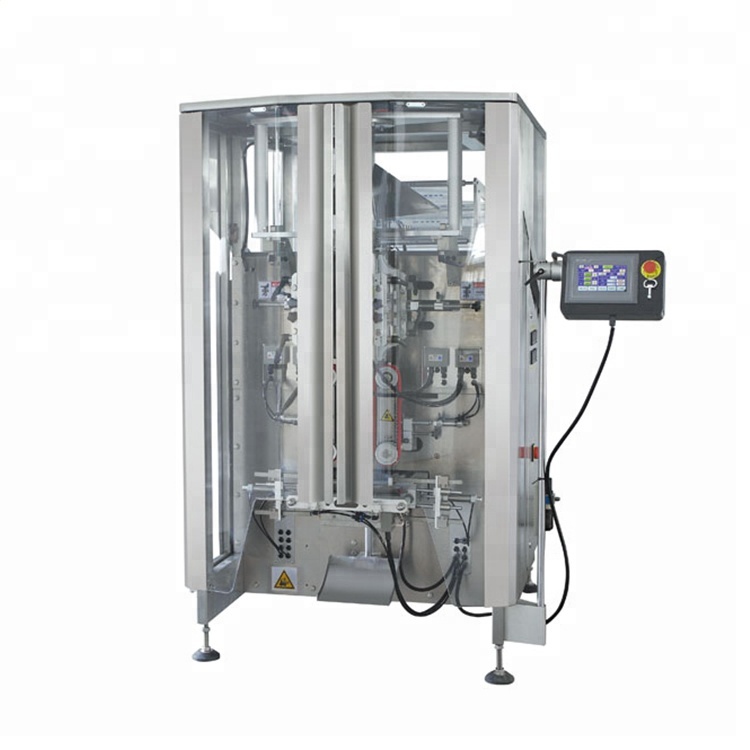

SW-T520 automatic pouch granule jelly vertical packing machine with quad bag
About Smart Weigh
Smart Package Beyond Expected
Smart Weigh is a global leader in high-precision weighing and integrated packaging systems, trusted by 1,000+ customers and 2,000+ packing lines worldwide. With local support in Indonesia, Europe, USA and UAE, we deliver turnkey packaging line solutions from feeding to palletizing.
Send Your Inqulry
More Choices
| NAME | SW-T520 VFFS quad bag packing machine |
| Capacity | 5-50 bags/min, depending on the measuring equipment, materials, product’s weight & packing film’ material. |
| Bag size | Front width: 70-200mm Side width: 30-100mm Width of side seal:5-10mm. Bag length:100-350mm (L)100-350mm(W) 70-200mm |
| Film width | Max 520mm |
| Bag type | Stand-up bag(4 Edge sealing bag), punching bag |
| Film thickness | 0.04-0.09mm |
| Air consumption | 0.8Mpa 0.35m3/min |
| Total powder | 4.3Kw 220V 50/60Hz |
| Dimension | (L)2050*(W)1300*(H)1910mm |
Features
* Luxury appearance win design patent.
* More than 90% spare parts are made of high quality stainless steel makes the machine longer life.
* Electrical parts adopt world famous brand makes the machine work stable & low maintenance.
* The new upgrade former makes the bags beautiful.
* Perfect alarm system to protect the workers safety & safe materials.
* Automatic packing for filling, coding, sealing etc.

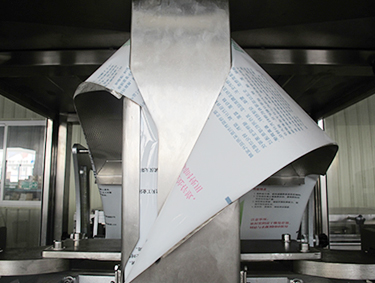

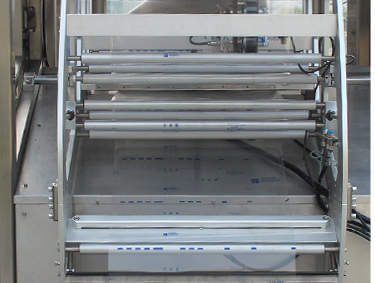

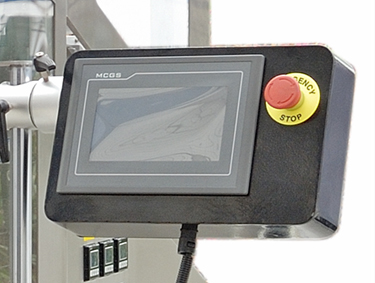

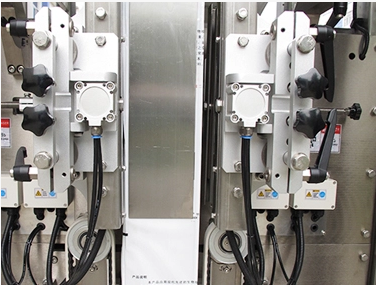

Details in main packing machine
Application
