Since 2012 - Smart Weigh is committed to helping clients increase productivity at a reduced cost.

eco-friendly multihead weigher certifications for food packing 1
eco-friendly multihead weigher certifications for food packing 2
eco-friendly multihead weigher certifications for food packing 3
eco-friendly multihead weigher certifications for food packing 4
eco-friendly multihead weigher certifications for food packing 5
eco-friendly multihead weigher certifications for food packing 1
eco-friendly multihead weigher certifications for food packing 2
eco-friendly multihead weigher certifications for food packing 3
eco-friendly multihead weigher certifications for food packing 4
eco-friendly multihead weigher certifications for food packing 5

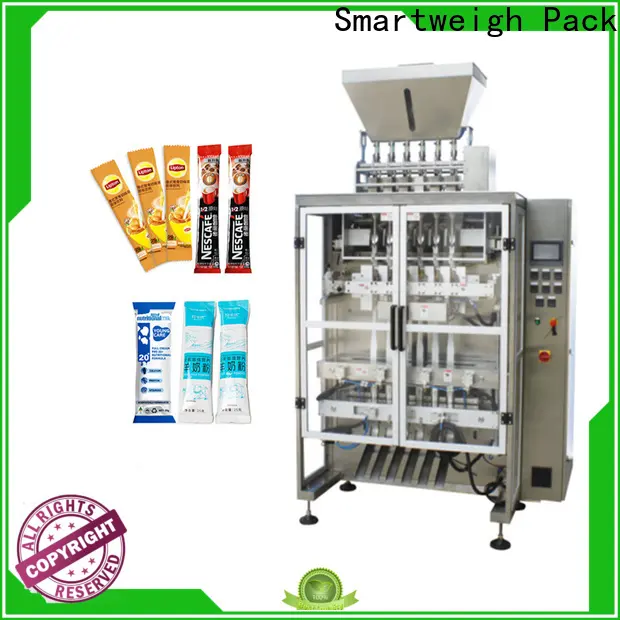

eco-friendly multihead weigher certifications for food packing

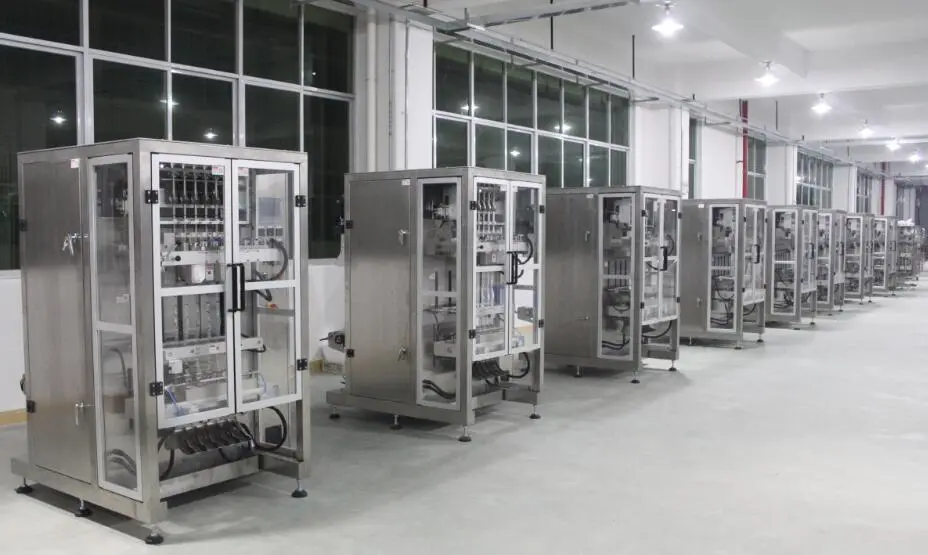

Our factory boasts a series of advanced and sophisticated facilities. They operate smoothly under systematic management. This enables us to constantly manufacture high-quality products.
brand
smart weigh
bag type
pillow bag
function
weighing filiing sealing
country of origin
china
material
sus304, sus316, carbonsteel
certificate
ce
loading port
zhongshan port, china
production
25 sets/month
moq
1
payment
tt。lc
Inquiry
Company Advantages
1. The outline of multihead weigher is reasonably designed. Smart Weigh packing machines are of high efficiency
2. The use of this product makes the work of the laborer become much easier and faster. It is an excellent assistant to the operators. The latest technology is applied in the production of the smart Weigh packing machine
3. multihead weigher represents the wisdom crystallization of our outstanding . Smart Weigh packing machine has easily cleanable smooth structure with no hidden crevices

  Product information

bg


Model:
MLP-320 Sealing and cutting layers - Lanes and packaging materials
MLP-480 Sealing and cutting layers - Lanes and packaging materials
MLP-800 Sealing and cutting layers - Lanes and packaging materials
Maximum film width
320mm
480mm
800mm
Bag size
Min.width 16mm
Length 60-120mm
Min.width 16mm
Length 80-180mm
Min.width 16mm
Length 80-180mm
Sealing and cutting layers
A-one layer/B- two layer /C- three layer
Lanes
3-12(Select the proper machine model according to the bag width, the total film width calculated)
Packaging materials
G - Granule / P-Powder / L-Liquid
Speed
(20-60)Cycles/min * Lanes (speed varies according to film material characteristics)
Film
Aluminum foil film/Laminated film, etc

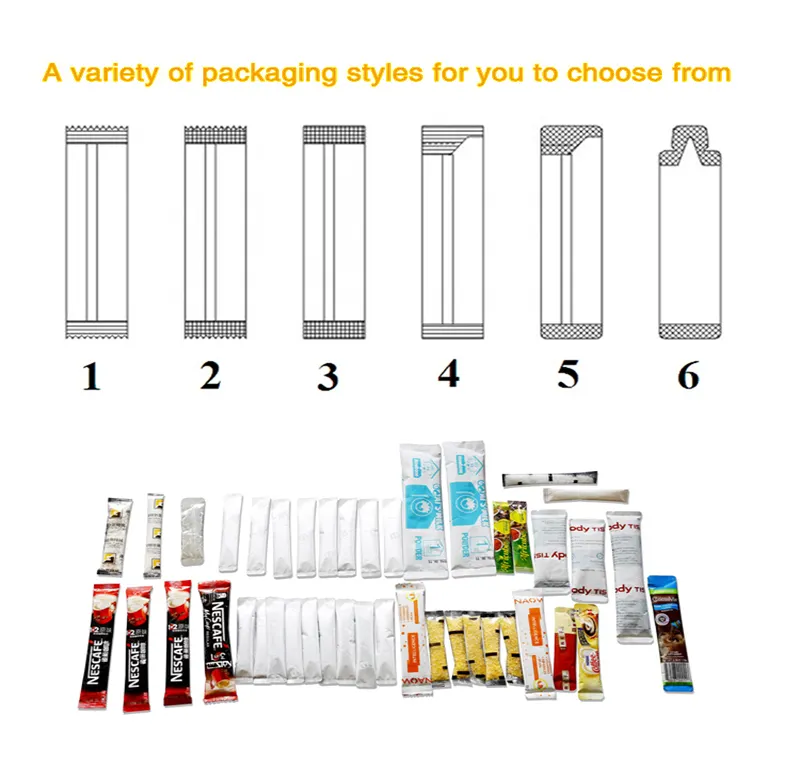

Bag format
Back seal
Cutting
Flat/Zig-Zag cut/Shape cut
Air pressure
0.6 mpa
Voltage power
220V 1PH 50HZ(Power varies by the lanes)

eco-friendly multihead weigher certifications for food packing 6

   Features

bg

1. Machine can automatically complete multi-lane products measuring, feeding, filling and bag forming, date code printing, bag sealing and fixed number bag cutting.


2. Advanced technology, humanized design, Japan "Panasonic" PLC+7 "touch screen control system, high degree of automation.


3. PLC control system combined with touch screen, can easily set and change the packing parameters. Daily production output and self-diagnostic machine error can be viewed directly from the screen.


4. Motor driven heat seal film pulling system, precise and stable.


5. High sensitive fiber optic photo sensor can automatically trace color mark accurately.


6. Adopt one-piece type bag former manufacture by CNC, to ensure that the film on each column the force is uniform, stable and does not run off.


7. With advanced film dividing mechanism and alloy round cutting blade, to achieve smooth film cutting edge and durable.


9. Use one-piece type film unwinding system, which can be more convenient to adjust the film roll position by the hand wheel, reduce the operation difficulty.


10. Whole machine is made of 304 stainless steel and aluminum alloy (accords with GMP standard)


11. Universal wheel and adjustable foot cup, convenient to change the equipment position and height.


12. If you need automatic refilling machine, finished product output conveyor, that can be options.

eco-friendly multihead weigher certifications for food packing 7

  Application

bg


Sealing
Spout bag with easy tear notch
Cutting
Round corners or other shapes (Zig-Zag/Flat cut as standard)
Cut off
String bag (Standard is single bag cut off)
Date code printer
Ribbon/Ink jet/TTO/Steel letters on seal
Exit conveyor
Belt conveyor/Chain conveyor/Lug conveyor, etc
Other
Empty bag detection, nitrogen flushing, anti-static bar, etc

eco-friendly multihead weigher certifications for food packing 8

eco-friendly multihead weigher certifications for food packing 9
eco-friendly multihead weigher certifications for food packing 10

※   Product  Certificate

bg


eco-friendly multihead weigher certifications for food packing 11




Company Features
1. Our factory boasts a series of advanced and sophisticated facilities. They operate smoothly under systematic management. This enables us to constantly manufacture high-quality products.
2. Smartweigh Pack grows up with your trust. Welcome to visit our factory!
