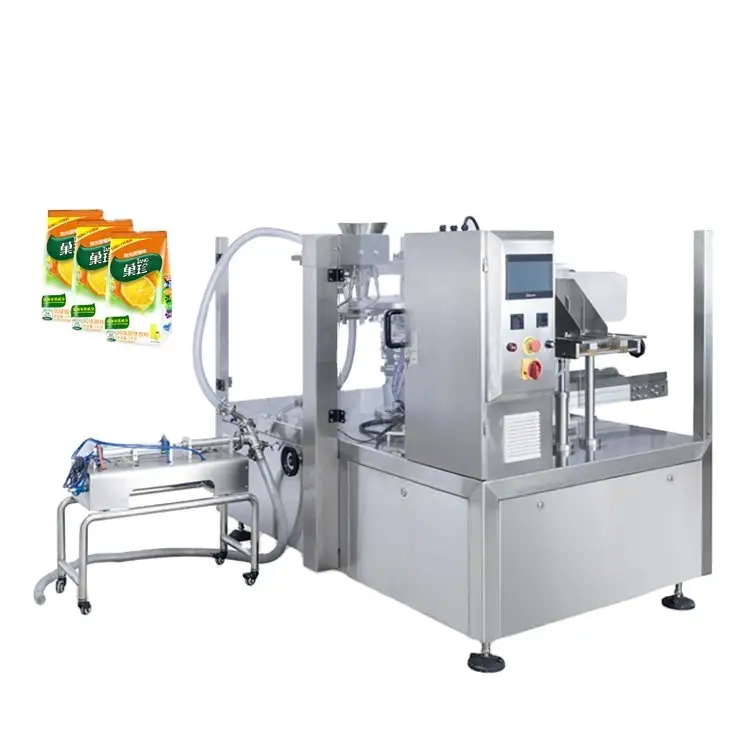

Full Automatic Fruit Juice /milk/water/Ketchup sachet Liquid Packaging Machine

SEND INQUIRY NOW

Function:: weighing filiing sealing

Country of origin:: China

Material:: SUS304,SUS316,Carbonsteel

Certificate:: CE

MOQ:: 1

Brand:: SMART Weigh

SEND INQUIRY NOW

Product Details

Main Features

1) Automatic rotary packing machine adopt precision indexing device and PLC to control each action and working station to make sure the machine operates easily and does accurately.
2) The speed of this machine is adjusted by frequency conversion with the range, and the actual speed depends on type of products and pouch..
3) Automatic checking system can check bag situation, filling and sealing situation.
The system shows 1.no bag feeding, no filling and no sealing. 2.no bag opening/opening error, no filling and no sealing 3.no filling, no sealing..
4) The product and pouch contact parts are adopted stainless steel and other advanced material to guarantee the hygiene of products.

We can customize the suitable one for you according to your requiredment.

Just Tell us : Weight or Bag Size required.

Item	8200	8250	8300
Packing Speed	Max 60 bags / min
Bag size	L100-300mm	L100-350mm	L150-450mm
Bag size	W70-200mm	W130-250mm	W200-300mm
Bag Type	Pre-made bags, Stand up bag, Three or Four-side sealed bag, Special-shaped bag
Weighing Range	10g~1kg	10~2kg	10g~3kg
Measurement Accuracy	≤±0.5 ~ 1.0%，depend on the measurement equipment and materials
Maximem bag width	200mm	250mm	300mm
Gas consumption	0.8Mpa 0.3m³/min
Total power/ voltage	1.5kw 380v 50/60hz	1.8kw 380v 50/60hz	2kw 380v 50/60hz
Air compressor	Not less than 1 CBM
Dimension	L1900W1400H1450mm		L2000W1500H1550
Machine Weight	1300kg		1500kg

application

bgbg

1) Automa1.Automatic Diagnosis and Alarm System

2.SUS 304

3.IP65 & Dustproof

4.No Manual Work Required

5.Stable Production

6.Speed Adjustment

7.Wide Range of Packing

8.Touch Screen with PLC

Complete system

Liquid Pump

Pneumatic liquid filling machine is driven by electricity and air compressor, is suitable for filling good liquidity products, such as water, oil, beverage, juice, drink, oil, shampoo, perfume,sauce, honey etc, widely applied to food, commodity, cosmetic,medicine, agriculture etc.

Paste Pump

The filling machine is used for quantitative dispensing of pharmaceutical liquids, refreshing drinks, cosmetics, etc. The whole
machine is made of high quality stainless steel, and the shape is novel and beautiful.

Rotary table

VThe conveyor is applicable for transferring bag from take off conveyor. 304SS materials , diameter 1200mm, we can make this machine according to your requirement.
