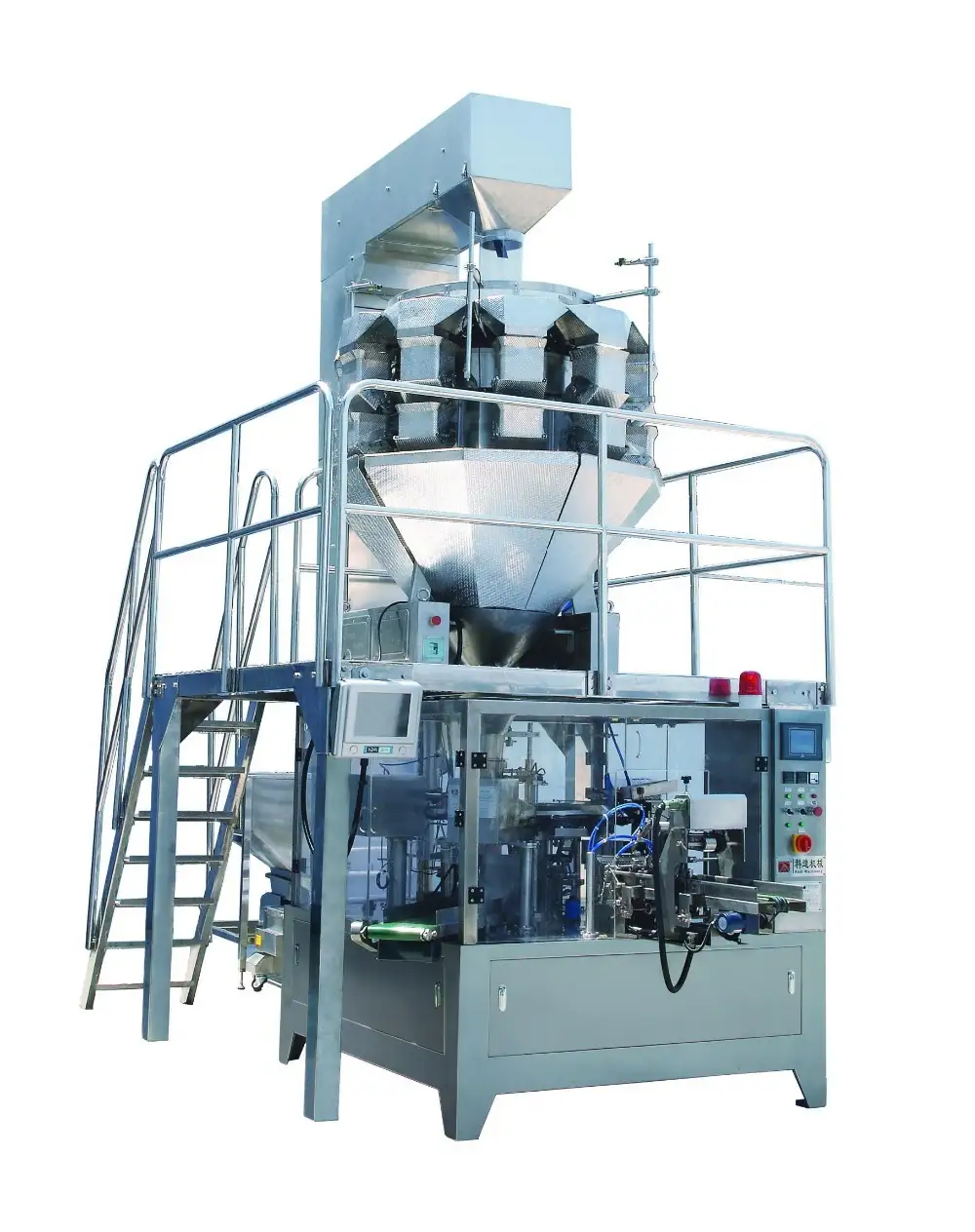

Rotary Packing Machine Automatic Premade Pouch Packing Machine SW-8-200
Smart weigh rotary premade pouch packaging machines are specialized in packing various forms application: the powder and granular, such as snack, candy, jerky, crystal monosodium glutamate, wash clothes powder, condiment, coffee, milk powder, feed, liquid products. With a rotary packing machine, you can streamline your packaging process, save time and increase productivity. The rotary pouch packing machine's user-friendly interface and precise control system ensure accurate filling and sealing of premade bags, minimizing waste and maximizing product integrity.
About Smart Weigh
Smart Package Beyond Expected
Smart Weigh is a global leader in high-precision weighing and integrated packaging systems, trusted by 1,000+ customers and 2,000+ packing lines worldwide. With local support in Indonesia, Europe, USA and UAE, we deliver turnkey packaging line solutions from feeding to palletizing.
Send Your Inqulry
More Choices
SW-8-200 Automatic Rotary Premade Pouch Packing Machine Form Fill Seal Bagger
Overview:
1. Rotary Pouch Packing Machine Application
Smart Weigh rotary premade pouch packing machine uses sturdy construction and cutting-edge technology to ensure reliable performance and long-lasting durability.
*Blocky materials: tofu cakes, fish, eggs, candies, red dates, cereals, chocolate, biscuits, peanuts, etc.
* Granules: crystal monosodium glutamate, granular medicines, capsules, seeds, chemicals, sugar, chicken essence, melon seeds, nuts, pesticides, chemical fertilizers.
*Powders: milk powder, glucose, MSG, condiments, washing powder, chemical raw materials, fine sugar, pesticides, fertilizers, etc.
*Liquid/paste categories: dish soap, rice wine, soy sauce, rice vinegar, juice, beverages, ketchup, peanut butter, jam, chili sauce, bean paste.
* Pickles, sauerkraut, kimchi, sauerkraut, radish, etc.
*Other packaging materials.
Rotary pouch packing machine mainly for premade bags packing, surely they can equip with different weighing filling systems to be a complete packing line, including auger filler, multi head weigher and liquid filler.
2. Rotary Packing Machine Working Procedure
1). Pouch conveyor feeding & pickup
Features: Smart Weigh Rotary Pouch Filling Machine
12)3 corner of the machine have START and EMERGENCY stop, user friendly mechanical design;
13)Base frame table can be washed directly after daily work.
Specification: Smart Weigh Rotary Premade Pouch Packaging Machine
Model | SW-8-200 |
Working position | eight-working position |
Pouch material | Laminated film\PE\PP etc. |
Pouch pattern | Premade bags, stand-up, spout, flat, doypack pouches |
Bag size | W:100-210 mm L:100-350 mm |
Speed | ≤50 pouches /min |
Weight | 1200KGS |
Voltage | 380V 3 phase 50HZ/60HZ |
Total power | 3KW |
Compress air | 0.6m3/min(supply by user) |
Options:

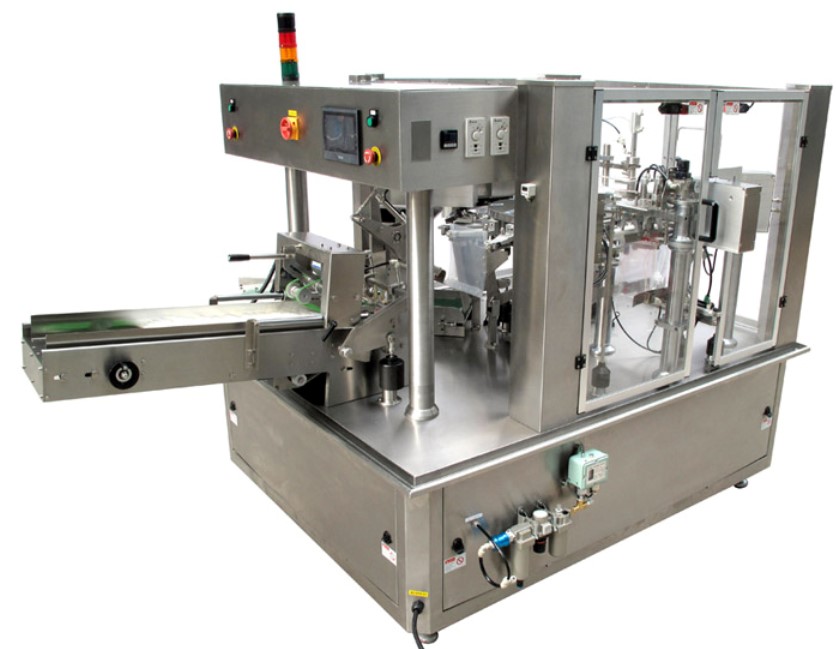

Function: Open the zipper on the empty bag. rotary pouch filling machine are designed for quick change of bags of various sizes, allowing you to change from one product to another with minimal setup time.
2)Vibration Device
Function: vibrating on the bottom of the pre-made bag while filling, ensure all products get inside the bag and good for sealing. Rotary packaging machine enables high-speed bag filling with the option to add custom stations within the packaging machine
3)Nitrogen Flush Device
Function: Injet nitrogen into pre-made bag. Rotary packing machine efficiently opens, fills, vacuums, weighs, seals and outputs bags
If you have ideas for custom Pouch Packaging Machine, please contact us!

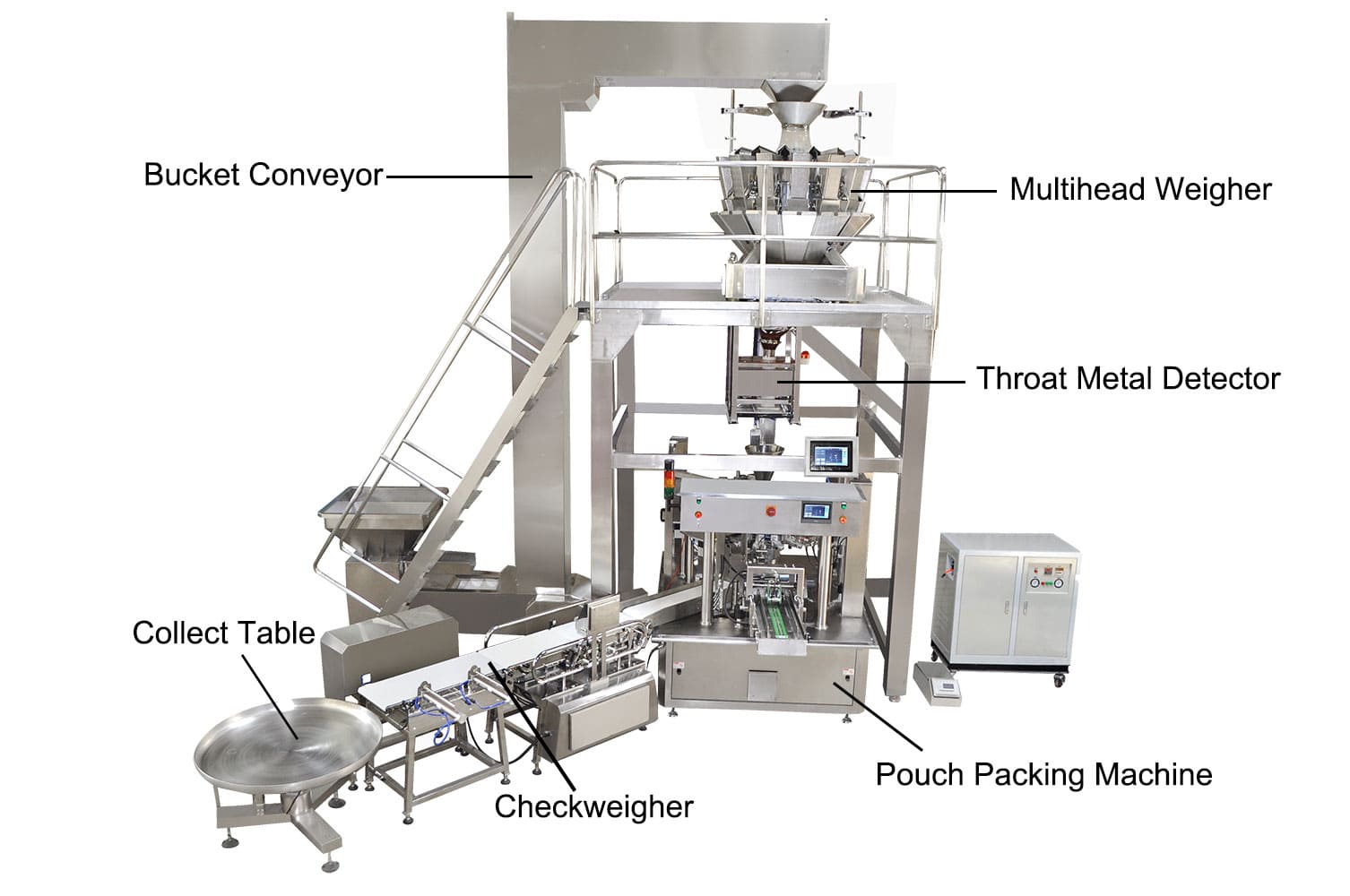

Multihead Weigher Rotary Premade Pouch Packaging Machine System

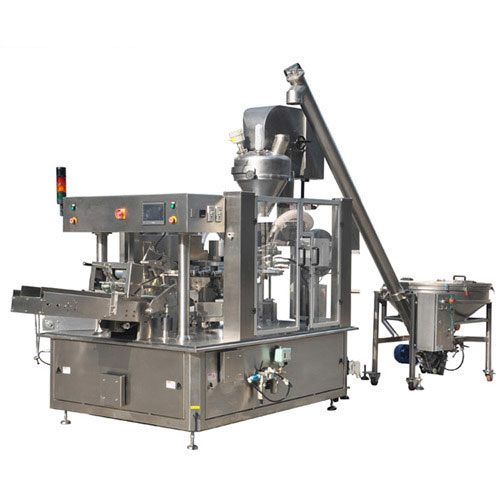

Powder Rotary Premade Pouch Packaging Machine System

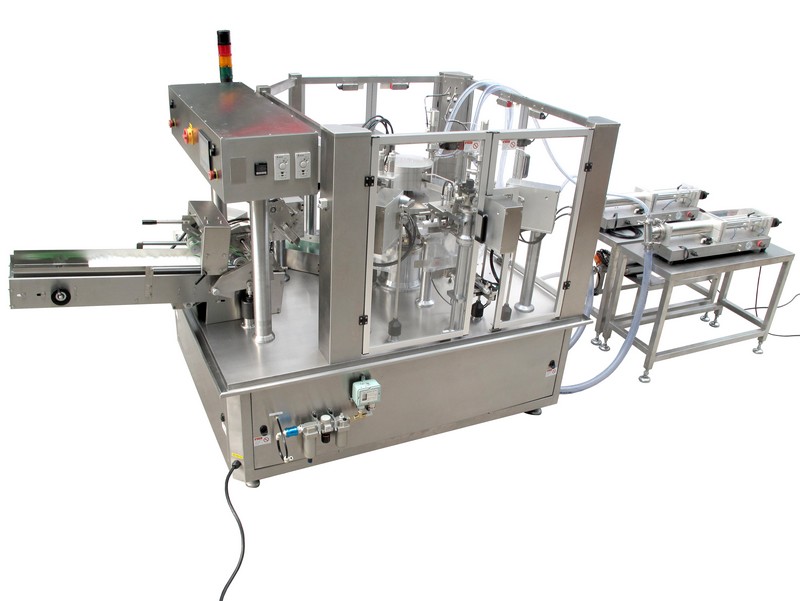

Liquid Filler With Rotary Premade Pouch Packaging Machine
