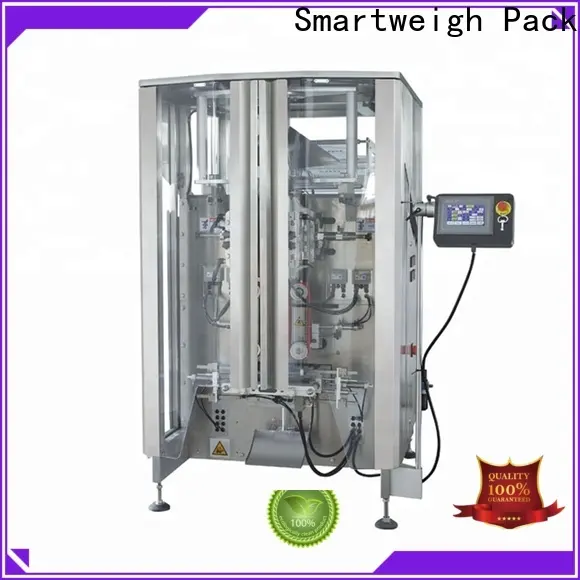

automatic quad bag vertical packaging machine
| NAME | SW-T520 VFFS quad bag packing machine |
| Capacity | 5-50 bags/min, depending on the measuring equipment, materials, product’s weight & packing film’ material. |
| Bag size | Front width: 70-200mm Side width: 30-100mm Width of side seal:5-10mm. Bag length:100-350mm (L)100-350mm(W) 70-200mm |
| Film width | Max 520mm |
| Bag type | Stand-up bag(4 Edge sealing bag), punching bag |
| Film thickness | 0.04-0.09mm |
| Air consumption | 0.8Mpa 0.35m3/min |
| Total powder | 4.3Kw 220V 50/60Hz |
| Dimension | (L)2050*(W)1300*(H)1910mm |
Features
bg
* Luxury appearance win design patent.
* More than 90% spare parts are made of high quality stainless steel makes the machine longer life.
* Electrical parts adopt world famous brand makes the machine work stable & low maintenance.
* The new upgrade former makes the bags beautiful.
* Perfect alarm system to protect the workers safety & safe materials.
* Automatic packing for filling, coding, sealing etc.
Details in main packing machine
bg
FILM ROLL
As film roll is large and heavier for wider width, It is quite better for 2 support arms to bear the weight of film roll, and easier for change. Film Roller Diameter can be 400mm maximum; Film Roller Inner Diameter is 76mm
SQUARE BAG FORMER
All bag former’s Collar are using Imported SUS304 dimple type for smooth filmpulling during packing automatically. This shape is for no back sealing quadro bags packing. If you need 3 bag types (Pillow bags, Gusset bags, Quadro bags into 1 machine, this is the right choice.
LARGER TOUCH SCREEN
We use WEINVIEW color touch screen in machine standard setting, 7’ inches standard, 10’ inch optional. Multi-languages can be input. Optional brand is MCGS, OMRON touch screen.
QUADRO SEALING DEVICE
This is 4 side sealing for stand up bags. The whole set takes more space,Premium bags can be forming and sealing just perfectly by this type packing machine.
