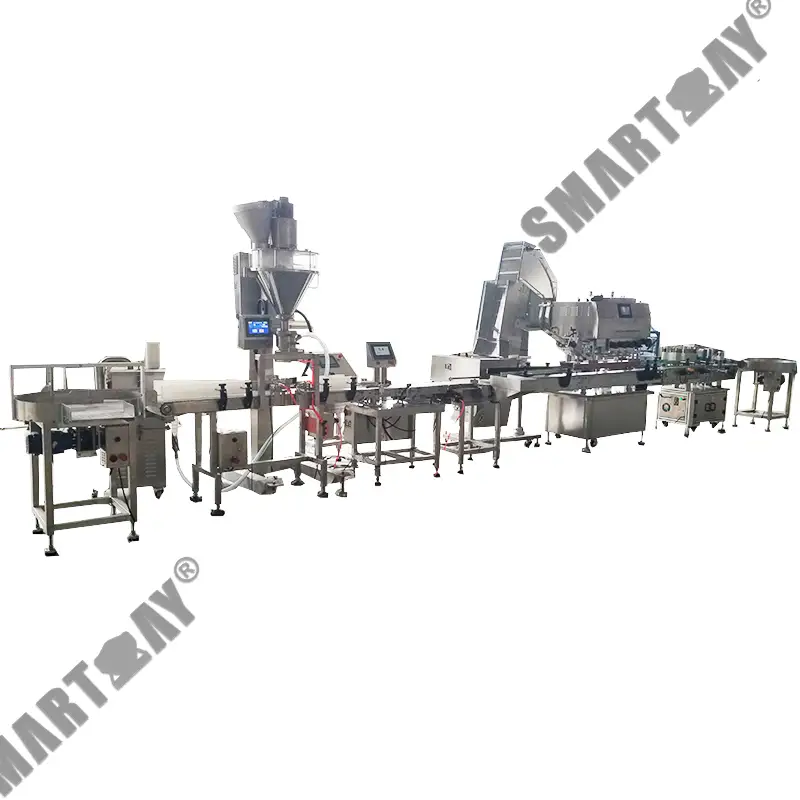

Bottle Can conveying filling capping sealing packaging machine with auger filler for protein powder

Automate the complete process from empty can sterilization to accurate protein powder filling, scoop insertion and can sealing.

Smart Weigh customizes each protein powder can filling line according to the powder characteristics, target weight, can dimensions, scoop size and required production speed. The integrated design reduces manual handling between processes while maintaining consistent filling and stable line operation.

1. Empty tin can feeding machine

Empty cans are automatically fed onto the conveyor and transferred through the sterilization station before filling.

The sterilization method can be selected according to the container material and the manufacturer’s hygiene requirements. This reduces manual contact with the inside of each can and provides a cleaner packaging process.

Final sterilization procedures should be validated according to the factory’s HACCP plan, production standards and local regulations.

2. Milk powder weighing filling machine

Before filling, a measuring scoop is automatically fed, oriented and placed inside each can.

The scoop inserting system is customized according to the scoop’s length, width, shape and required placement direction. This eliminates the repetitive work of manually inserting scoops and keeps the scoop-handling speed synchronized with the filling line.

Optional scoop detection can be added to identify cans with a missing or incorrectly inserted scoop before sealing.

3. Can Sealing

The filled can is transferred directly to the sealing station.

The sealing system is selected according to the container and closure, including:

• Can seaming for metal, aluminum or composite cans
• Foil sealing for suitable plastic containers
• Automatic lid or cap feeding
• Press-on or screw capping
• Combined foil sealing and capping

Once sealed, the cans can continue to an optional checkweigher, coding machine, labeling machine or secondary packaging system.

1.The machine is controlled by PLCsystem and touch screen.

2.The production capacity and automation are very high.So the labor cost can be saved.It is applicable to be part of packaging system.

3.Irrotional design is adopted for cans during the seaming and the processing accuracy is high.The seaming quality is superior other products.

4.The machine is applicable for sealing of various tin cans,aluminum cans,paper cans and all kinds of round cans.It is simple in operation and it is an ideal packing equipment of food,beverage,pharmaceutical and the other industry.

※   Machine details

bg









※   Application

bg

This automatic powder can filling line can be configured for:

• Whey protein powder
• Plant-based protein powder
• Collagen powder
• Meal replacement powder
• Milk powder
• Creatine powder
• Sports nutrition powder
• Dietary supplement powder
• Cocoa and nutritional drink powder
• Other food and nutrition powders

Because powders with similar names may behave differently during filling, sample testing is recommended before the machine configuration is finalized.

※   Why Choose an Integrated Line Instead of Separate Machines?

bg

Purchasing individual machines only solves part of the packaging process. Differences in conveyor height, operating speed, can spacing and control signals can create additional integration work at the factory.

An integrated protein powder filling line is designed around the complete process:

• Machines share start, stop, ready and fault signals
• Conveyor speeds and can spacing are matched
• Powder filling stops when no can is detected
• Scoop insertion follows the filled can automatically
• The sealer receives cans at a controlled interval
• Optional inspection equipment rejects nonconforming cans

This approach reduces manual transfers and makes the complete line easier to operate, test and maintain.
