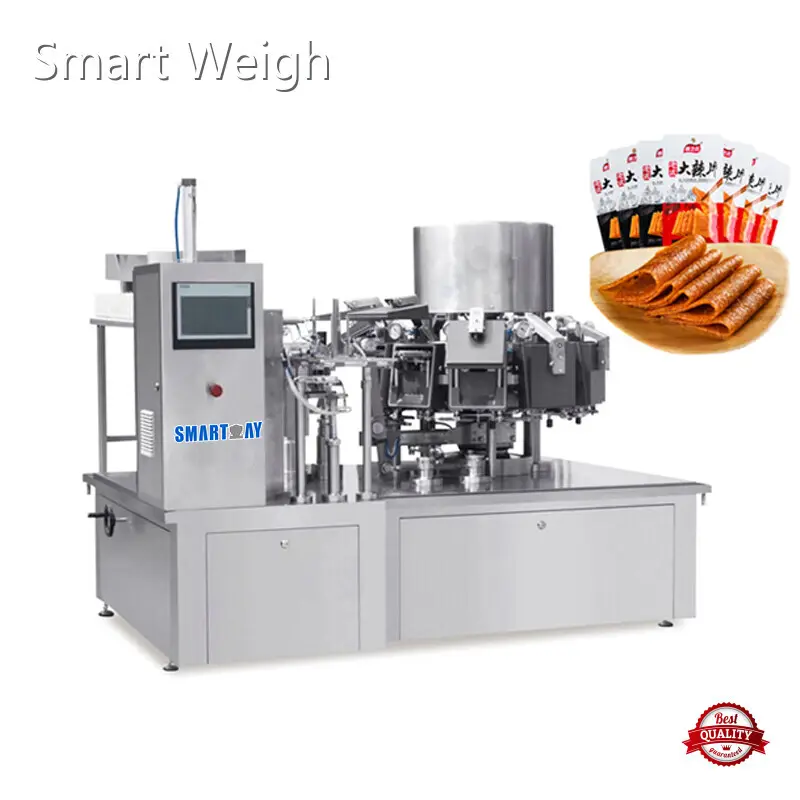

Product details of the candy packing machine
Product Overview
When it comes to comparing with other products, Smart Weigh candy packing machine is of greater appearance. The product is competitive in terms of the quality, performance, durability, etc. The candy packing machine produced by Smart Weigh is widely used in many industry sectors. We can tailor the candy packing machine to meet special needs of customers.
Product Information
The main differences between Smart Weigh's candy packing machine and similar products are as follows.
1.Adopt new type of integration to simplified single-axis matching inner wheel groove cam structure of main part. Adopting electronic numerical control to control the vacuum heating seal.2.When the bag is opened, it will be not be filled without heat sealing, when the bag is filled without material, the heating sealing station will not work, to avoiding wasting the bag.
3.Used the cylinder to control the sealing knife to run.
4.Full automatic metering filling and sealing.
5.The bag compartment has no bag automatic alarm.
6.The whole machine adopting mechanical control.
7.More reasonable overall size.
8.Wear resistant gears
9.Most of the whole machine adopt improved parts from Germary
|
Item
|
SW-120
|
SW-160
|
SW-200
|
|
Packing Speed
|
Max 60 bags / min
|
||
|
Bag size
|
L80-180mm
|
L80-240mm
|
L150-300mm
|
|
W50-120mm
|
W80-160mm
|
W120-200mm
|
|
|
Bag Type
|
Alumiem foil bag, Four-side sealed bag, Paper bag, Laminated bag, etc.
|
||
|
Weighing Range
|
10g~200g
|
15~500g
|
20g~1kg
|
|
Measurement Accuracy
|
≤±0.5 ~ 1.0%,depend on the measurement equipment and materials
|
||
|
Maximem bag width
|
120mm
|
160mm
|
200mm
|
|
Gas consumption
|
0.8Mpa 0.3m³/min
|
||
|
Total power/ voltage
|
10kw 380v 50/60hz
|
10kw 380v 50/60hz
|
10kw 380v 50/60hz
|
|
Air compressor
|
Not less than 1 CBM
|
||
|
Dimension
|
L2100*W1400
*H1700mm
|
L2500*W1550
*H1700mm
|
L2600*W1900*
H1700mm
|
|
Machine Weight
|
2000kg
|
2200kg
|
3000kg
|
