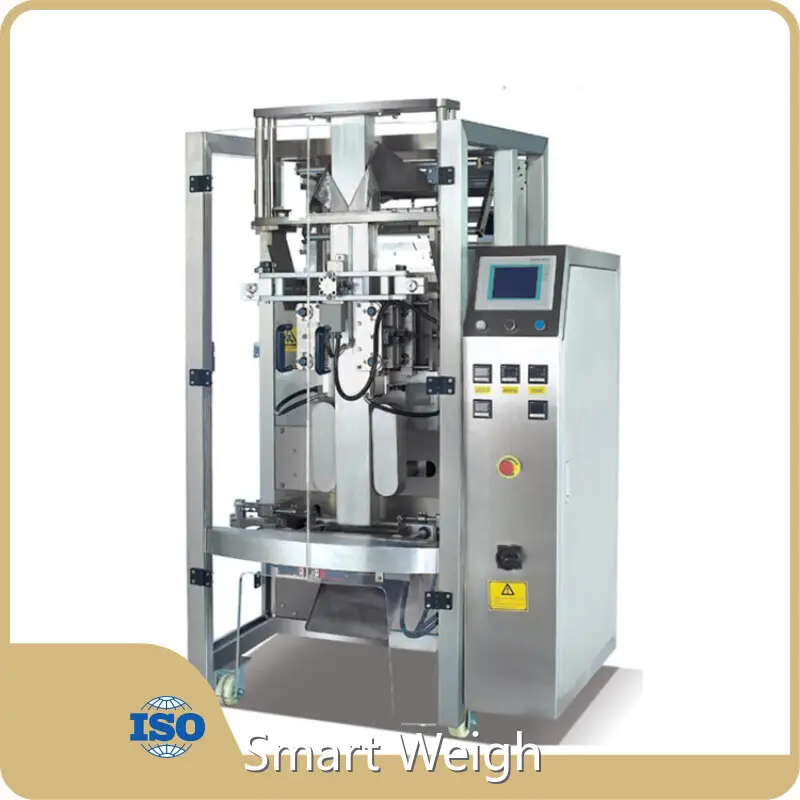

Product details of the vffs packaging machine
Product Overview
Smart Weigh vffs packaging machine is designed because we get inspired by the industrial trends. Professional testing allows vffs packaging machine to be optimal. Smart Weigh Packaging Machinery Co., Ltd. has strong customer service orientation and ability to interface with clients.
Product Description
With a focus on details, Smart Weigh strives to create high-quality vffs packaging machine.
| NAME | SW-730 Vertical quadro bag packing machin |
| Capacity | 40 bag/min (it will be effected by film material, packing weight and bag length and so on.) |
| Bag size | Front width: 90-280mm Side width: 40- 150mm Width of edge sealing: 5-10mm Length: 150-470mm |
| Film width | 280- 730mm |
| Bag type | Quad-seal bag |
| Film thickness | 0.04-0.09mm |
| Air consumption | 0.8Mps 0.3m3/min |
| Total power | 4.6KW/ 220V 50/60Hz |
| Dimension | 1680*1610*2050mm |
| Net Weight | 900kg |
* Attractive bag type to satisfy your high demand.
* It completes bagging, sealing, date printing, punching, counting automatically;
* Film drawing down system controlled by servo motor. Film rectifying deviation automaticlly;
* Famous brand PLC. Pneumatic system for vertical and horizontal sealing;
* Easy to operate, low maintenance, compatible with different internal or external measuring device.
* The way of bag making: the machine can make pillow-type bag and standing bag according to customer’s requirements. gusset bag, side-ironed bags can also be optional.



Company Advantages
Located in Smart Weigh Packaging Machinery Co., Ltd. is a professional provider. Our company mainly provides customers with Smart Weigh always abides by the principle of 'building a modern brand, developing constantly by innovation'. Based on the establishment of a long-term management mechanism, the production in industry would be developed continuously. Smart Weigh has a talents team consisting of senior industry experts, elites and R&D personnel. They provide strong technical support for our company. Smart Weigh insists on providing customers with comprehensive solutions based on their actual needs, so as to help them achieve long-term success.
Welcome to contact us.
