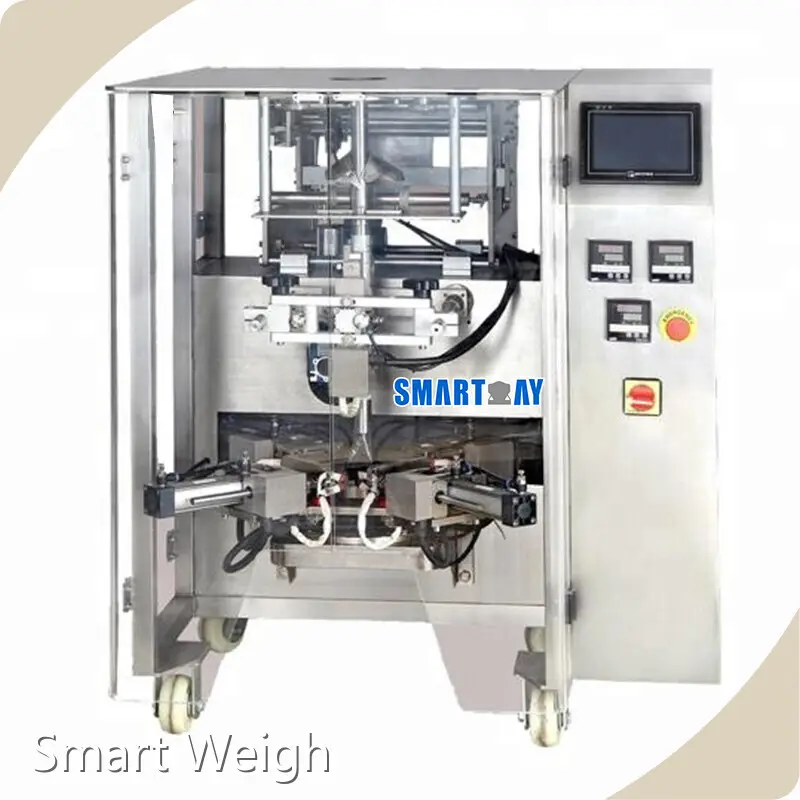

Product details of the vertical packing machine
Product Overview
Smart Weigh vertical packing machine is manufactured as per the industry laid guidelines. In line with international quality standards, the quality of this product is more reliable. Our vertical packing machine is widely used in industry. Smart Weigh Packaging Machinery Co., Ltd. has introduced advanced management method of ISO9000.
Product Introduction
Compared with other products in the same industry, Smart Weigh's vertical packing machine has the following characteristics.
New exterior appearance and combined type of frame are made the machine become more precision on the whole, The electric box which can be moved combined to the whole machine handily as well as the touch screen does.The Servo Pulling Film System comprises the vacuum pump and planetary gear reductor. It works stably and has long performance life.
| Model | SW-P25 VFFS packing machine
|
| Max film width | 250mm |
| Accuracy | ≤±1.5% |
| Die way | Single pull |
| Max packing speed | 50 bags/min |
| Film thickness | 0.04--0.09mm |
| Type of bag making | Triangle bag |
| Bag size | (L)40-105(w)30-85mm |
| Voltage | 1.7kw, 220v, 50/60HZ |
| Air consumption | 0.8Mps 0.3m³/min |
| Net weight | 250KG |
| Dimension | (L)990X(W)990X(H)1085mm |
| Package material | BOPP/CPP/VMCPP,BOPP/PE,PET/VMPET, PE,PET/PE,etc |
Once we adjust the former well, you only need to take out the handles and don't need to adjust the former again. It is very easy and convenient for changing it when you have a few sets of bag formers for different bag sizes.
But in our professional opinion, we don't suggest our customer to use more than 3 sets of bag formers in one machine. You need to change the former often. If the bag sizes are not too much different, you can change the bag length in order to change the bag volume. It is very easy for changing the bag length by the touch screen. This bag former we use dimple imported stainless steel 304 to better for pulling.
It is adopted the air shaft instead of the normal mechanical shaft. It makes the time and way of film roll replacement easier. It only needs a little compressed air for its charging. When you take out the used out film roll, you only need to press the button in the end of the shaft and take out the empty film roll.
Big color touch screen and can save 8 groups of parameters for different packing specification.
We can input two languages into the touch screen for your operating. There are 11 languages used in our packing machines before. You can choose two of them in your order. They are English, Turkish, Spanish, French, Romanian, Polish, Finnish, Portuguese, Russian, Czech, Arabic and Chinese.
