Pet Food Packing Machine For Dog Food Cat Food
The dog food packing machine is integrated multihead weigher, which is higher speed and accuracy
About Smart Weigh
Smart Package Beyond Expected
Smart Weigh is a global leader in high-precision weighing and integrated packaging systems, trusted by 1,000+ customers and 2,000+ packing lines worldwide. With local support in Indonesia, Europe, USA and UAE, we deliver turnkey packaging line solutions from feeding to palletizing.
Send Your Inqulry
More Choices
A pet food bagging machine is a specialized industrial equipment designed to efficiently and hygienically package various types of pet food products, such as dry kibble, treats, and supplements. The primary objective of this machine is to ensure the pet food remains fresh, retains its nutritional value, and adheres to stringent quality and safety standards throughout its store shelves. With the development of the times, pet treats packaging machines are widely used in pet food industry.
Application：organic pet foods, pet treats, dry pet foods.
Bag type：pillow bag，pillow bag with gusset

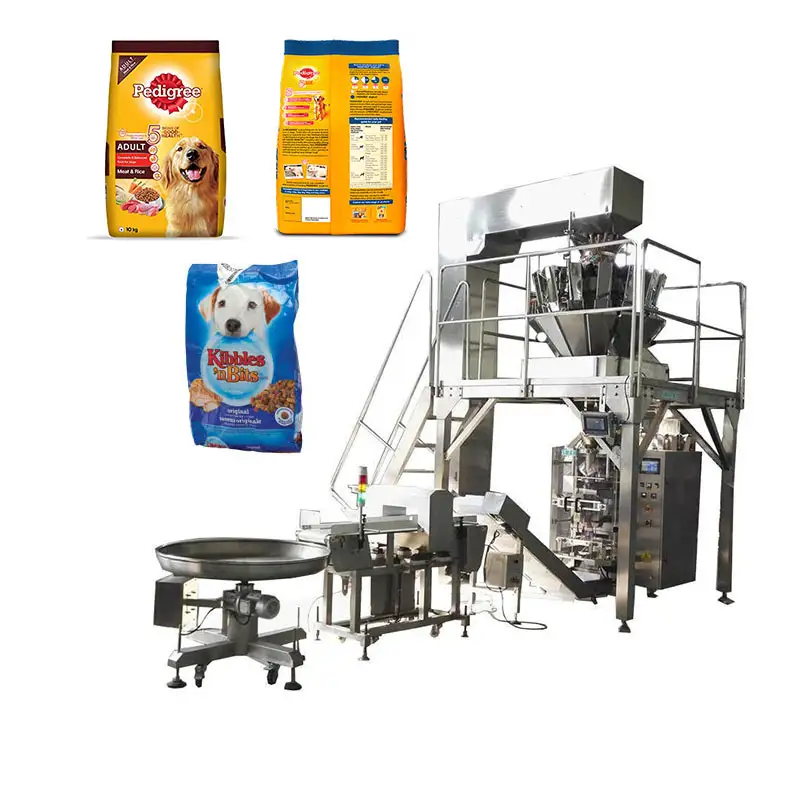

The pet food packaging machine system is composed of a Z-type conveyor, a multi-head weigher, a platform, a vertical packaging machine, a output conveyor, a rotary table.
Optionally equipped with checkweigher, metal detector, nitrogen generator.
Model | SW-PL1 |
System | Multihead weigher vertical packing system |
Application | Granular product |
Weigh range | 10-1000g (10 head); 10-2000g (14 head) |
Accuracy | ±0.1-1.5 g |
Speed | 30-50 bags/min (normal) 50-70 bags/min (twin servo) 70-120 bags/min (continuous sealing) |
Bag size | Width=50-500mm, length=80-800mm (Depends on packing machine model) |
Bag style | Pillow bag, gusset bag, quad-sealed bag |
Bag material | Laminated or PE film |
Weighing method | Load cell |
Control penal | 7” or 10”touch screen |
Power supply | 5.95 KW |
Air consumption | 1.5m3/min |
Voltage | 220V/50HZ or 60HZ, single phase |
Packing size | 20”or 40”container |

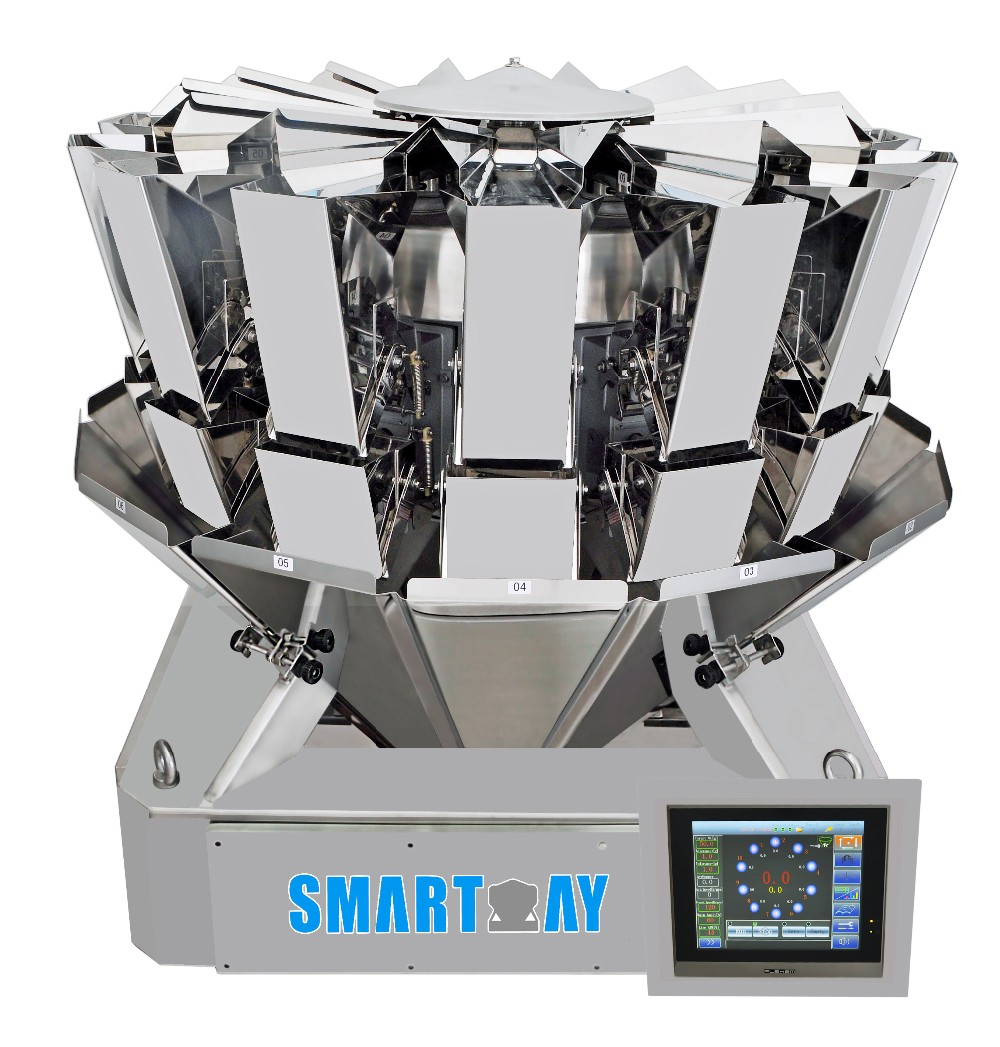

14 heads multihead weigher
Features
l IP65 waterproof, use water cleaning directly, save time while cleaning;
l Modular control system, more stability and lower maintenance fees;
l Production records can be checked at any time or download to PC;
l Load cell or photo sensor checking to satisfy different requirements;
l Preset stagger dump function to stop blockage;
l Design linear feeder pan deeply to stop small granule products leaking out;
l Refer to product features, select automatic or manual adjust feeding amplitude;
l Food contact parts disassembling without tools, which is easier to clean;
l Multi-languages touch screen for various clients, English, French, Spanish, etc.
Vertical packing machine
Application
Suitable for many kinds of measuring equipments, and film in roll forming and sealing, mainly for food and non-food industry, such puffy food, , peanut, popcorn, cornmeal seed, sugar, nails and salt etc.
Features
l Mitsubishi PLC control system, more stable and accuracy output signal, bag-making, measuring, filling, printing, cutting, finished in one operation;
l Separate circuit boxes for pneumatic and power control. Low noise, and more stable;
l Film-pulling with servo motor for precision, pulling belt with cover to protect moisture;
l Open door alarm and stop machine running in any condition for safety regulation;
l Film centering automatically is available (Optional) ;
l Only control touch screen to adjust bag deviation. Simple operation;
l Film in roller can be locked and unlocked by air, convenient while change film;
Smart Weigh Packaging Machinery is dedicated in completed weighing and packaging solution for foods packing industry. We are an integrated manufacturer of R&D, manufacturing, marketing and providing after-sale service. We are focusing on auto weighing and packing machine for snack food, agricultural products, fresh produce, frozen food, ready food, hardware plastic and etc.
1. How can you meet our requirements and needs well?
We will recommend the suitable model of the machine and make a unique design based on your project details and requirements.
2. Are you a manufacturer or trading company?
We are a manufacturer; we are specializing in packing machine line for many years.
3. What about your payment?
—T/T by bank account directly
—L/C at sight
4. How can we check your machine quality after we place an order?
We will send the photos and videos of the machine to you to check their running situation before delivery. What’s more, welcome to come to our factory to check the machine on your own
5. How can you ensure you will send us the machine after the balance paid?
We are a factory with a business license and certificate. If that is not enough, we can make the deal through trade assurance service on Alibaba or L/C payment to guarantee your money.
6. Why we should choose you?
—Professional team 24 hours provide service for you
—15 months warranty
—Old machine parts can be replaced no matter how long you have bought our machine
—Oversea service is provided.
