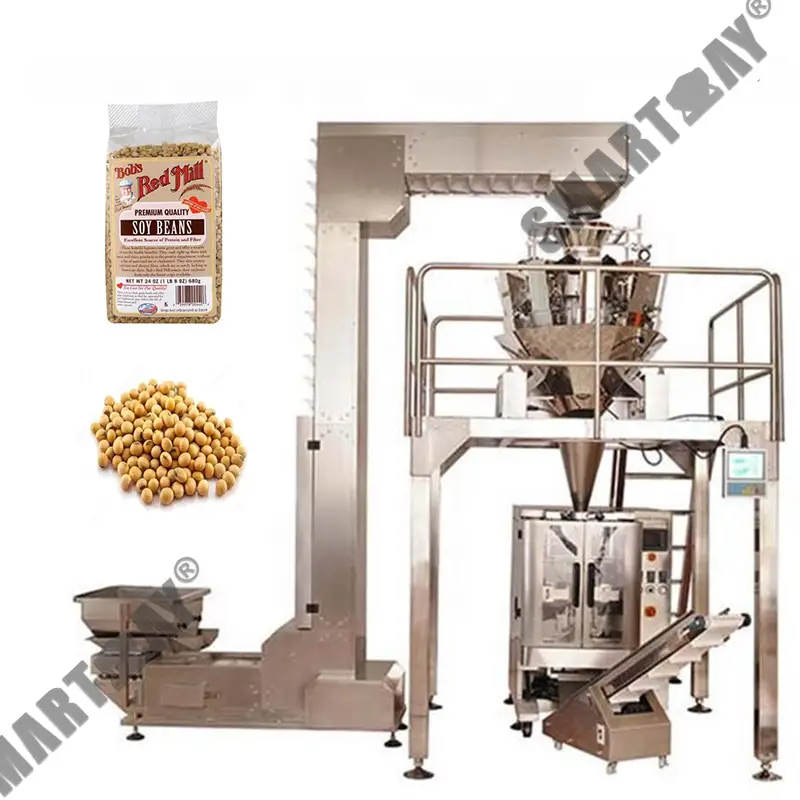

Automatic Legumes Pulses Packing Machine with 14 Heads Multihead Weigher
Vertical packing machine with multihead weigher to weigh and pack legums and pulses.
About Smart Weigh
Smart Package Beyond Expected
Smart Weigh is a global leader in high-precision weighing and integrated packaging systems, trusted by 1,000+ customers and 2,000+ packing lines worldwide. With local support in Indonesia, Europe, USA and UAE, we deliver turnkey packaging line solutions from feeding to palletizing.
Send Your Inqulry
More Choices
Model | SW-PL1 |
System | Multihead weigher vertical packing system |
Application | Granular product |
Weigh range | 10-1000g (10 head); 10-2000g (14 head) |
Accuracy | ±0.1-1.5 g |
Speed | 30-50 bags/min (normal) |
Bag size | Width=50-500mm, length=80-800mm(Depends on packing machine model) |
Bag style | Pillow bag, gusset bag, quad-sealed bag |
Bag material | Laminated or PE film |
Weighing method | Load cell |
Control penal | 7” or 10” touch screen |
Power supply | 5.95 KW |
Air consumption | 1.5m3/min |
Voltage | 220V/50HZ or 60HZ, single phase |
Packing size | 20” or 40” container |
material
The multi head weigher is suitable for weighing granular materials, such as nuts, rice, potato chips, biscuits, etc.
pouch type
Vertical packaging machine adopts roll film forming to make bags, which is suitable for making pillow bags and gusset bags.
* IP65 waterproof, use water cleaning directly, save time while cleaning;
* Modular control system, more stability and lower maintenance fees;
* Production records can be checked at any time or download to PC;
* Load cell or photo sensor checking to satisfy different requirements;
* Preset stagger dump function to stop blockage;
* Design linear feeder pan deeply to stop small granule products leaking out;
* Refer to product features, select automatic or manual adjust feeding amplitude;
* Food contact parts disassembling without tools, which is easier to clean;
* Multi-languages touch screen for various clients, English, French, Spanish, etc;
* PC monitor production status, clear on production progress (Option).
finished in one operation;
* Separate circuit boxes for pneumatic and power control. Low noise, and more stable;
* Film-pulling with servo motor for precision, pulling belt with cover to protect moisture;
* Open door alarm and stop machine running in any condition for safety regulation;
* Film centering automatically is available (Optional);
* Only control touch screen to adjust bag deviation. Simple operation;
* Film in roller can be locked and unlocked by air, convenient while change film.
Traditional Model
Normal Driving Board for Multihead Weigher
E. g.10 head mulihead weigher head, one board broken,
One board control 1 head, 1 board broken, 5 head cannot work.
Fix discharge chute, cannot modify after delivery.
Separate Parts
These parts are separately. and then meld together water will get inside the cover if not full meld. this is
not strong enough regarding waterproof while need cleaning.
3 Base Machine Frame
3 side seal base frame with DwO small cover on each size.
Smart Weigh Model
Modular control systemE. g. 10 head mulihead weigher
One board control 1 head, 1 board broken,
only 1 head cannot work, other 9 head can
work continually.
Discharge chute angle can be adjusted
according to different product features.
Combined PartsUpper cover and middle frame make by mould. which
looks better and very strong in waterproof. what is
more. we make spring dlip on the waterproof rubber.
stop water get inside while vibrator vibrating.
4 Base Machine Frame
Ensure machine frame stable while running
load cell can get higher precision data
Covenient for maintenence
Verbal communication include sounds, words.
4500 Square meter modern factory
30 Existing customized multihead weigher
56 Annual capacity of packaging line
65 Countries We Serve
12 Technical after-sales engineers
24x7 Hours old- aging testing ensure machine run stably and continuously
Spares & Consumables
Strong enough spare parts in stock for old and new version machine.
High Temperature Check
All of the mother boards and drive boards will be tested here
for 7 days at high 50 degree, after 7 days later, if the boards
are survived, then they can be installed on the machine.
Continue Old Age Working
Machine runs 24 hours/day for 1 week continuously to testisfy
there is no problem during production.
1. How can you meet our requirements and needs well?
based on your project details and requirements.
warranty Old machine parts can be replaced no matter how long you have bought our machine
