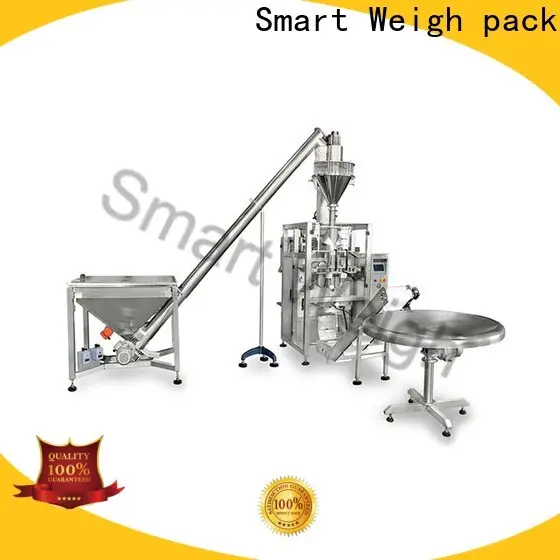

Smart Weigh pack high-quality vertical bagging machine company for frozen food packing
1. There are many factors being considered while designing Smart Weigh pack . They are the selection of materials, modes of loading, safety factors, allowable stresses, etc. Smart Weigh packing machine is highly reliable and consistent in operation
2. Many customers appreciate it very much because they are hard to find any loose threads or unqualified seam stitching on this product. Less maintenance is required on Smart Weigh packing machines
3. This product enjoys long service time for its sophisticated quality. Smart Weigh packing machine has set new benchmarks in the industry
4. As it is manufactured in strict accordance with the international quality standard, the product is of assured quality. The latest technology is applied in the production of the smart Weigh packing machine
Model | SW-PL2 |
Weighing Range | 10 - 1000 g (can be customized) |
Bag Size | 50-300mm(L) ; 80-200mm(W) --can be customized |
Bag Style | Pillow Bag; Gusset Bag |
Bag Material | Laminated film; Mono PE film |
Film Thickness | 0.04-0.09mm |
Speed | 40 - 120 times/min |
Accuracy | 100 - 500g,≤±1%; > 500g,≤±0.5% |
Hopper Volume | 45L |
Control Penal | 7" Touch Screen |
Air Consumption | 0.8Mps 0.4m3/min |
Power Supply | 220V/50HZ or 60HZ; 15A; 4000W |
Driving System | Servo Motor |
※ Features
◆ Fully-automatically procedures from material feeding, filling and bag-making, date-printing to finished products output;
◇ Because of the unique way of mechanical transmission, so its simple structure, good stability and strong ability to over loading.;
◆ Multi-languages touch screen for various clients, English, French, Spanish, etc;
◇ Servo motor driving screw is characteristics of high-precision orientation, high-speed, great-torque, long-life, setup rotate speed, stable performance;
◆ Side-open of the hopper is made of stainless steel and is consist of glass,damp. material movement at a glance through the glass,air-sealed to avoid the leak, easy to blow the nitrogen, and the discharge material mouth with the dust collector to protect the workshop environment;
◇ Double film pulling belt with servo system;
◆ Only control touch screen to adjust bag deviation. Simple operation.
※ Application
It is suitable for smaller granule and powder, like rice, sugar, flour, coffee powder etc.
※ Product Certificate
Company Features
1. Guangdong Smart Weigh Packaging Machinery Co., Ltd is world-wide prestigious for its high quality vertical bagging machine and stable supply capability. The strong research strength is assurance of the new vertical packaging machine product of Guangdong Smart Weigh Packaging Machinery Co., Ltd.
2. Up until now, Guangdong Smart Weigh Packaging Machinery Co., Ltd has possessed an outstanding systematic ability to develop new vertical filling machine products.
3. 'Once the market requirements change, Guangdong Smart Weigh Packaging Machinery Co., Ltd will design relevant products' is the requirement for Smart weigh multihead Weighing And Packing Machine. Guangdong Smart Weigh Packaging Machinery Co., Ltd always adheres to the principle of serving customers with a high-quality attitude. Please contact us!
