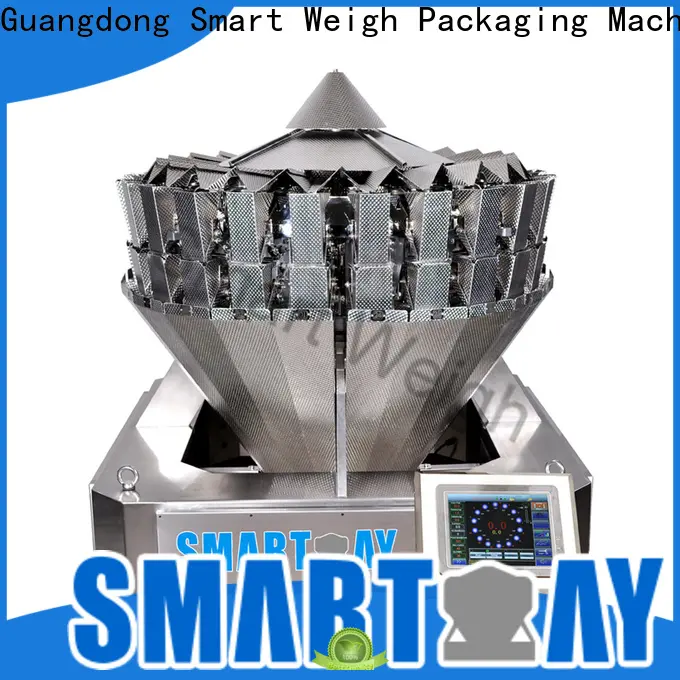

Model | SW-M24 |
Weighing Range | 10-500 x 2 grams |
Max. Speed | 80 x 2 bags/min |
Accuracy | + 0.1-1.5 grams |
Weigh Bucket | 1.0L |
Control Penal | 9.7" Touch Screen |
Power Supply | 220V/50HZ or 60HZ; 12A; 1500W |
Driving System | Stepper Motor |
Packing Dimension | 2100L*2100W*1900H mm |
Gross Weight | 800 kg |
※ Features
◇ IP65 waterproof, use water cleaning directly, save time while cleaning;
◆ Modular control system, more stability and lower maintenance fees;
◇ Production records can be checked at anytime or download to PC;
◆ Load cell or photo sensor checking to satisfy different requirements;
◇ Preset stagger dump function to stop blockage;
◆ Design linear feeder pan deeply to stop small granule products leaking out;
◇ Refer to product features, select automatic or manual adjust feeding amplitude;
◆ Food contact parts disassembling without tools, which is easier to clean;
◇ Multi-languages touch screen for various clients, English, French, Spanish, etc;
※ Dimensions
※ Application
It is mainly apply in automatic weighing various granular products in food or non-food industries, such as potato chips, nuts, frozen food, vegetable, sea food, nail, etc.
※ Function
※ Product Certificate
