(We have several Models.
Don't Worry! We can customize the suitable one for you according to your requiredment.
Just Tell us : Weight or Bag Size required.)
| Type | SW-420 | SW-520 | SW-720 |
| Film Width | Max.420MM | Max.520MM | Max.720MM |
| Bag Length | 80-300MM | 80-350MM | 100-500MM |
| Bag Width | 60-200MM | 100-250MM | 180-350MM |
| Film Thickness | 0.04-0.12MM | 0.04-0.12MM | 0.04-0.12MM |
| Packaging Rate | 10-60Bag/Min | 10-60Bag/Min | 10-55Bag/Min |
| Power | 220V 50/60HZ 2KW | 220V 50/60HZ 3KW | 220V 50/60HZ 3KW |
| Machine Size | 1217*1015*1343MM | 1488*1080*1490MM | 1780*1350*2050MM |
| Machine Quality | About 650KG | About 680KG | About 750KG |

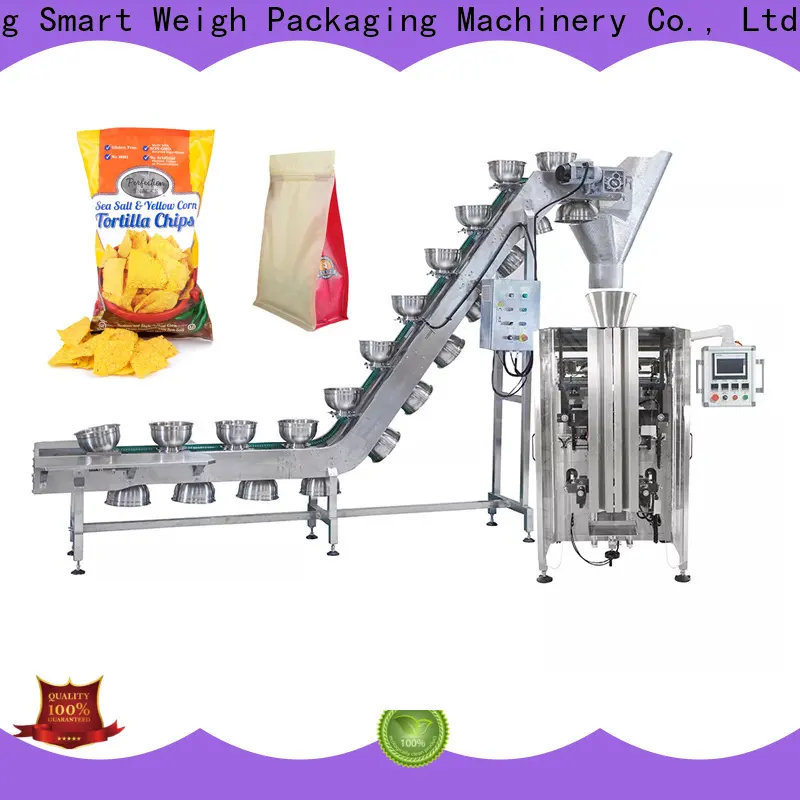

Material Handling Supplier Custom 304 Stainless Steel Bowl Elevator For Fresh Food
Inclined Bowl Conveyor is also called chain bowl hoist conveyor, mainly used for conveying small block, granular and solid materials, widely used in food, agriculture, pharmaceutical, cosmetics, chemical and other industries. It is mainly used for the secondary lift solution limited by the space of the site.
Examples: chicken nuggets, snack foods, frozen foods, vegetables, fruits, candies, chemicals and other particles.
1. Date Coder
2. Hole Punching Device(Pinhole, Round hole, the butterfly hole)
3. Linking bag control device
4. Air-filling Device
5. Air Exhaust Device
6. Tear Notch Device
7. Nitrogen inflation device
8. Gusset Bag
