1. The production of Smartweigh Pack adopts the lean production method, reducing the waste and lead time. Smart Weigh packing machines are of high efficiency
2. We have strict inspection system to control quality when producing vertical form fill and seal machines . Smart Weigh's uniquely designed packing machines are simple to use and are cost effective
3. This product has precision specifications. All of its mechanical components are manufactured from a wide range of special CNC machines with the required precision. Smart Weigh packing machine is manufactured with the best available technical know-how

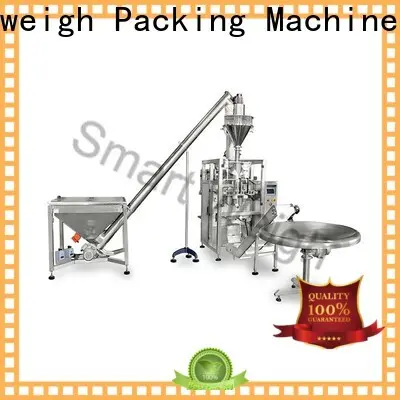

Model | SW-PL2 |
Weighing Range | 10 - 1000 g (can be customized) |
Bag Size | 50-300mm(L) ; 80-200mm(W) --can be customized |
Bag Style | Pillow Bag; Gusset Bag |
Bag Material | Laminated film; Mono PE film |
Film Thickness | 0.04-0.09mm |
Speed | 40 - 120 times/min |
Accuracy | 100 - 500g,≤±1%; > 500g,≤±0.5% |
Hopper Volume | 45L |
Control Penal | 7" Touch Screen |
Air Consumption | 0.8Mps 0.4m3/min |
Power Supply | 220V/50HZ or 60HZ; 15A; 4000W |
Driving System | Servo Motor |
※ Features
◆ Fully-automatically procedures from material feeding, filling and bag-making, date-printing to finished products output;
◇ Because of the unique way of mechanical transmission, so its simple structure, good stability and strong ability to over loading.;
◆ Multi-languages touch screen for various clients, English, French, Spanish, etc;
◇ Servo motor driving screw is characteristics of high-precision orientation, high-speed, great-torque, long-life, setup rotate speed, stable performance;
◆ Side-open of the hopper is made of stainless steel and is consist of glass,damp. material movement at a glance through the glass,air-sealed to avoid the leak, easy to blow the nitrogen, and the discharge material mouth with the dust collector to protect the workshop environment;
◇ Double film pulling belt with servo system;
◆ Only control touch screen to adjust bag deviation. Simple operation.
※ Application
It is suitable for smaller granule and powder, like rice, sugar, flour, coffee powder etc.
※ Product Certificate
Company Features
1. Equipped with advanced facilities, our factory reaches a high level of annual output.
2. We understand sustainability as an affirmative action to minimize the negative impact on the environment. This is to be created in close dialogue and partnership with all of our stakeholders. For example, we promote fair and safe working conditions and green procurement in the supply chain.
