After years of solid and rapid development, Smart Weigh has grown into one of the most professional and influential enterprises in China. buy metal detector We have been investing a lot in the product R&D, which turns out to be effective that we have developed buy metal detector. Relying on our innovative and hard-working staff, we guarantee that we offer customers the best products, the most favorable prices, and the most comprehensive services as well. Welcome to contact us if you have any questions.The dehydrating process will not contaminate the food. The water vapor will not evaporate on top and drop to the below food trays because the vapor will condense and separate out to the defrosting tray.

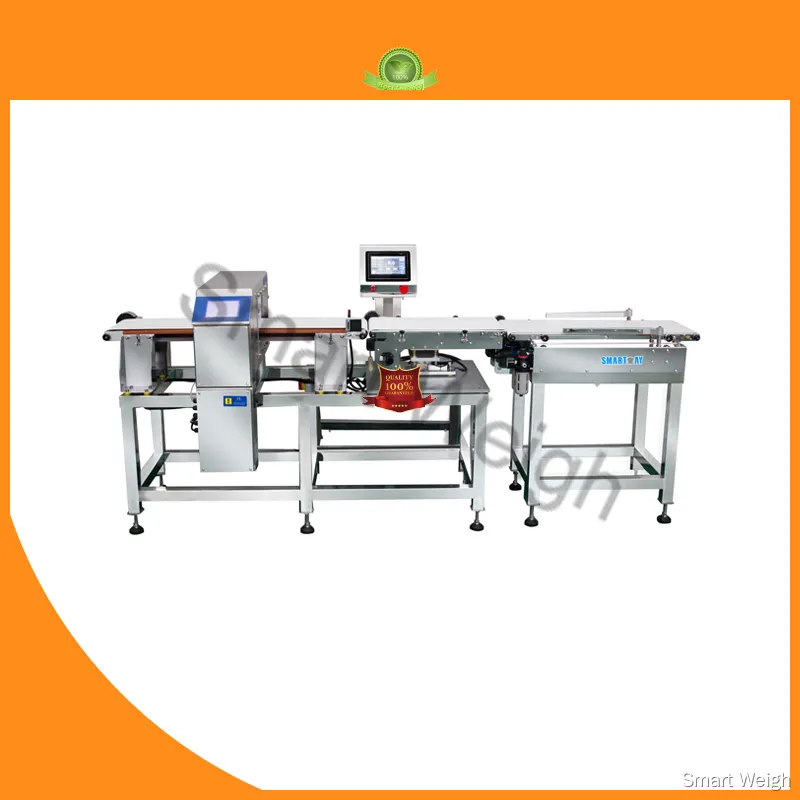

The checkweigher metal detector combination is usually at the end of production lines or packing process: metal detectors detect metal and find metal in food products and may pose a risk to consumers, check weighers with load cell weighing technology, double ensure the accurate weight. Widely used in food industry and non-food industry. The combination of metal detector checkweigher provides a space-saving solution for many industries. The combination of checkweigher with metal detector provides a way to achieve the required safety precautions and accuracy in one machine. These combination checkweigher units can use two rejectors to sort rejects based on weight and content.

Model | SW-CD220 | SW-CD320 |
Control System | Modular Drive & 7" HMI | |
Weighing range | 10-1000 grams | 10-2000 grams |
Speed | 25 meters/min | 25 meters/min |
Accuracy | +1.0 grams | +1.5 grams |
Product Size mm | 10 | 10 |
| Detect Size | 10 | 10 |
| Sensitivity | Fe≥φ0.8mm Sus304≥φ1.5mm | |
Mini Scale | 0.1 grams | |
Reject system | Reject Arm/Air Blast/ Pneumatic Pusher | |
Power supply | 220V/50HZ or 60HZ Single Phase | |
Package size (mm) | 1320L*1180W*1320H | 1418L*1368W*1325H |
Gross Weight | 200kg | 250kg |
※ Metal Detector Checkweigher Specific Applications
The checkweigher metal detector combination, two machines share same frame and rejector to save space and cost;
User friendly to control both machine on the same screen;
Various speed can be controlled for different projects;
High sensitive metal detection and high weight precision;
Checkweigher machines are modular design, stable performance;
Reject arm, pusher, air blow etc reject system as option;
Production records can be downloaded to PC for analysis;
Reject bin with full alarm function easy for daily operation;
All belts are food grade & easy disassemble for cleaning;
Hygienic design with stainless steel 304 materials.
