Custom form fill seal bagging machine highly rated Manufacturer | Smart Weigh
Guided by scientific and technological innovation, Smart Weigh always keeps outward-oriented and sticks to the positive development on the basis of technological innovation. form fill seal bagging machine We will do our best to serve customers throughout the whole process from product design, R&D, to delivery. Welcome to contact us for further information about our new product form fill seal bagging machine or our company.form fill seal bagging machine It adopts an electronic temperature control system with accurate temperature display, energy saving and environmental protection. It is also equipped with a good heat dissipation system with strong heat dissipation capacity.

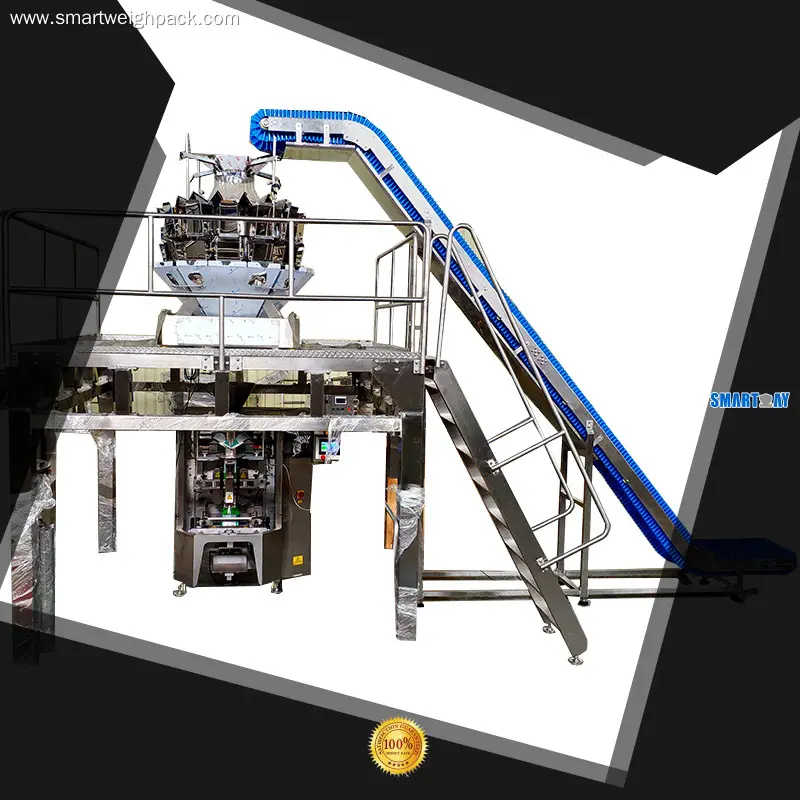

High efficiency lettuce cabbage mushroom vertical form fill seal packaging machine fruit and vegetable VFFS packaging machine.
Type | SW-P620 | SW-P720 |
Bag length | 50-400 mm(L) | 50-450 mm(L) |
Bag width | 80-300 mm(W) | 80-350 mm(W) |
Max width of roll film | 620 mm | 720 mm |
Packing speed | 5-50 bags/min | 5-30 bags/min |
Film thickness | 0.04-0.09mm | 0.04-0.09mm |
Air consumption | 0.8 mpa | 0.8 mpa |
Gas consumption | 0.4 m3/min | 0.4 m3/min |
Power voltage | 220V/50Hz 2.2KW | 220V/50Hz 4.5KW |
Machine Dimension | L1250mm*W1600mm*H1700mm | L1700*W1200*H1970mm |
Gross Weight | 800 Kg | 800 Kg |
1. Efficient: Bag - making, filling, sealing, cutting, heating, date / lot number achieved in one time;
2. Intelligent: Packing speed and bag length can be set through the screen without part changes;
3. Profession: Independent temperature controller with heat balance enables different packing materials;
4. Characteristic: Automatic stop function, with safe operation and saving the film;
5. Convenient: Low loss, labor saving, easy for operation and maintenance.
6. Weighing accuracy 0.4 to 1.0 gram.

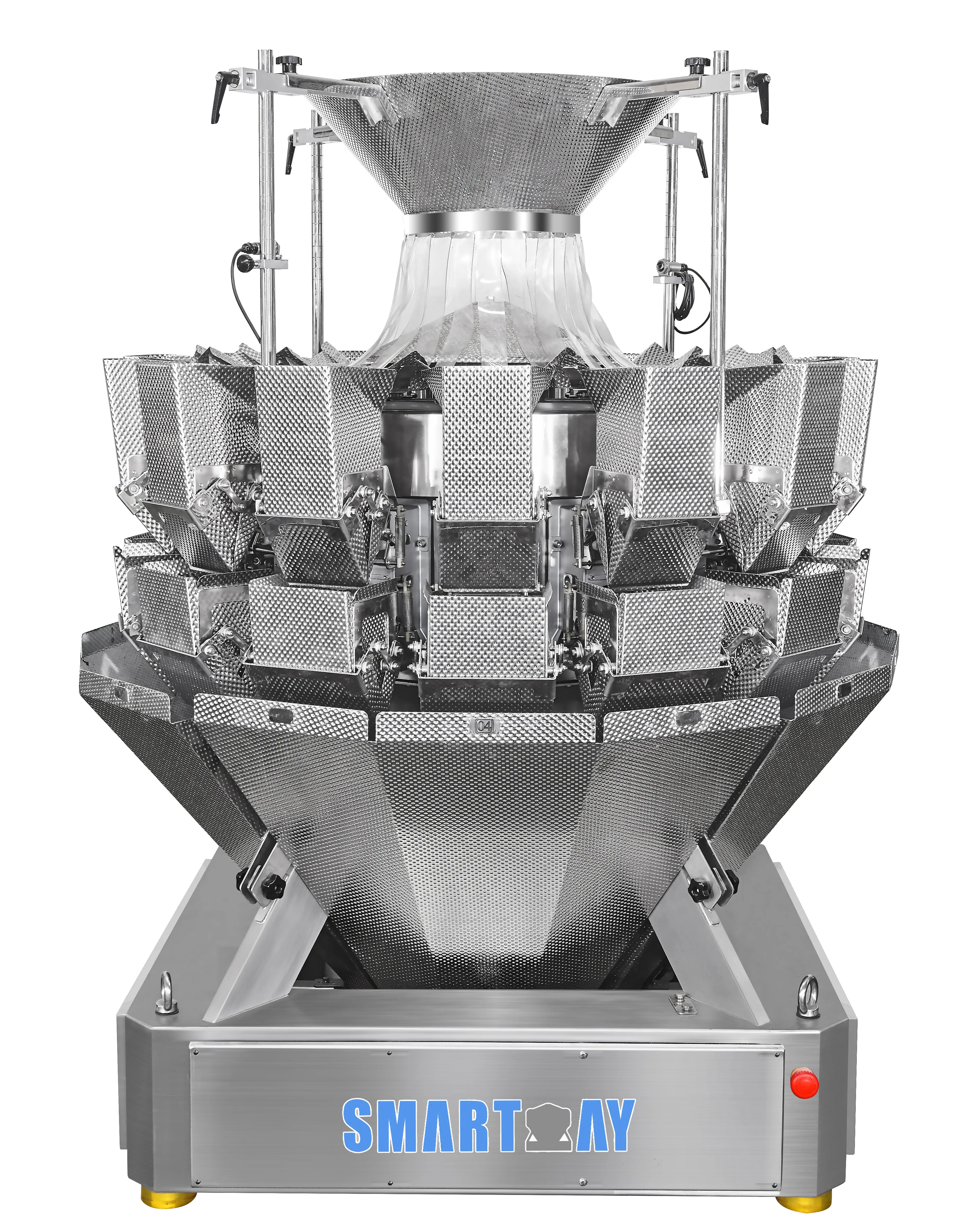

A variety of granular, strip-shaped materials, including lettuce, mushrooms, small tomatoes, bean sprouts and other vegetables and fruits can be weighed on the multi-head weigher.
