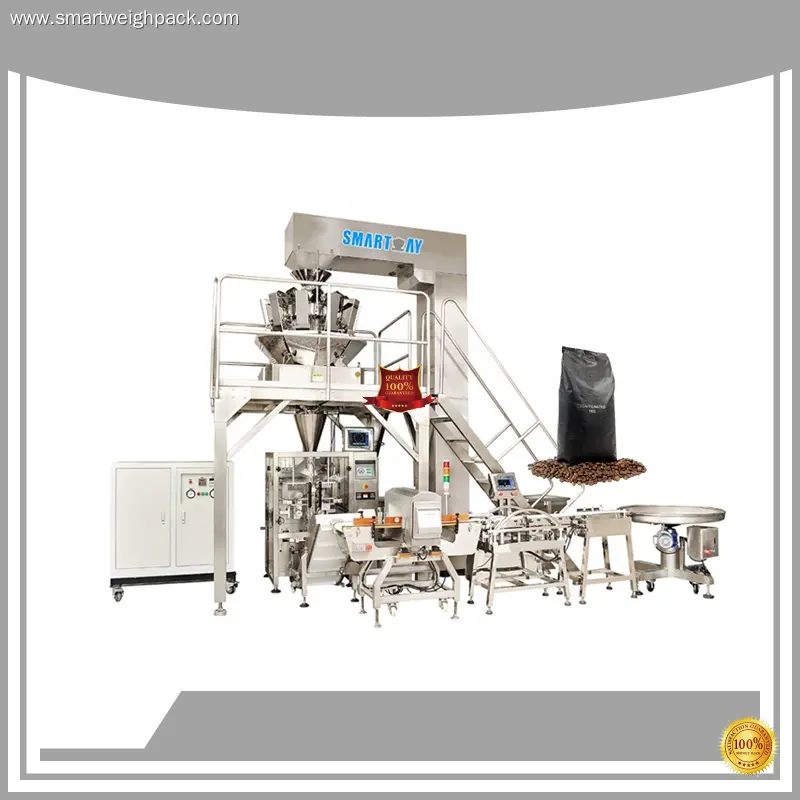

Vertical Form Fill Seal Line Automatic Coffee Bean Packaging Machines
An integrated multihead weigher + VFFS coffee line for whole beans or ground coffee. Delivers stable weights, high throughput (20–100 bags/min), nitrogen for freshness, and retail-ready bag styles (pillow, gusset, quad/four-side). Compatible with laminated and mono-PE recyclable films. Ideal for roasters and co-packers upgrading speed, accuracy, and shelf life.
Who it's for: specialty roasters, private-label co-packers, and producers running 100–1000 g SKUs with clear ROI targets on labor, giveaway, and shelf-life.
How the line works (process & modules)
1. Bucket Conveyor — Automated feeding to the scale, consistent head pressure.
2. Multihead Weigher — Fast, gentle dosing for whole beans; recipe-based accuracy.
3. Working Platform — Safe access and maintenance for the scale.
4. Vertical Packing Machine — Forms, fills, and seals pillow/gusset/quad bags; optional valve inserter.
5. Nitrogen Generator — Lowers residual O₂, preserves aroma and flavor.
6. Output Conveyor — Transfers finished bags to QA or case packing.
7. Metal Detector (optional) — Rejects metal-contaminated packs.
8. Checkweigher (optional) — Verifies net weight, auto-rejects out-of-tolerance.
9. Rotary Collection Table (optional) — Buffers good packs for manual packing.
Options to consider: dust extraction (for ground coffee), printer/labeler, leak/O₂ spot tester, valve applicator, infeed product aligners.
Applications
Specification
Model | SW-PL1 |
Weighing Range | 10-5000 grams |
Bag Size | 120-400mm(L) ; 120-400mm(W) |
Bag Style | Pillow Bag; Gusset Bag; Four side seal |
Bag Material | Laminated film; Mono PE film |
Film Thickness | 0.04-0.09mm |
Speed | 20-100 bags/min |
Accuracy | + 0.1-1.5 grams |
Weigh Bucket | 1.6L or 2.5L |
Control Penal | 7" or 10.4" Touch Screen |
Air Consumption | 0.8Mps 0.4m3/min |
Power Supply | 220V/50HZ or 60HZ; 18A; 3500W |
Driving System | Stepper Motor for scale; Servo Motor for bagging |
Multihead Weigher
Vertical Packing Machine
FAQs
1) Can this line pack both beans and ground coffee?
Yes. For beans, use the multihead weigher; for ground coffee, add an auger filler module or a dedicated lane. Recipes and tooling enable quick changeovers.
2) Do I need nitrogen and a degassing valve?
For freshly roasted beans and long distribution, we recommend the one-way valve vents CO₂ without letting oxygen in.
3) Can it run recyclable mono-PE films?
Yes—after sealing window validation. Expect minor parameter changes (jaw temp/dwell) versus standard laminates.
4) What speed should I expect on 250–500 g bags?
Typical ranges are 40–90 bags/min depending on film, gas flush, and valve insertion. We’ll simulate your SKUs during FAT.
5) How accurate is the system in real production?
±0.1–1.5 g is typical; actual performance depends on product flow, target weight, film, and line settings. A checkweigher keeps compliance tight.
