Smart Weigh | Factory Price vertical form fill seal packaging machines manufacturers

has strong technical strength, rich production experience, and excellent production equipment. The vertical form fill seal packaging machines produced has excellent performance, stable quality, and high quality. All of them have passed the quality certification of the national authority.
Inquiry

After years of solid and rapid development, Smart Weigh has grown into one of the most professional and influential enterprises in China. vertical form fill seal packaging machines Having devoted a lot to product development and service quality improvement, we have established a high reputation in the markets. We promise to provide every customer throughout the world with prompt and professional service covering the pre-sales, sales, and after-sales services. No matter where you are or what business you are engaged in, we'd love to help you deal with any issue. If you want to know more details about our new product vertical form fill seal packaging machines or our company, feel free to contact us.(Smart Weigh) vertical form fill seal packaging machines is manufactured to the highest hygienic standards possible, ensuring that the product is safe for human consumption. With rigorous testing processes in place, there's no risk of food being compromised after dehydration. Count on Smart Weigh vertical form fill seal packaging machines for delicious and healthy meals every time.


NAME

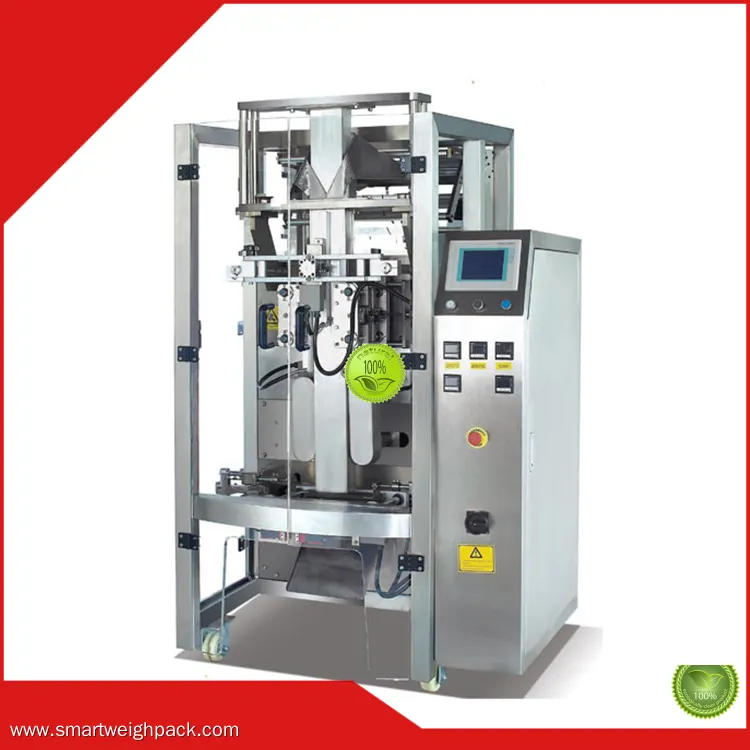

SW-730  Vertical quadro bag packing machin

Capacity40 bag/min (it will be effected by film material, packing weight and bag length and so on.)
Bag size

Front width: 90-280mm

Side width:  40- 150mm

Width of edge sealing: 5-10mm

Length: 150-470mm

Film width

280- 730mm

Bag typeQuad-seal bag
Film thickness

0.04-0.09mm

Air consumption0.8Mps  0.3m3/min
Total power4.6KW/ 220V 50/60Hz
Dimension1680*1610*2050mm
Net Weight900kg


※  FEATURES

bg

* Attractive bag type to satisfy your high demand.

* It completes bagging, sealing, date printing, punching, counting automatically;

* Film drawing down system controlled by servo motor. Film rectifying deviation automaticlly;

* Famous brand PLC. Pneumatic system for vertical and horizontal sealing;

* Easy to operate, low maintenance, compatible with different internal or external measuring device.

* The way of bag making: the machine can make pillow-type bag and standing bag according to customer’s requirements.  gusset bag, side-ironed bags can also be optional.

Smart Weigh | Factory Price vertical form fill seal packaging machines manufacturers 6

※   Detailed Description

bg
Smart Weigh | Factory Price vertical form fill seal packaging machines manufacturers 7
Strong film supportor
Back and Side view of this high premium automatic bag packing machine is for your premium products like wafer, biscuits, dry banana chips, dry strawberries, dry fruits,chocolate candies, coffee powder, etc.


Smart Weigh | Factory Price vertical form fill seal packaging machines manufacturers 8
Packing machine in popular
As this machine is for making quadro sealed bag or called four edges sealed bag, just because it is a high quality packing bag type and stand up beautifully in shelf exhibit.
Smart Weigh | Factory Price vertical form fill seal packaging machines manufacturers 9
Omron Temp. Controller
SmartWeigh use international famous standard for packing machines exported overseas, and homeland standard for China mainland clients differently. That's why for different prices. Pls take special emphasis on such points, as it affects the service lifetime and spare parts' availability in your country.

※   Application

bg

Smart Weigh | Factory Price vertical form fill seal packaging machines manufacturers 10

   Product  Certificate

bg


Smart Weigh | Factory Price vertical form fill seal packaging machines manufacturers 11


Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
