We have a lot of expertise making automatic packaging machines and can provide you with a wide range of packaging machines, including vertical packing machines, premade bag packaging machines, powder packing machines, and so on.
Here are four examples:

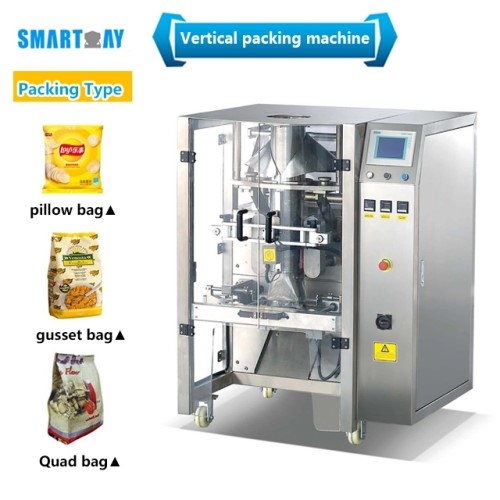

1. High Efficiency VFFS For Snacks

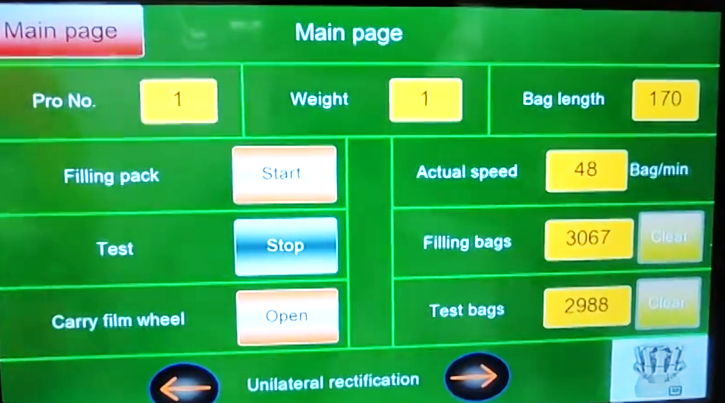

Our form fill seal packing machines enable fast weighing and packaging in a short amount of time. Bag-making, weighing, filling, sealing, printing, cutting, and finishing can all be done in one operation thanks to the touch screen and high precision control system.
The specifications for one of the high speed chips vertical packaging machines can be seen below.
Model | SW-PL1 | System | SIEMENS PLC control system |
Grade of waterproof | IP65 | Accuracy | ±0.1-1.5 g |
Bag material | Laminated or PE film | Weighing method | Load cell |
Control panel | 7” or 10” touch screen | Power supply | 5.95 KW |
Air consumption | 1.5m3/min | Voltage | 220V/50HZ or 60HZ, single phase |
Weigh range | 10-1000g (10 head); 10-2000g (14 head) | ||
Speed | 30-50 bags/min (normal) 50-70 bags/min (twin servo) 70-120 bags/min (continuous sealing) | ||
2. High Accuracy premade bag packaging machines for puffed food

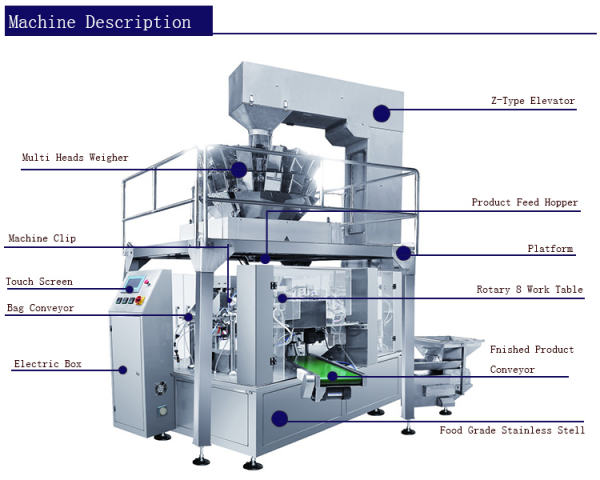

The premade pouch packing machine can properly weigh the product. According to the characteristics of the materials, automated rotary packing machines pack a range of bag kinds. Candy, cereal, chocolate, biscuits, beef jerky, and other puffed foods can all be packed by the doypack packaging machine.

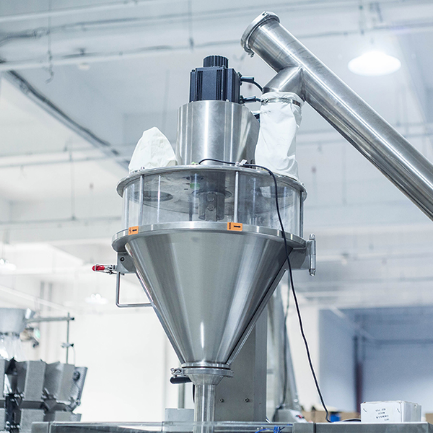

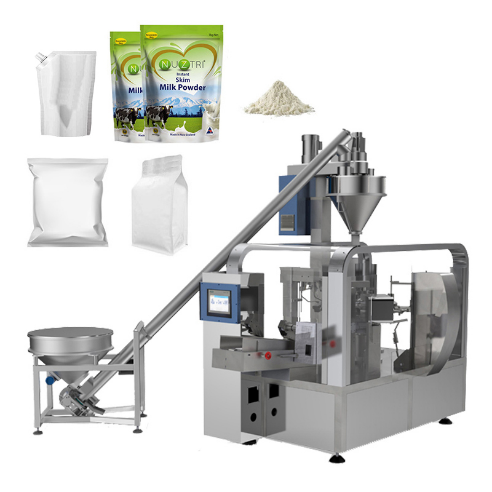

3. The Powder Packing Machine Increased Hygiene
Powder packaging equipment can aid with workplace sanitation. This is because powder packing equipment have sealing devices to prevent powder from spreading. This can help your staff work in a cleaner and safer atmosphere.
When packing chemicals that are dangerous to the human, the powder packaging machine's sealing system can isolate the powder from the human body, protecting employee safety and health.
Fina Words
Overall, there are many advantages to using auto weighing filling sealing packing machines in your business. They can help to increase efficiency, accuracy, and even help to create a more hygiene environment. So, if you’re looking for ways to improve your business, consider investing in some multifunction packing machines.

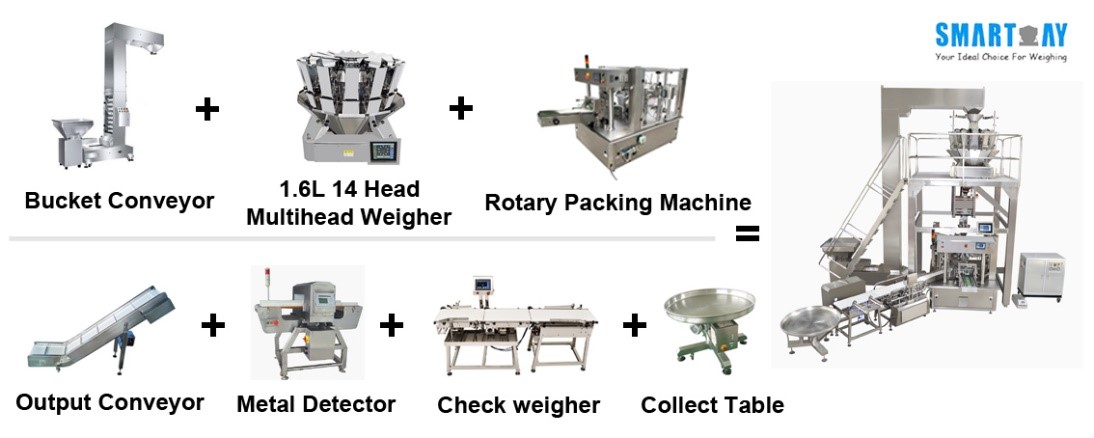

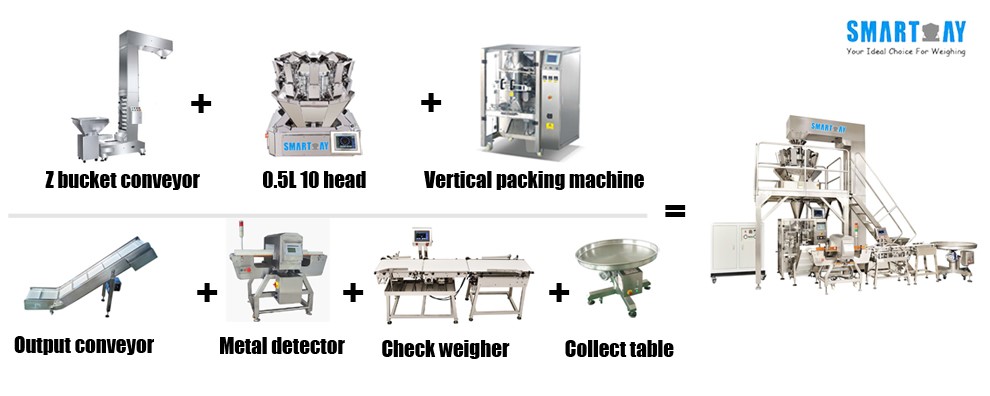

Finally for you to attach the vertical packaging system and the premade bag packaging system composition diagram :
