Why should you weigh fish with an 18-head linear combination weigher?
When a customer from Italy, a seafood supplier, sought us for the best solution for weighing frozen fish, Smart Weigh offered the fish combination weigher, a semi-automatic weighing machine.

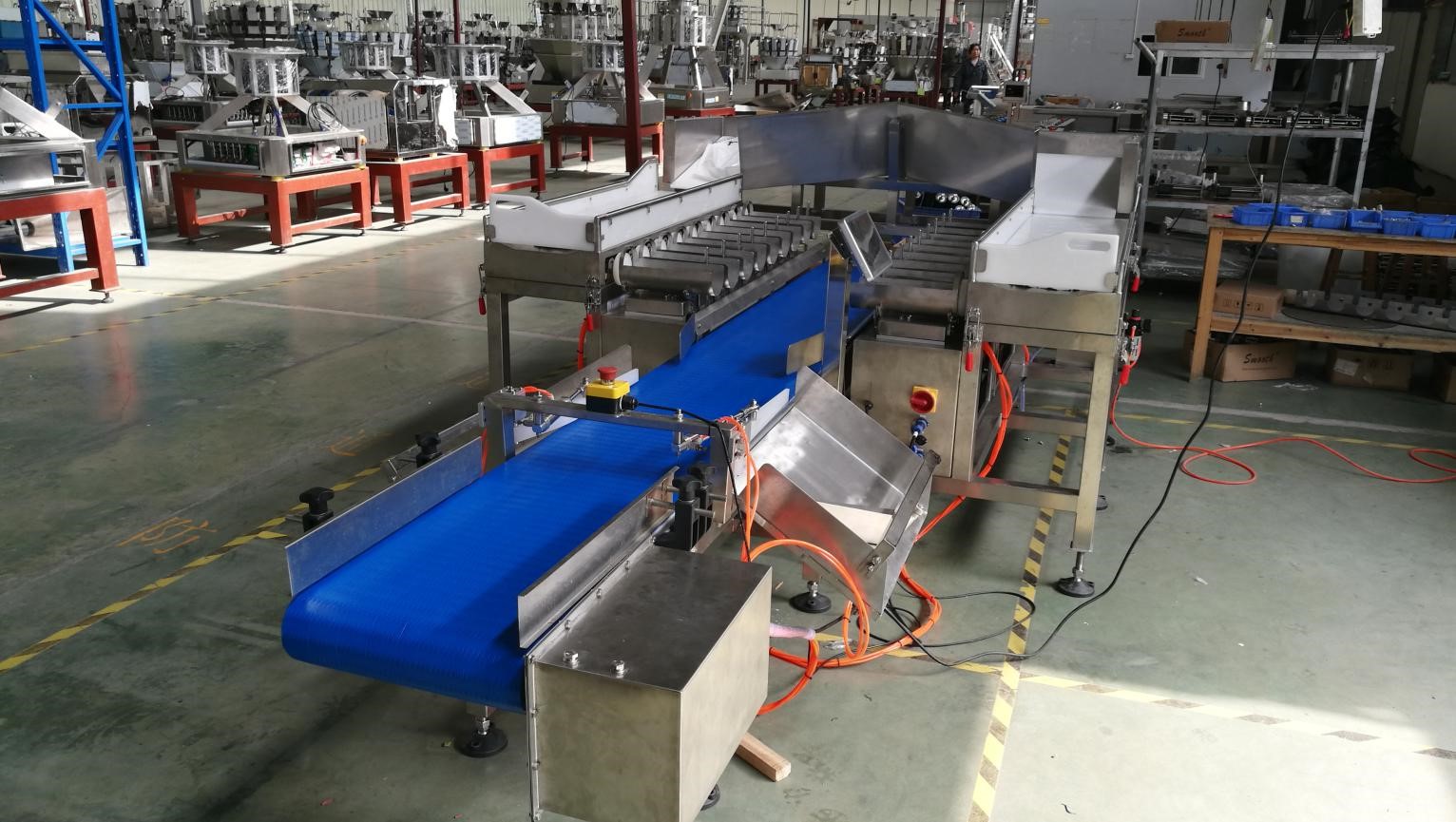

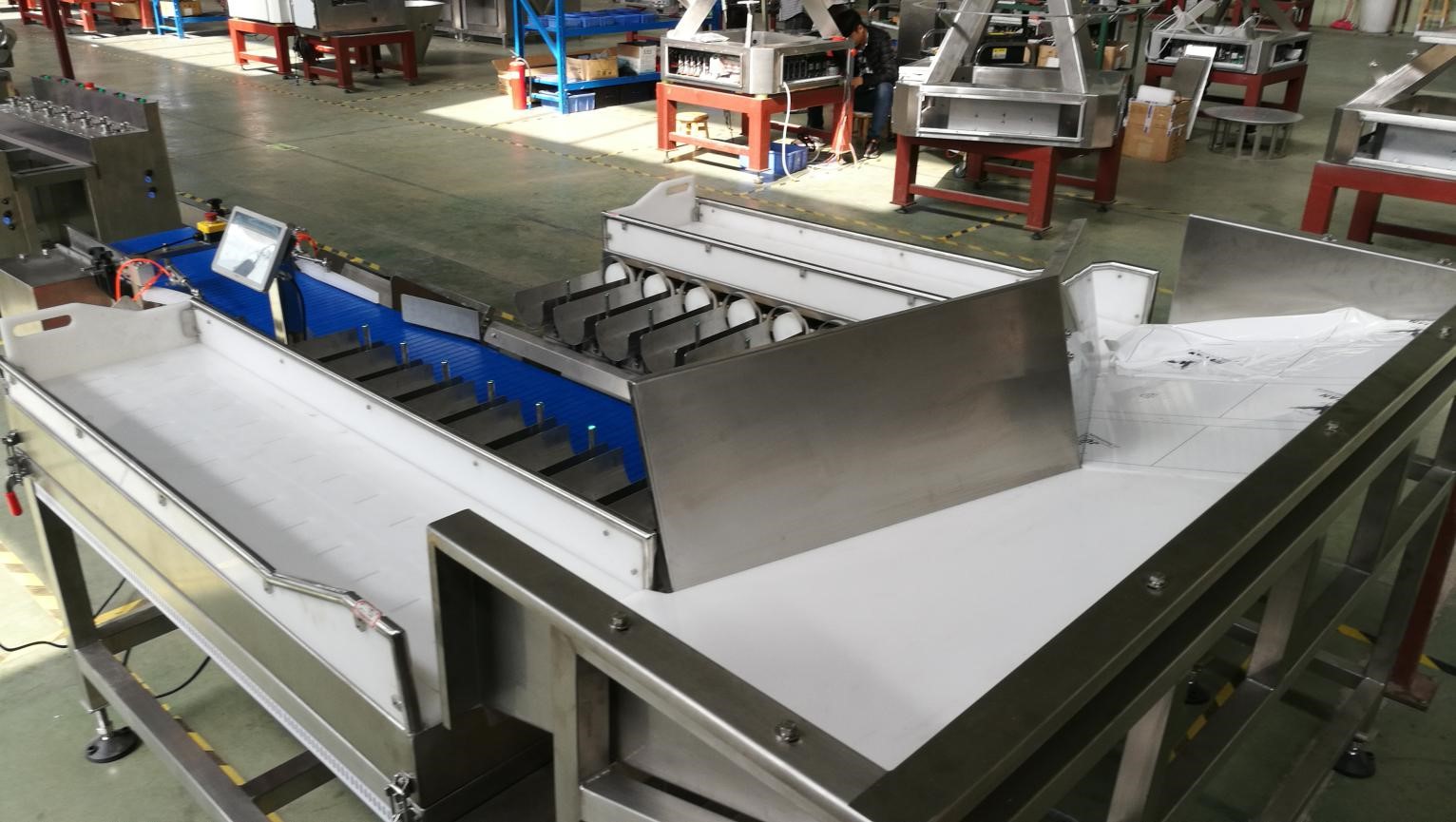

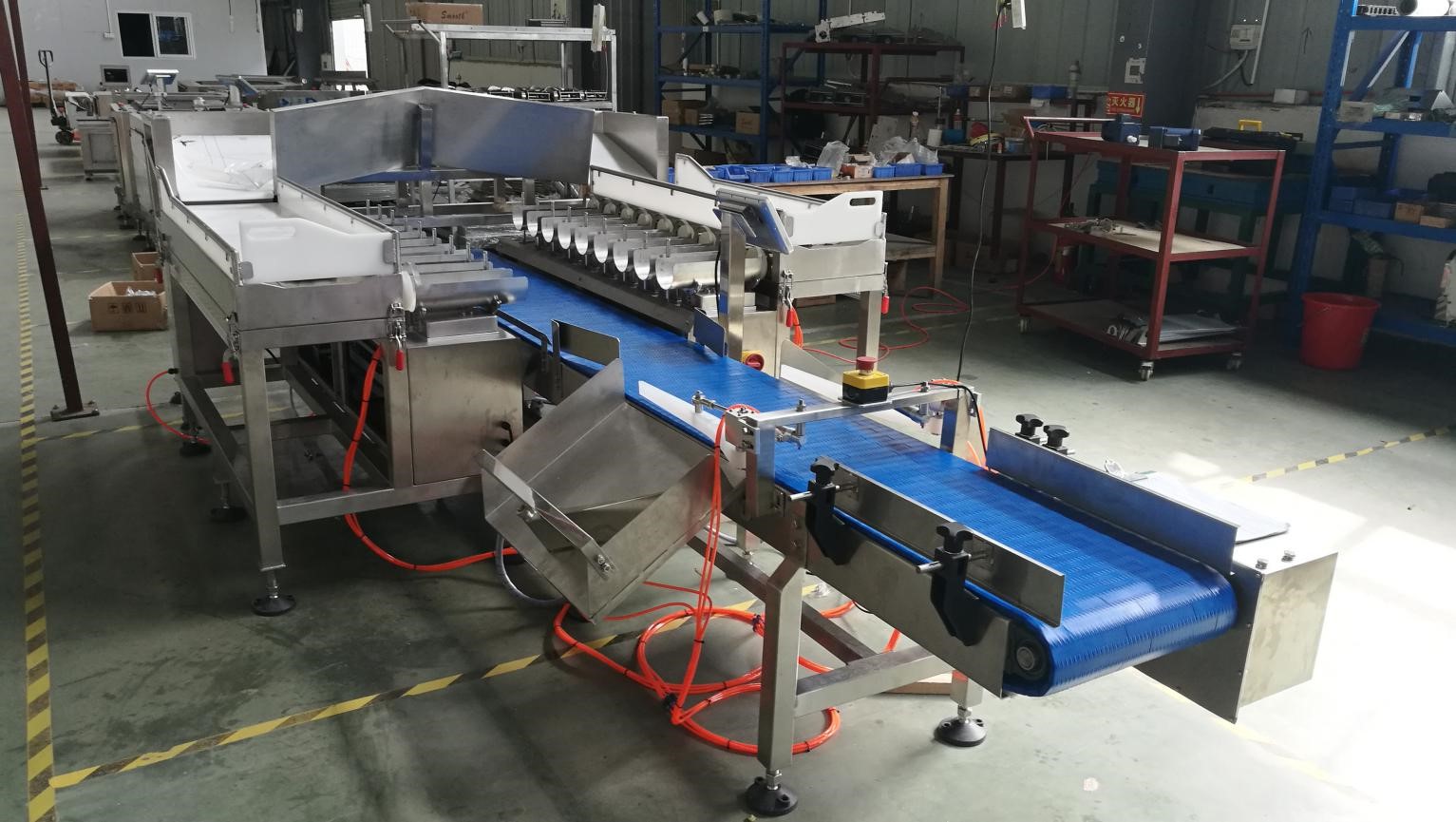

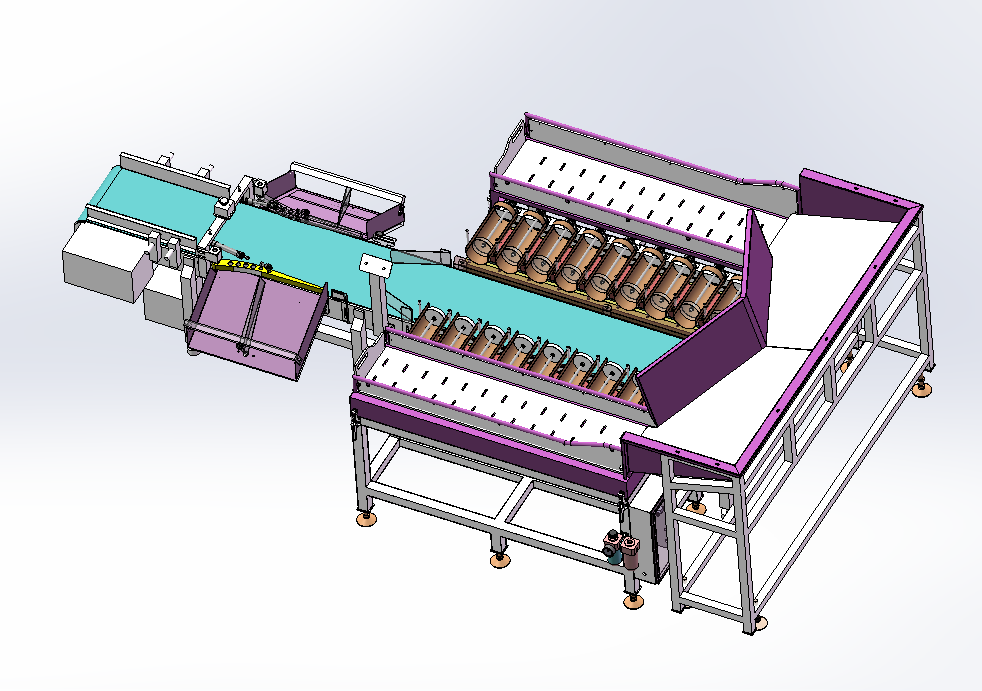

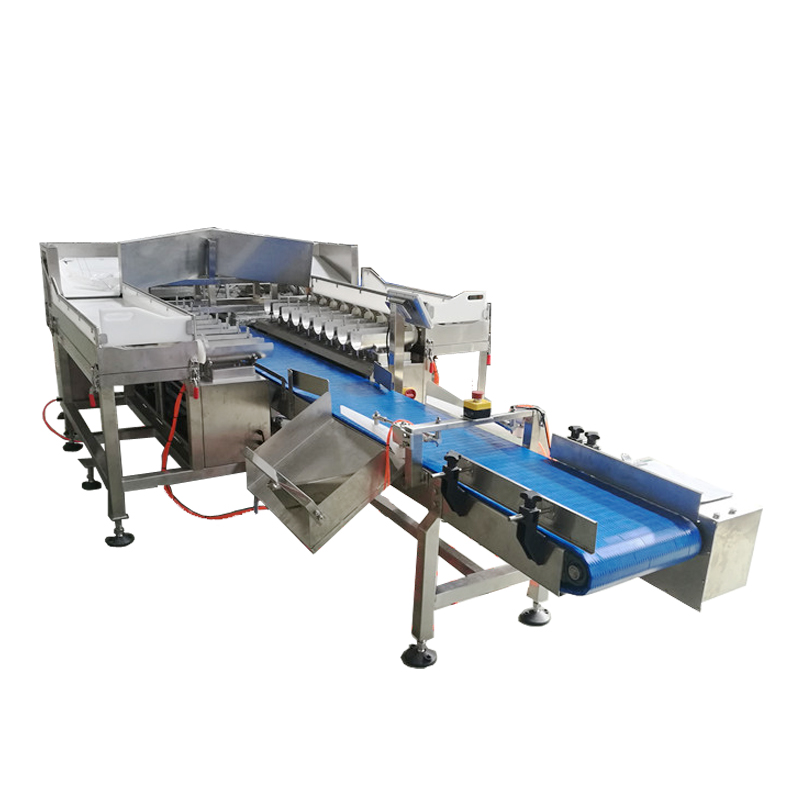

Smart Weight has released a new linear combination weigher for fish. The SW-LC18 is a cost-effective and efficient weighing solution for determining te most suitable combination for the target weight.

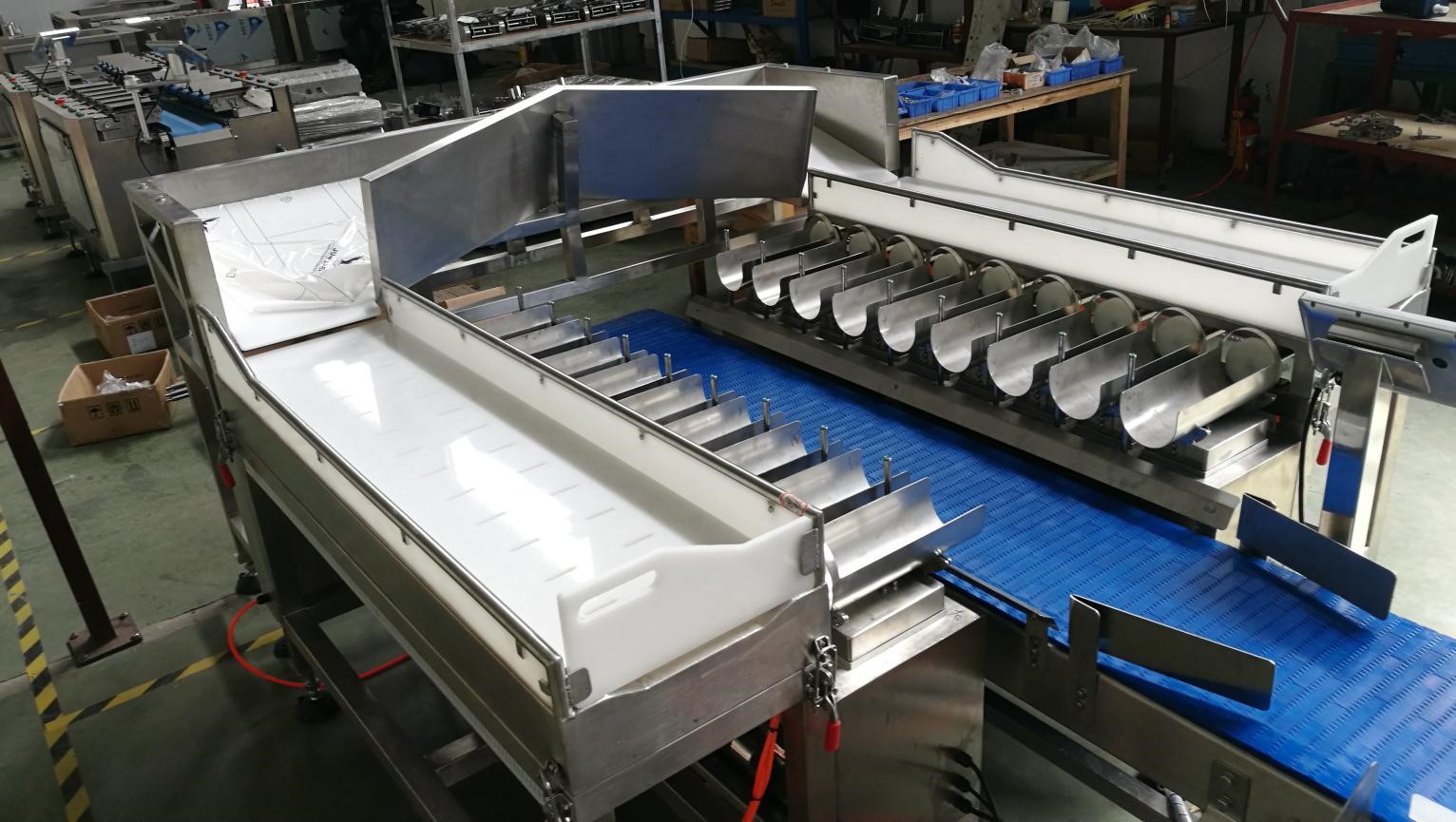

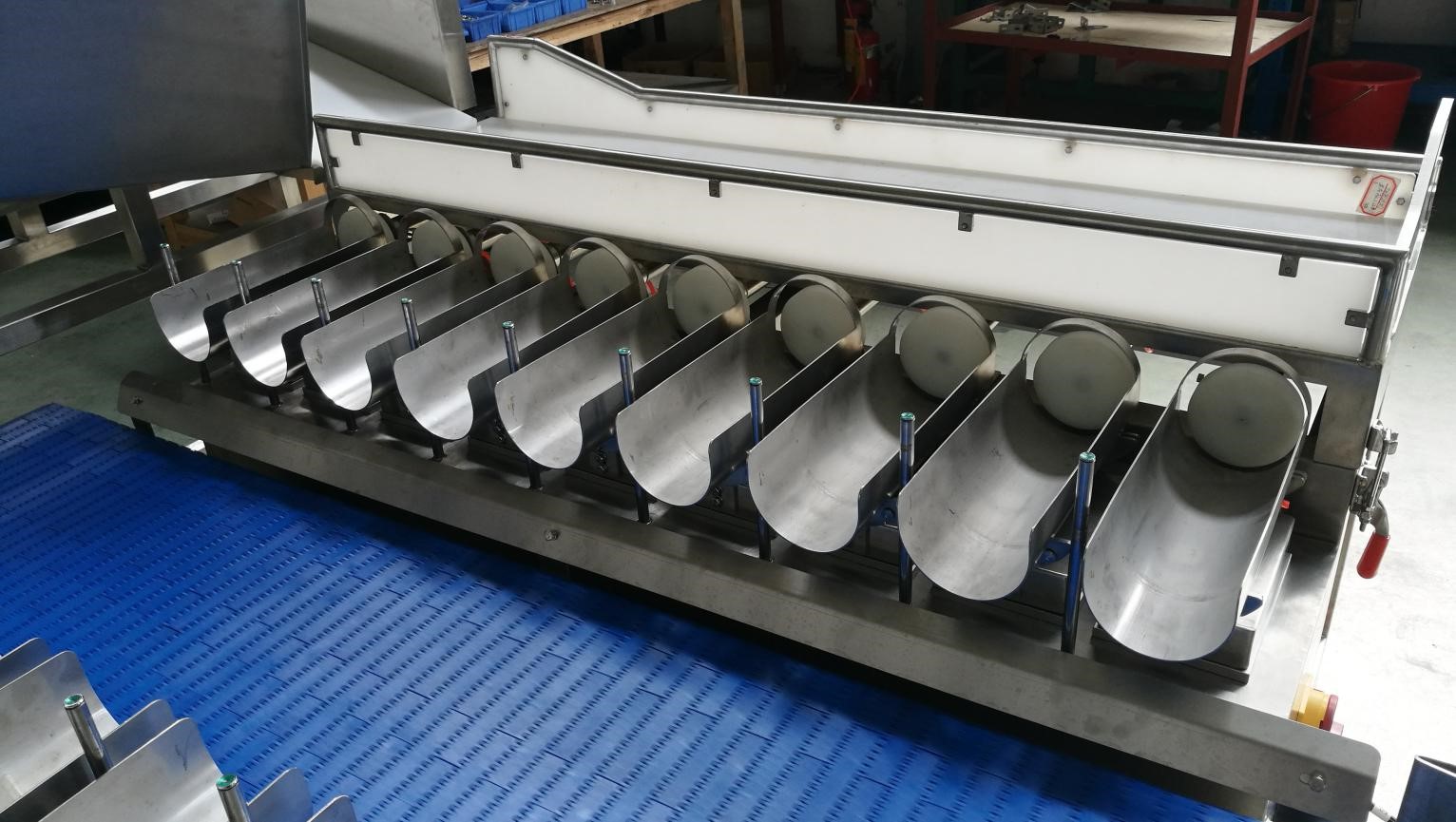

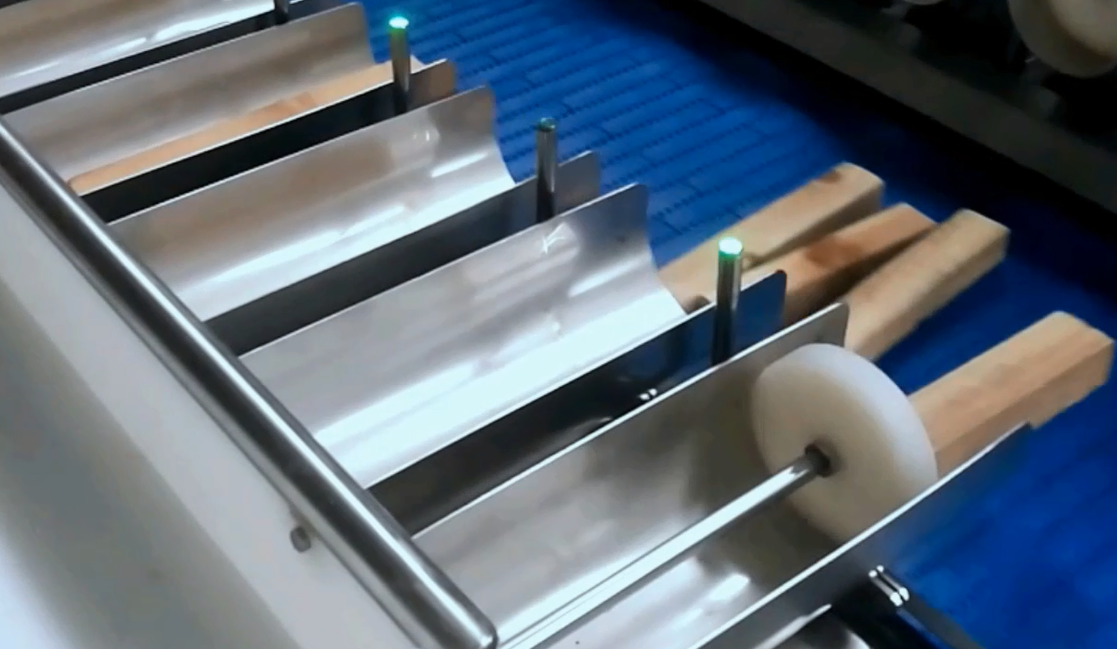

The smoother cylindrical head is ideal for weighing sticky materials. The multi-head weigher will calculate the most appropriate combination of target weights, after which the material will be pushed out by an automatic pusher.

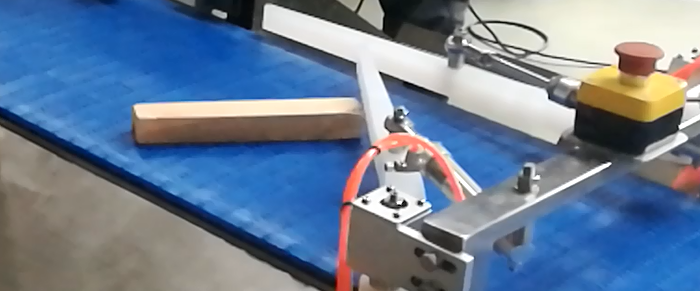

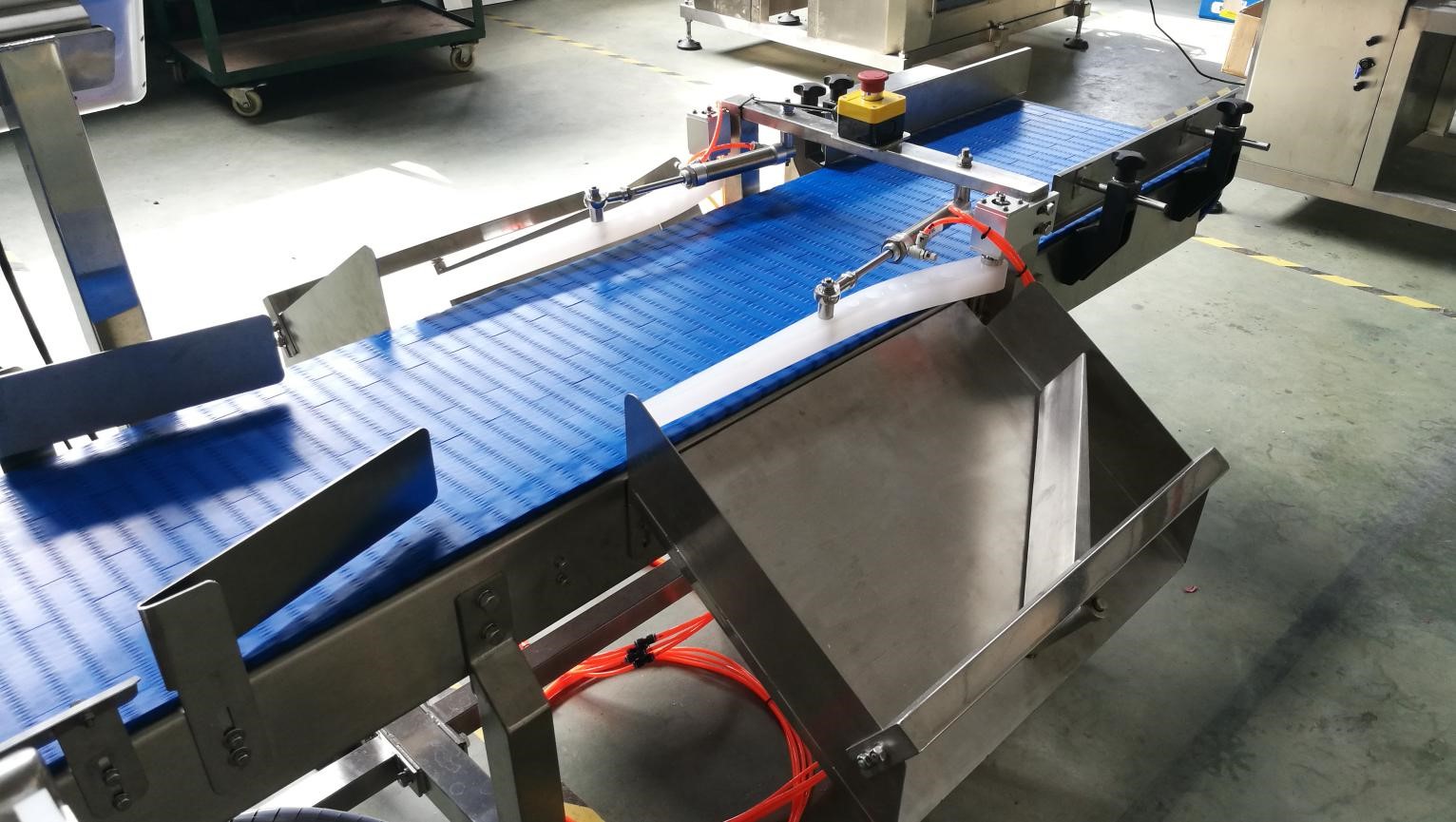

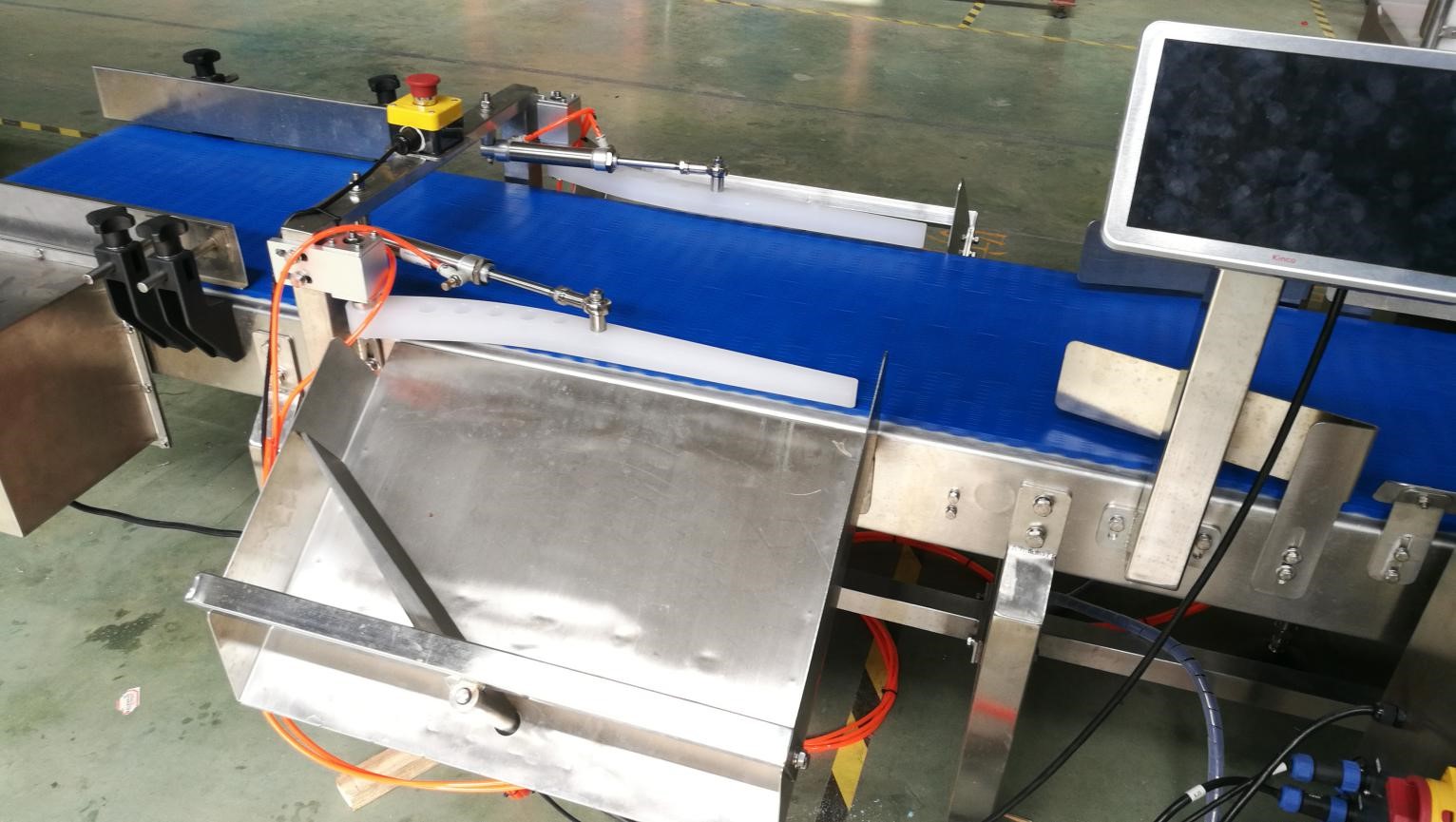

A reject arm will automatically screen the goods if it is overweight or underweight.

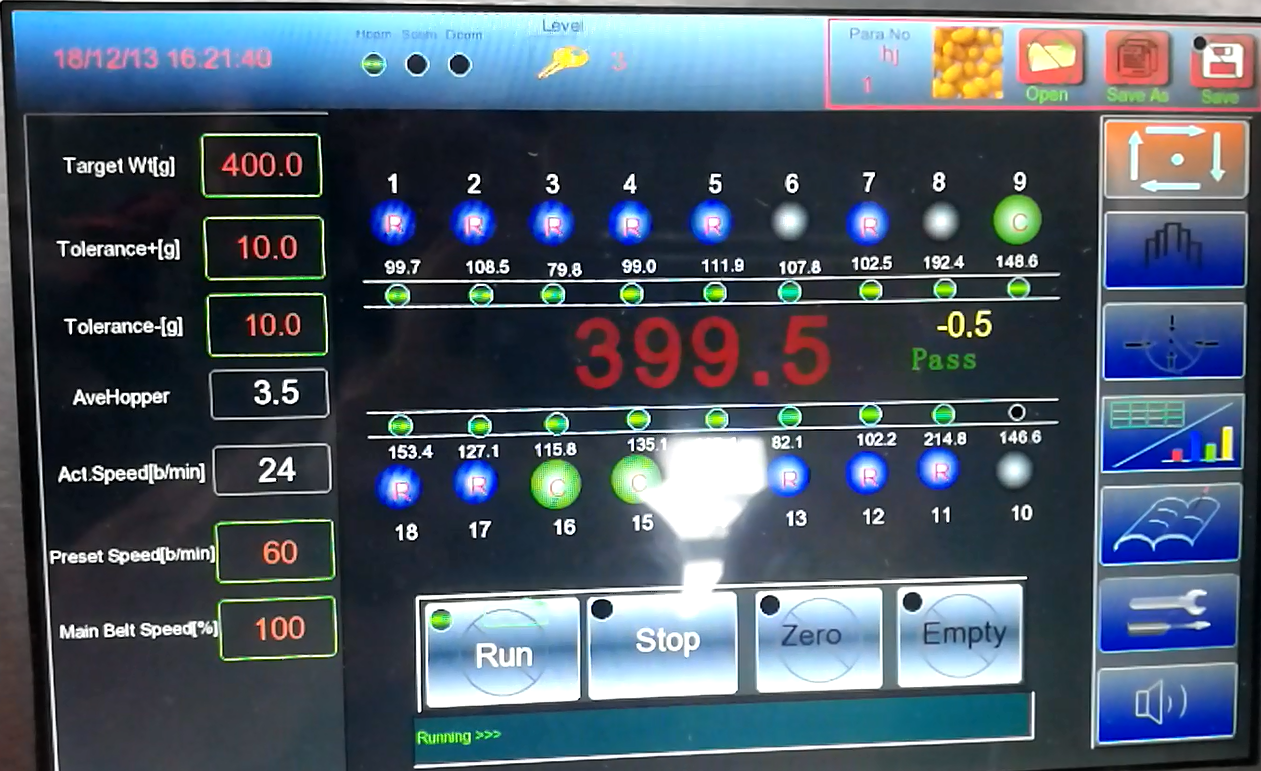

Touch screen and motherboard, easy to operate, more stability.
\
1. 18 heads linear combination weigher allows for high speed combination calculation. All weighing belts are automatically zeroed for improved precision.
2. All hoppers are easy to clean; thanks to the IP65 dust and water resistant construction.
3. It is easy to operate and inexpensive.
4. High compatibility: when combined with a conveyor belt and a packaging machine, a weighing and packaging system may be created.
5. Weigher size is customized based on product characteristics.
6. The belt's speed can be modified to suit the features of various products.
Model | SW-LC18 |
Weighing Head | 18 hoppers |
Capacity | 1-10 kg |
Hopper Length | 300 mm |
Speed | 5-30 packs/min |
Power Supply | 1.0 KW |
Weighing Method | Load cell |
Accuracy | ±0.1-5.0 grams (depends on actual products) |
Control Penal | 10" touch screen |
Voltage | 220V, 50HZ or 60HZ, single phase |
Drive System | Stepper motor |
Verbal communication include sounds, words
The belt multihead weigher is ideal for weighing products like fish, lobster, and other seafood that have an irregular shape, a big unit volume, or are easily destroyed during the weighing process.
