How to weigh granular or powder? by linear weighing machine? or by multihead weighing machine?
Smart Weight offers a variety of multihead weighers, linear weighers, and linear combination weighers in various sizes to meet the needs of different types of customers. Our weighing machines are marketed in a number of European and American nations, and they are favorably appreciated by our clients. The next sections concentrate on linear weighers.

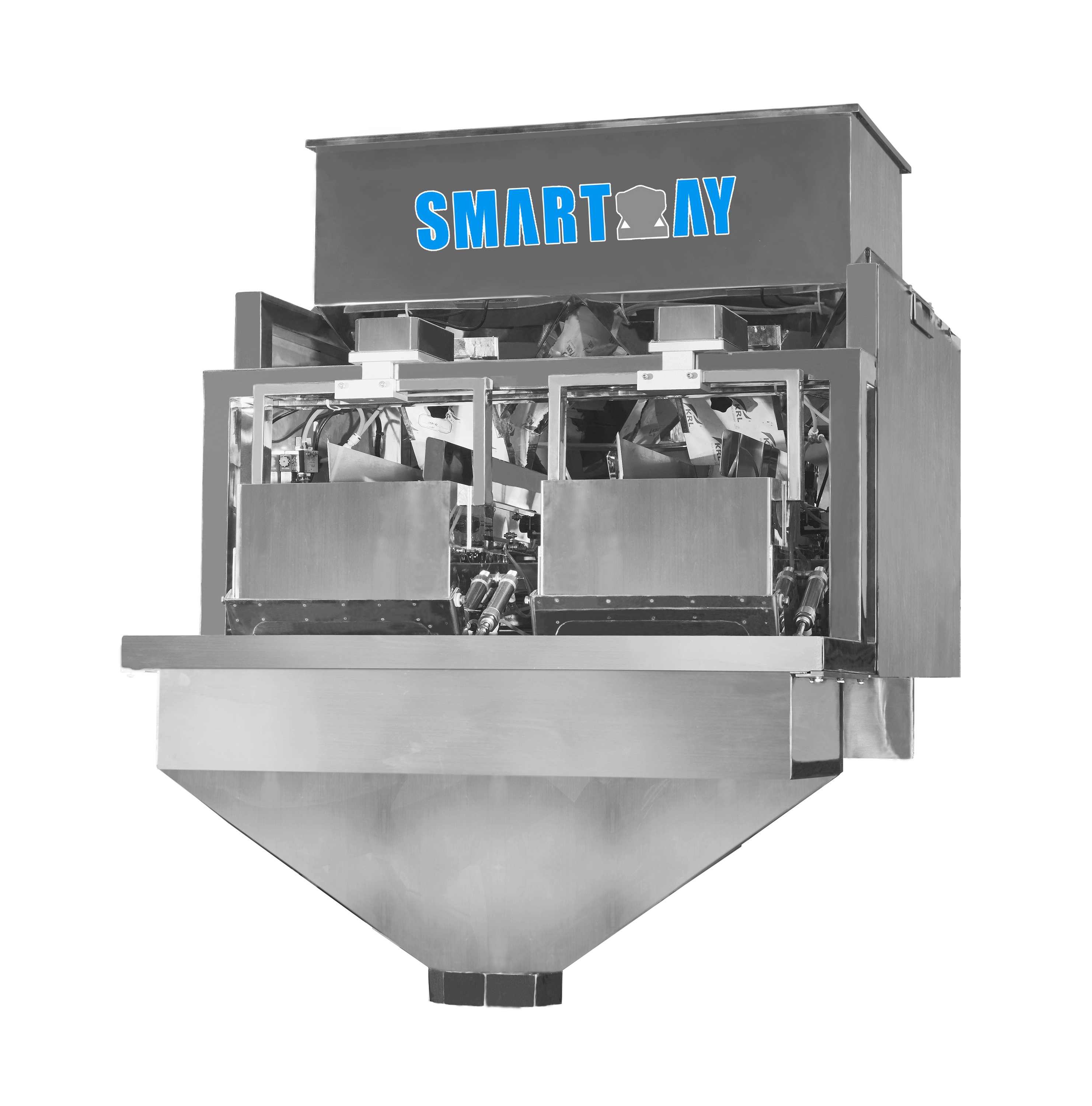

1. Convenient 2 Heads Linear Weigher
There are several weighing hopper variants to pick from on this two-head linear weigher with a big weighing range.
Model | SW-LW2 |
Single Dump Max. (g) | 100-2500G |
Weighing Accuracy(g) | 0.5-3g |
Max. Weighing Speed | 10-24wpm |
Weigh Hopper Volume | 5000ml |
Weighing bucket | 3.0/5.0/10/20L |
Control Penal | 7" Touch Screen |
Max. mix-products | 2 |
Power Requirement | 220V/50/60HZ 8A/1000W |
Packing Dimension(mm) | 1000(L)*1000(W)1000(H) |
Gross/Net Weight(kg) | 200/180kg |

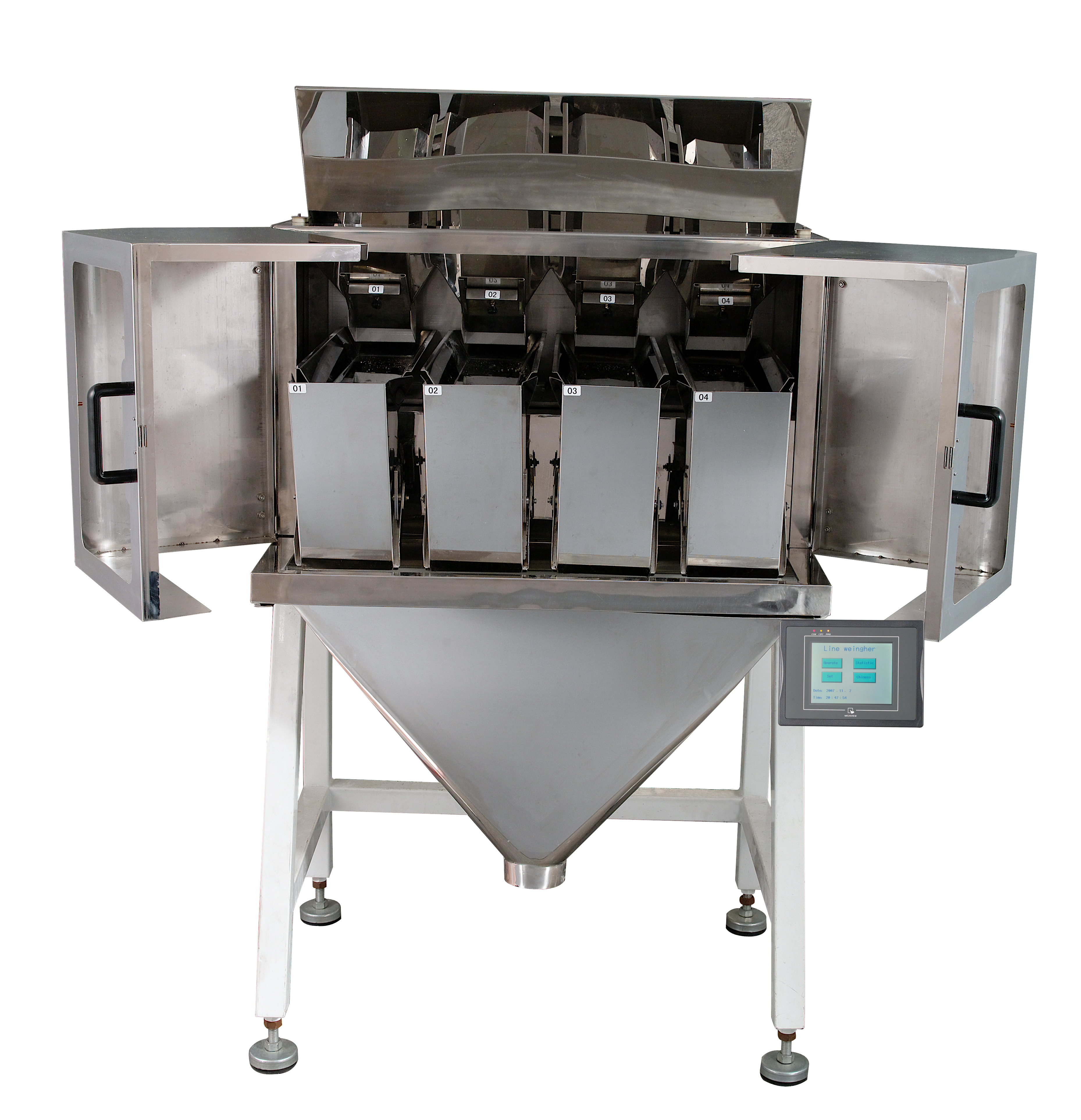

2. High-capacity Four-head Linear Weigher
4 heads Linear Weigher, with large capacity, high precision, and a wide weighing range, is a wise choice for manufacturers. A single head weighs mixed items and discharges them into the same bag.
Model | SW-LW4 |
Single Dump Max. (g) | 20-1800G |
Weighing Accuracy(g) | 0.2-2g |
Max. Weighing Speed | 10-45wpm |
Weigh Hopper Volume | 3000ml |
Control Penal | 7" Touch Screen |
Max. mix-products | 2 |
Power Requirement | 220V/50/60HZ 8A/1000W |
Packing Dimension(mm) | 1000(L)*1000(W)1000(H) |
Gross/Net Weight(kg) | 200/180kg |
3. Application
Linear weigher can be used to weigh a variety of granules products, including snacks, spice, medicine, etc. It is also suitable for powder like flour, starch, milk powder, and so on.
4. Various Specification
Our linear weighers are available in a variety of sizes for customers to choose from:
Model | SW-LW4 | SW-LW2 | SW-LW3 | SW-LW1 |
Single Dump Max. (g) | 20-1800G | 100-2500G | 20-1800 G | 20-1500 G |
Weighing Accuracy(g) | 0.2-2g | 0.5-3g | 0.2-2g | 0.2-2g |
Max. Weighing Speed | 10-45wpm | 10-24wpm | 10-35wpm | + 10wpm |
Weigh Hopper Volume | 3000ml | 5000ml | 3000ml | 2500ml |
Control Panel | 7” Touch Screen | 7” Touch Screen | 7" Touch Screen | 7" Touch Screen |
Max. mix-products | 4 | 2 | 3 | 1 |
Power Requirement | 220V/50/60HZ 8A/800W | 220V/50/60HZ 8A/1000W | 220V/50/60HZ 8A/800W | 220V/50/60HZ 8A/800W |
Packing Dimension(mm) | 1000(L)*1000(W)1000(H) | 1000(L)*1000(W)1000(H) | 1000(L)*1000(W)1000(H) | 1000(L)*1000(W)1000(H) |
Gross/Net Weight(kg) | 200/180kg | 200/180kg | 200/180kg | 180/150kg |
5. Features
Multifunction abound on our linear weighers.
It has a waterproof function and can be disassembled for cleaning.
Multiple languages are accessible on the operation screen, allowing a variety of parameters to be set artificially.
Production records can be checked by using the recording function.

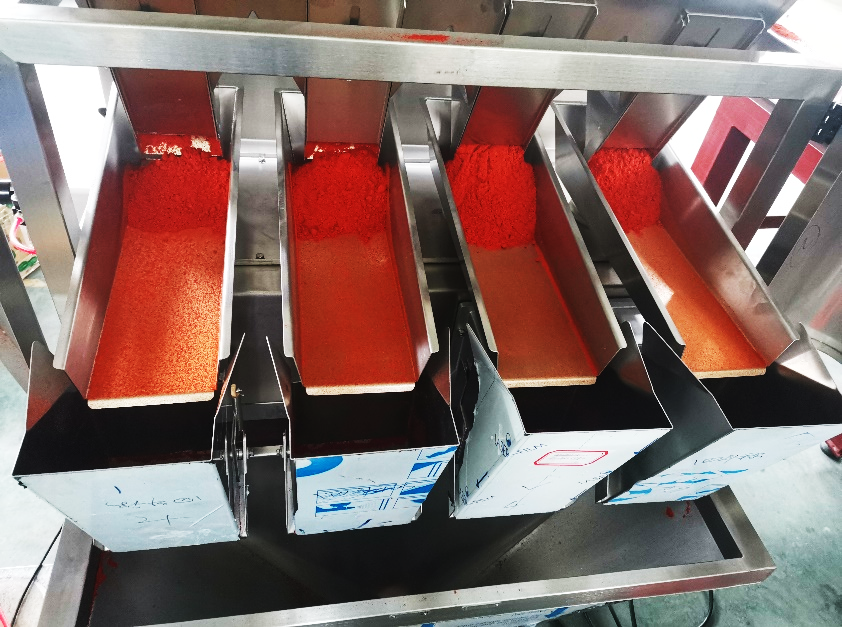

Vibration function: to keep granular material from sticking, the linear weigher vibrates constantly to allow it to fall.
Final Words
Customers trust our company because we produce linear weighing machines with high precision, low mistake rate, and faster speed.
In the meanwhile, our linear weighers are cost-effective and can help you save money. Long service life, cheap maintenance costs, and easy to damage.
Finally, our linear weighers come in a variety of specifications, allowing you to pick the proper one based on the materials you're working with.
