Ginger shredded Red Date Mixture Packaging Solution

A customer from Malaysia approached Smart Weigh for a solution that would automatically weigh and package a mixture of materials to improve efficiency while saving as much cost and space as possible. Then Smart Weigh recommended Vertical Mix Packaging System.

Suitable for mixed granular materials packaging: such as ginger shredded red dates packets, flower tea, health tea, soup packets, etc.

A variety of granular materials are mixed, such as flakes red dates, filaments ginger, etc., requiring precise control of the ratio and weight of each material.

Multiple weighing machines and multiple packing machines are more space consuming and not conducive to small scale shops to increase production.

l Multiple multi-head weighers weigh different materials to ensure accurate weighing of each material.

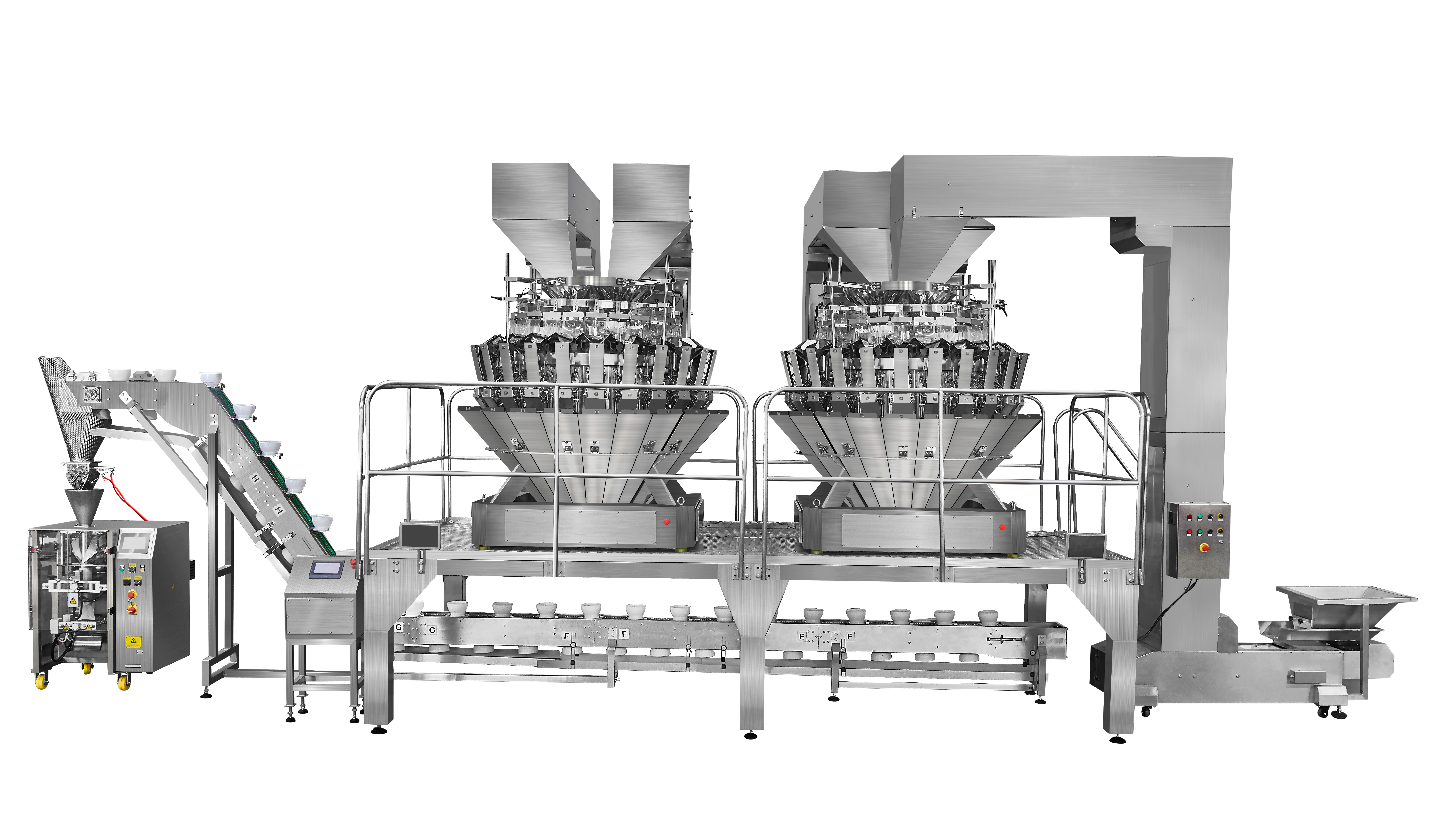

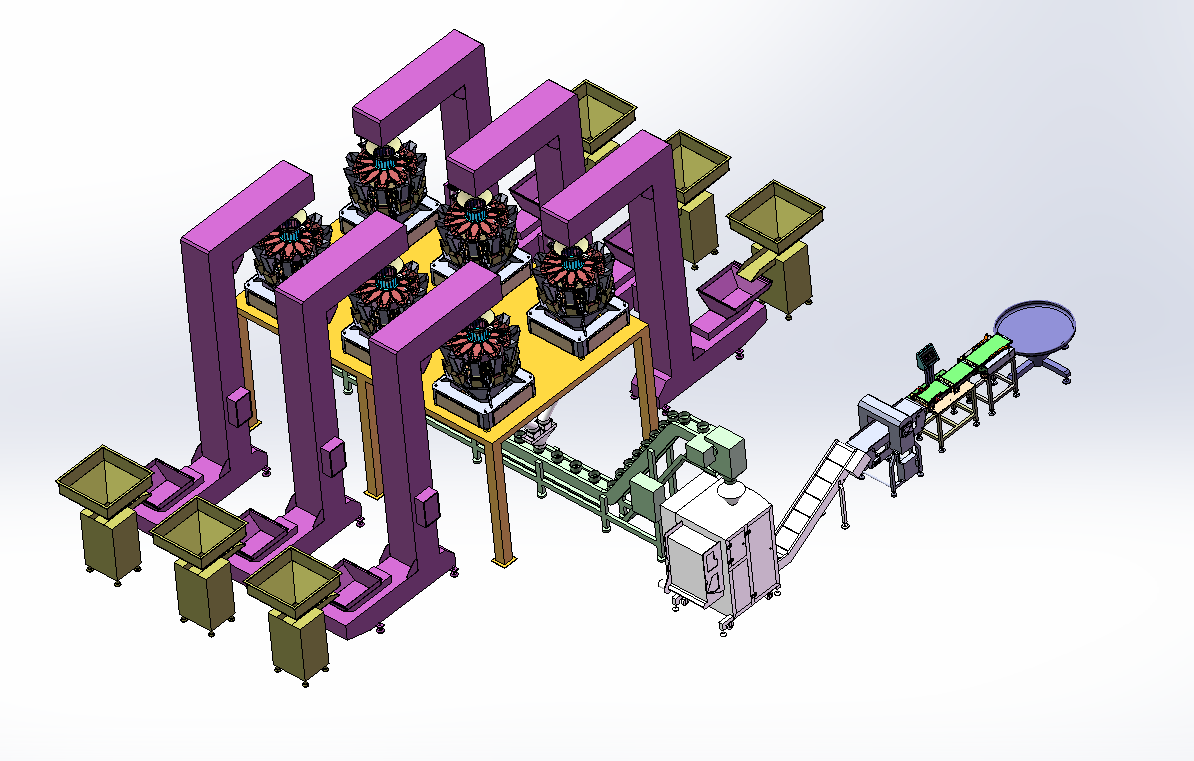

l Multiple multihead weighers are connected to a vertical packaging machine, which saves space to the greatest extent and realizes the packaging of mixed materials.

l The weighed material is transported to the VFFS packing machine through secondary lifting, which is suitable for lower workshops.

ü  PLC control system, more stable and accuracy output signal, bag-making, measuring, filling, printing, cutting, finished in one operation;

ü Separate circuit boxes for pneumatic and power control. Low noise, and more stable;

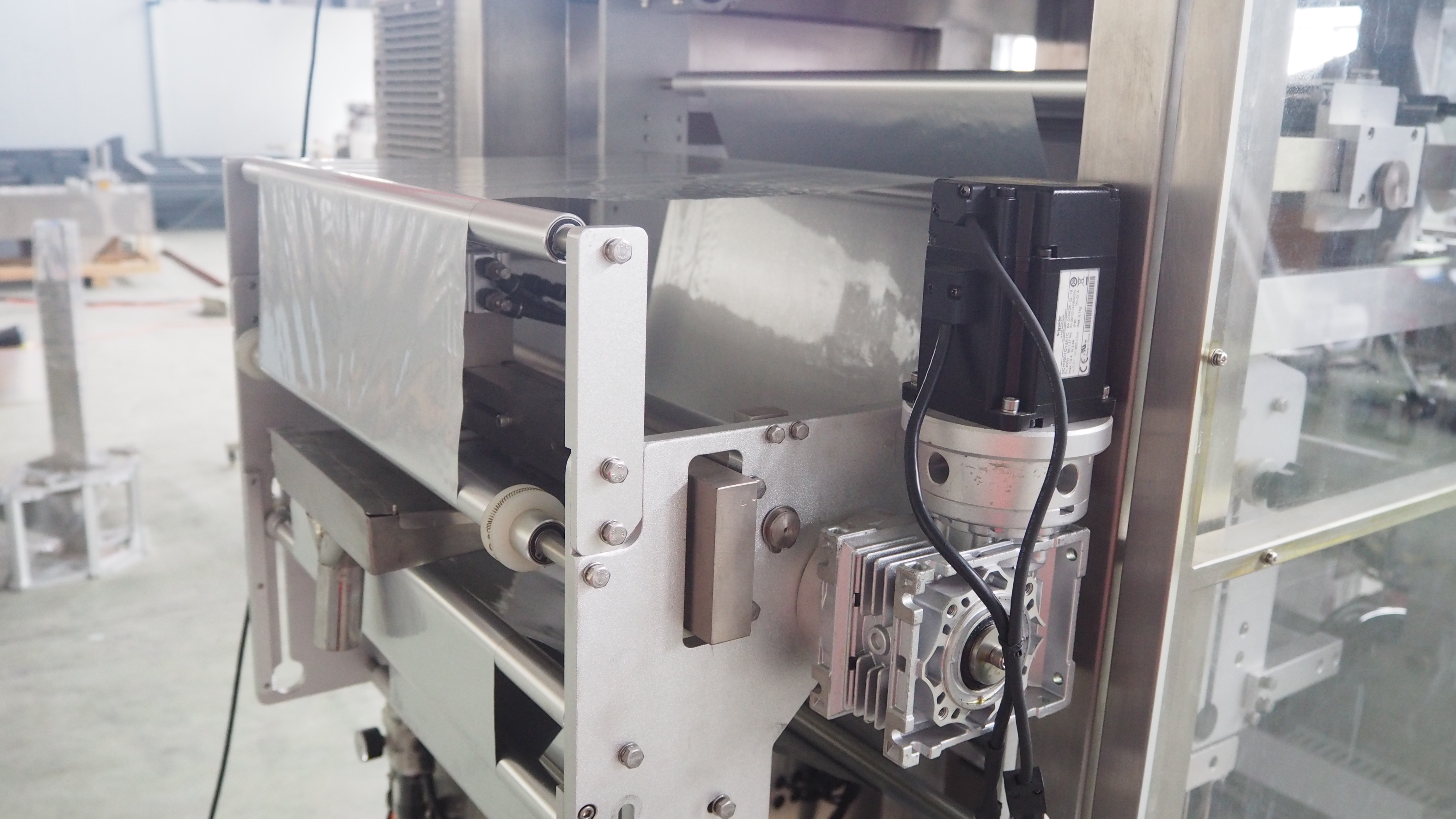

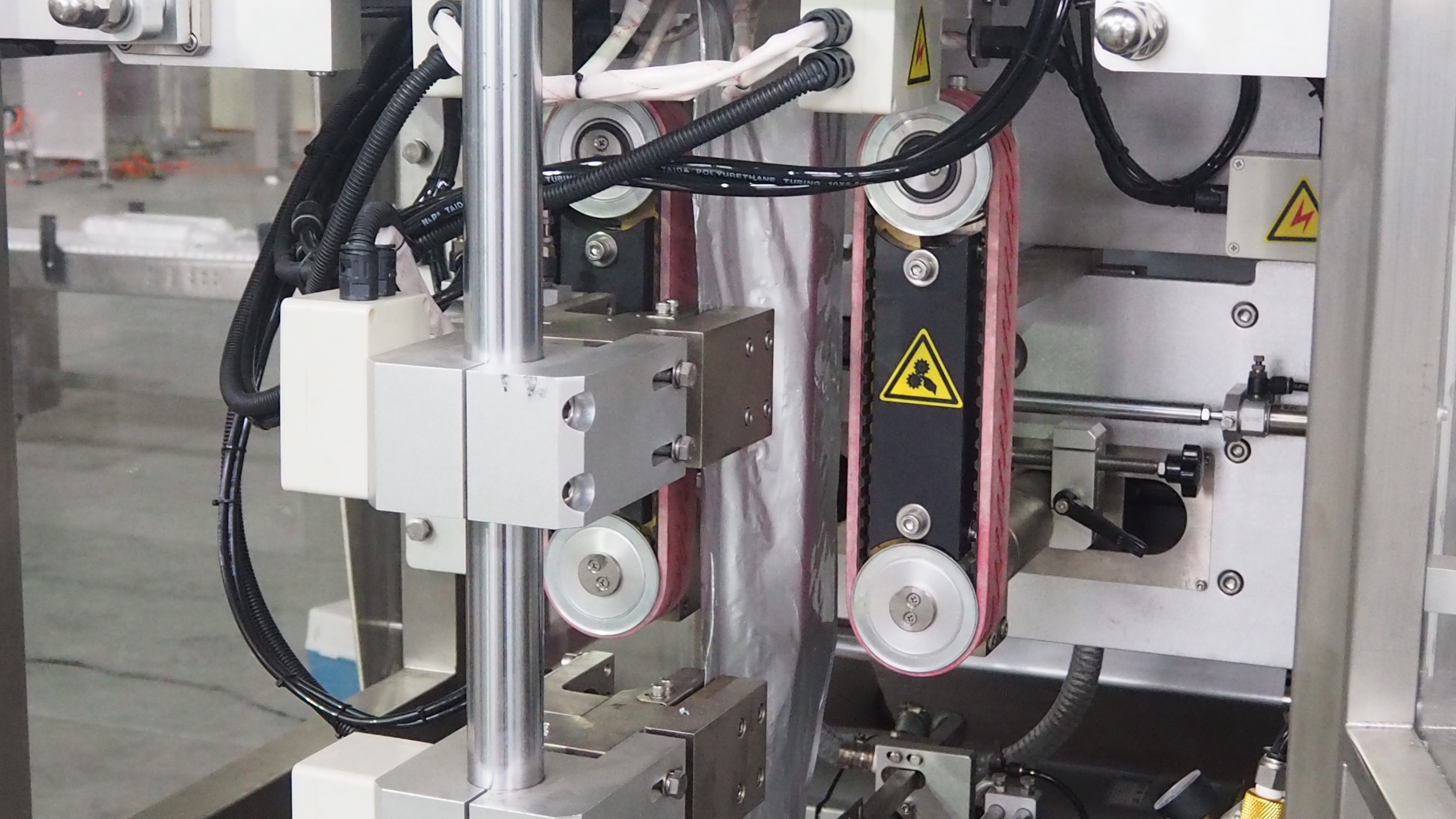

ü Film-pulling with servo motor for precision, pulling belt with cover to protect moisture;

ü Open door alarm and stop machine running in any condition for safety regulation;

ü Film centering automatically is available (Optional);

ü only control touch screen to adjust bag deviation. Simple operation;

ü Film in roller can be locked and unlocked by air, convenient while change film;

1. Pour the material into the vibrating feeder, and then lift it to the top of the multihead weigher to add material;

2. The computerized combination weigher completes the automatic weighing according to the set weight;

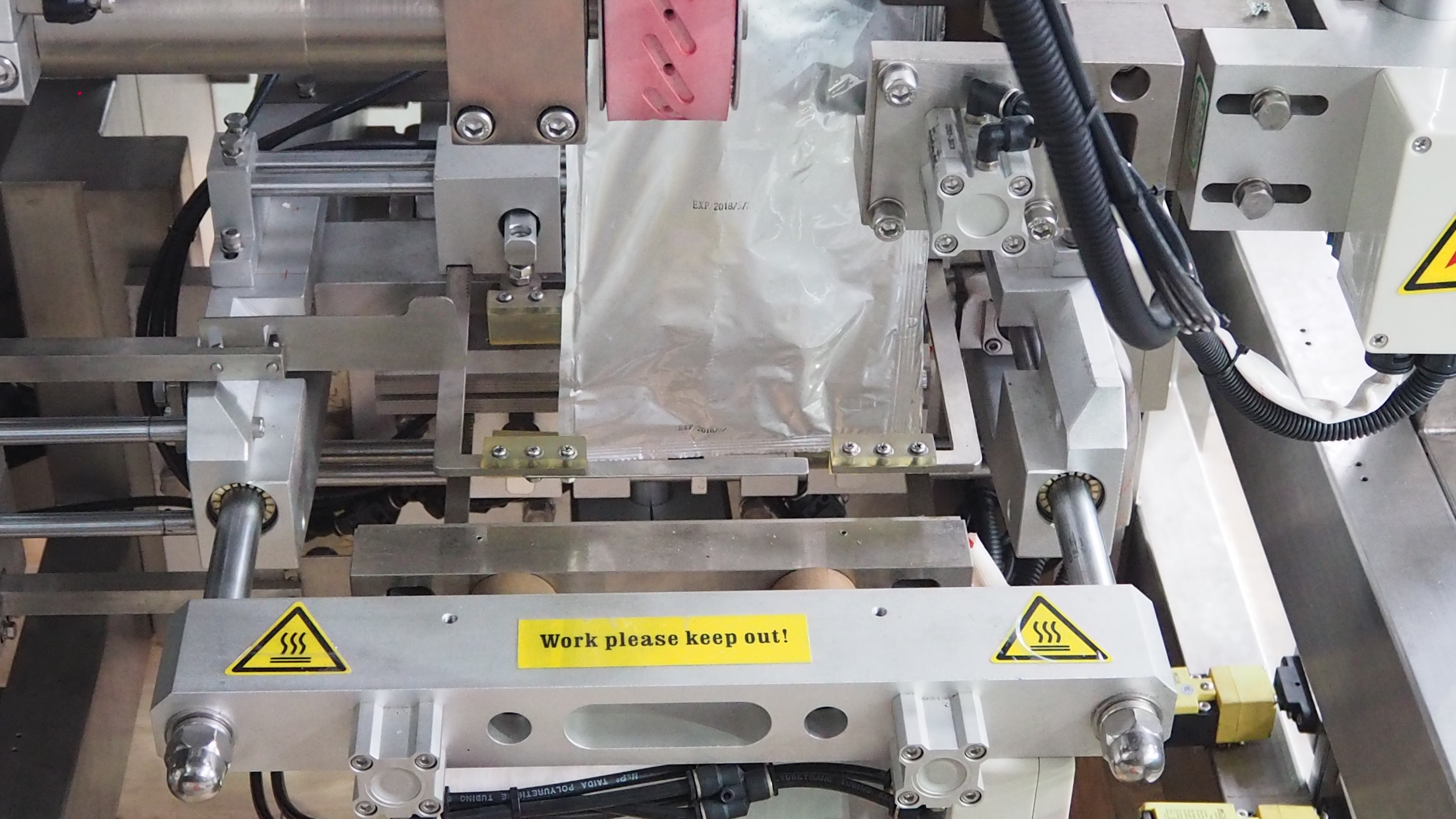

3. The set weight of the product is dropped into the packing machine, and the packaging film is finished forming and sealing;

4. The bag enters the metal detector, and if there contains any mental, it will give the signal to the check weigher, and then the product will be rejected when it enters.

5. No metal bags into the check weigher, overweight or over-light will be rejected to the other side, qualified products into the rotary table;

6. The workers will load the finished bags into cartons from the top of the rotary table;



The qualification of the manufacturer. It includes the awareness of the company、the ability of researching and developing、customer quantities and certificates.

The weighing range of multi-head weigher packing machine. There are 1~100 grams, 10~1000 grams, 100~5000 grams, 100~10000grams, the weighing accuracy depends on the weigher weight range. If you choose 100-5000 grams range to weigh 200 grams’ products, the accuracy will be bigger. But you need to choose the weigher packing machine on the basis of the product volume.

The speed of the packing machine. The speed is inversely correlated with its accuracy. The higher speed is; the worse the accuracy is. For semi-automatic weighing packing machine, it would be better to take a worker’s capacity into consideration. It’s the best choice for getting a packing machine solution from Smart Weigh Packaging Machinery, you will get a suitable and accurate quotation with electrical configuration.

The complexity of operating the machine. The operation should be an important point when selecting the multihead weigher packing machine supplier. The worker can operate and maintain it easily in daily production, save more time.

The after-sales service. It includes machine installation, machine debugging, training, maintenance and etc. Smart Weigh Packaging Machinery has a complete after-sales and before-sales service.

Other conditions include but not limited to machine appearance, the value of money, free spare parts, transportation, delivery, payment terms and etc.
