How does the pouch packing machine work? What is the benefit to choose smartweigh premade pouch packing machine?

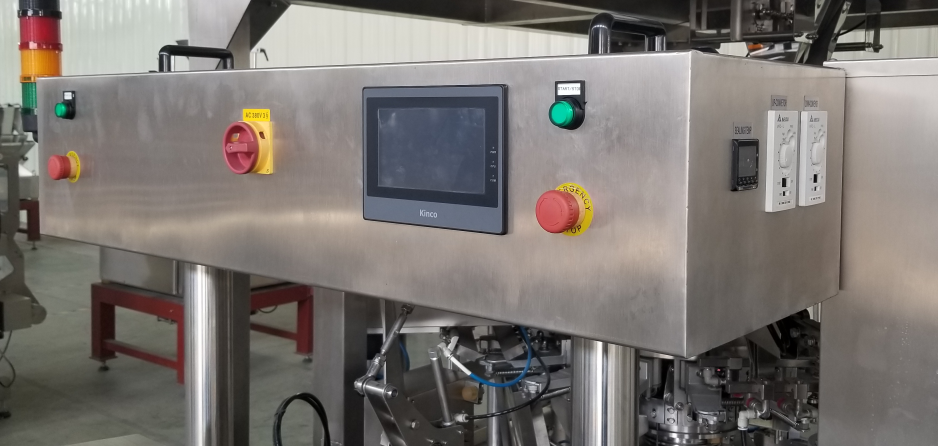

Control panel 7’’HMI color touch screen, with parameter page setting

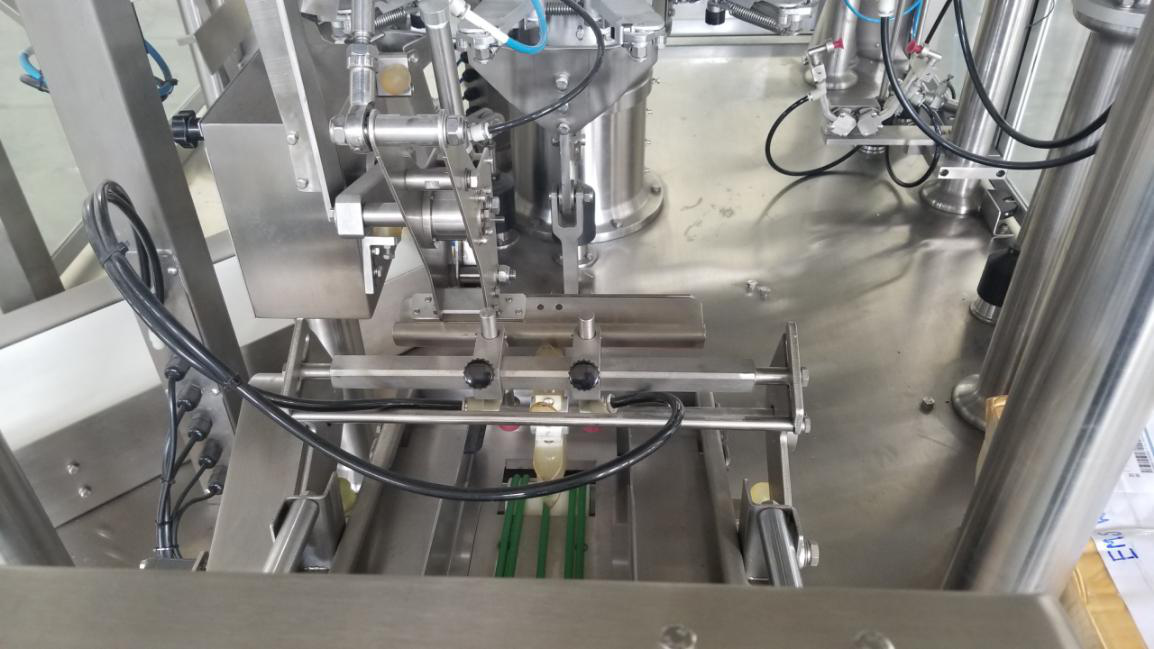

1^st station bag picking up, with sensor control, can place around 200 bags per time on the belt.

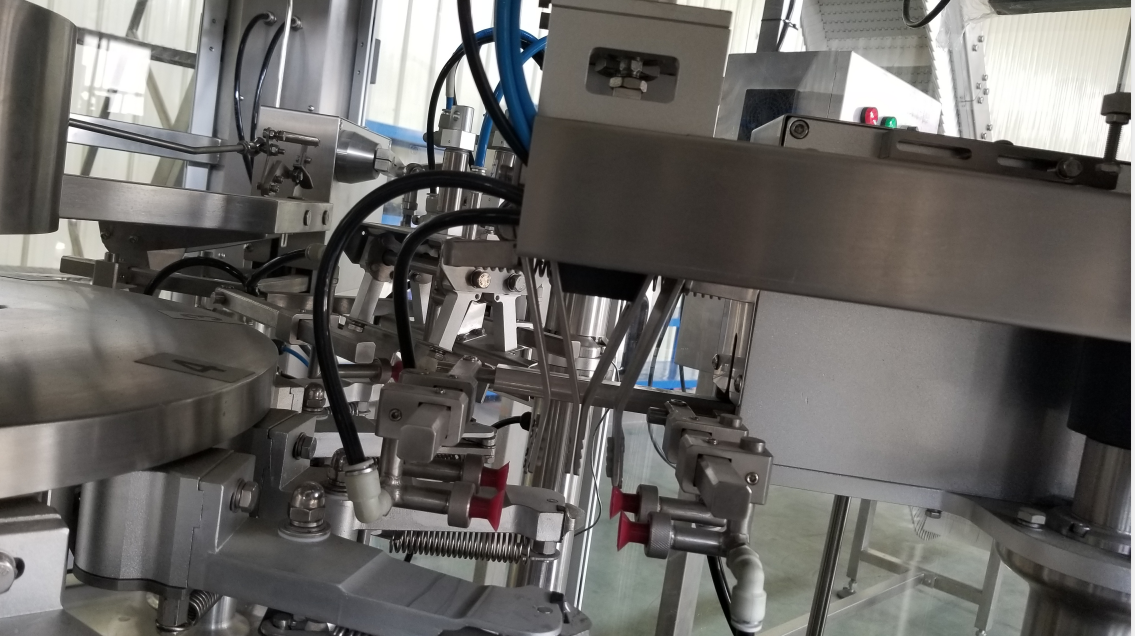

2^nd zpper openning station, if your bag is with zipper, we can add this option to open your zipper bag, with cylinder control or servo control to achieve good rate in openning.

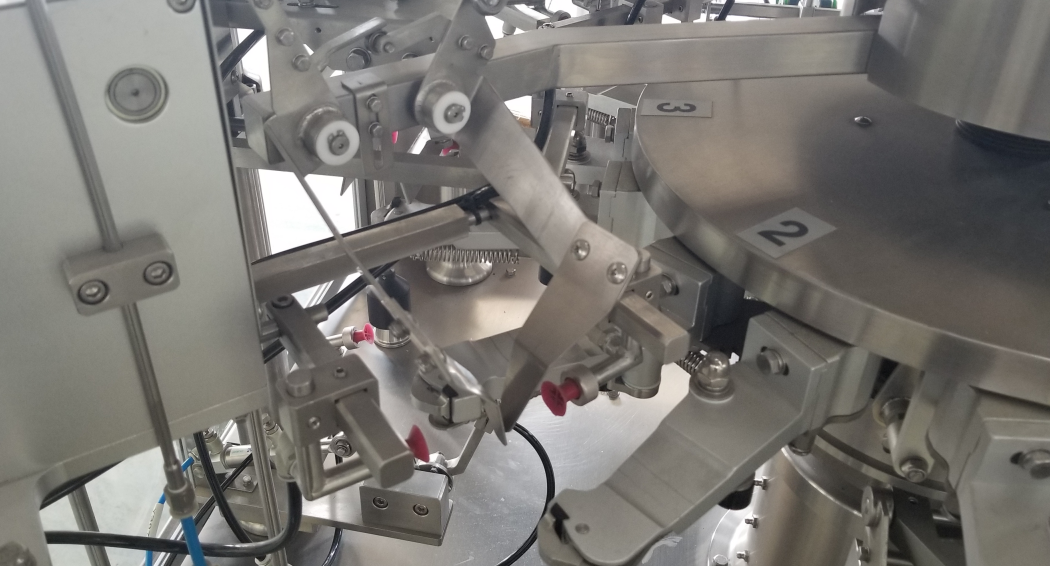

3^rd station bag mouth openning and bottom bag openning

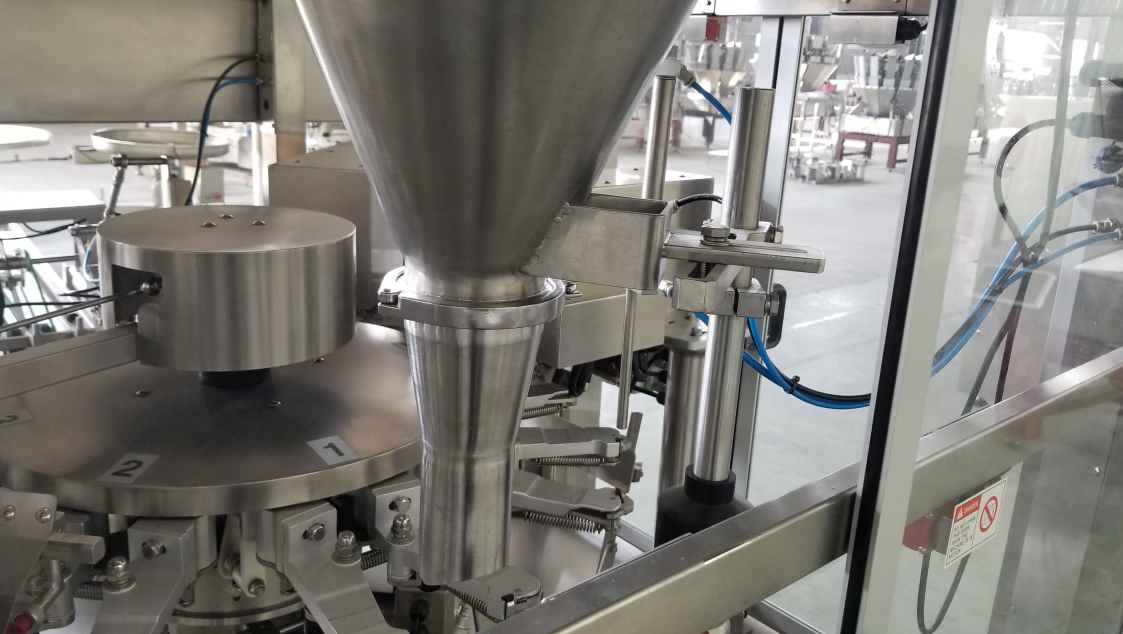

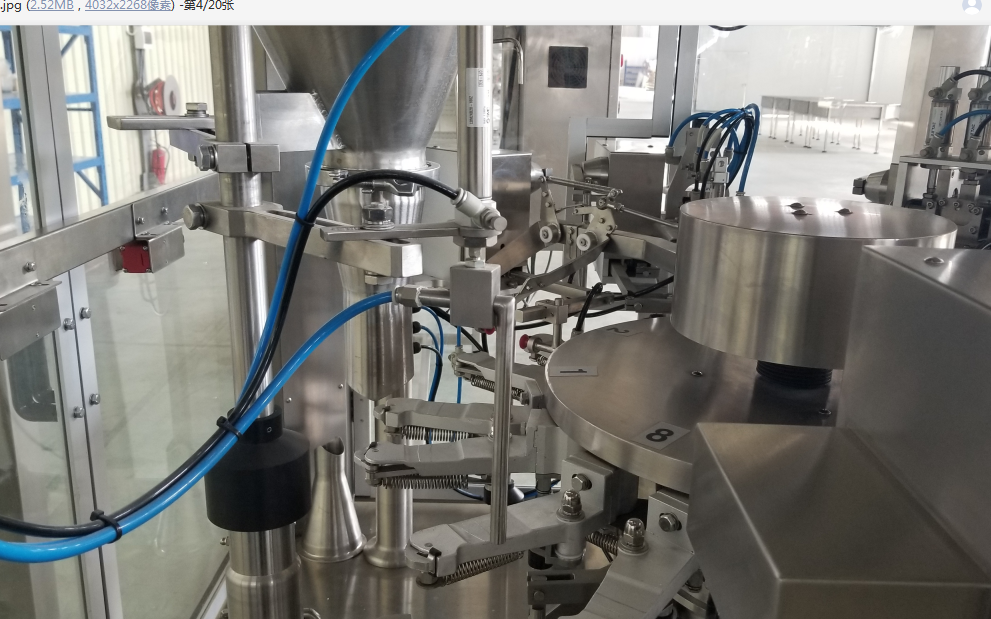

4^th filing station( there is sensor control to check whether the bag is good openning or not, if not, weigher will not dump the product to the bag, then it will save the product and not ruin the mezz of the table. Besides, if the weigher not ready for discharge product, the packing machine can pause until it was filled, once it is filled, it will trigger automatically, and move forward( stagger dump feature)

As long as product is filled, there is nitrogen inserting into the bag if you connect with your gas tank or nitrogen generator, this can keep product fresh and longer than without nitrogene.

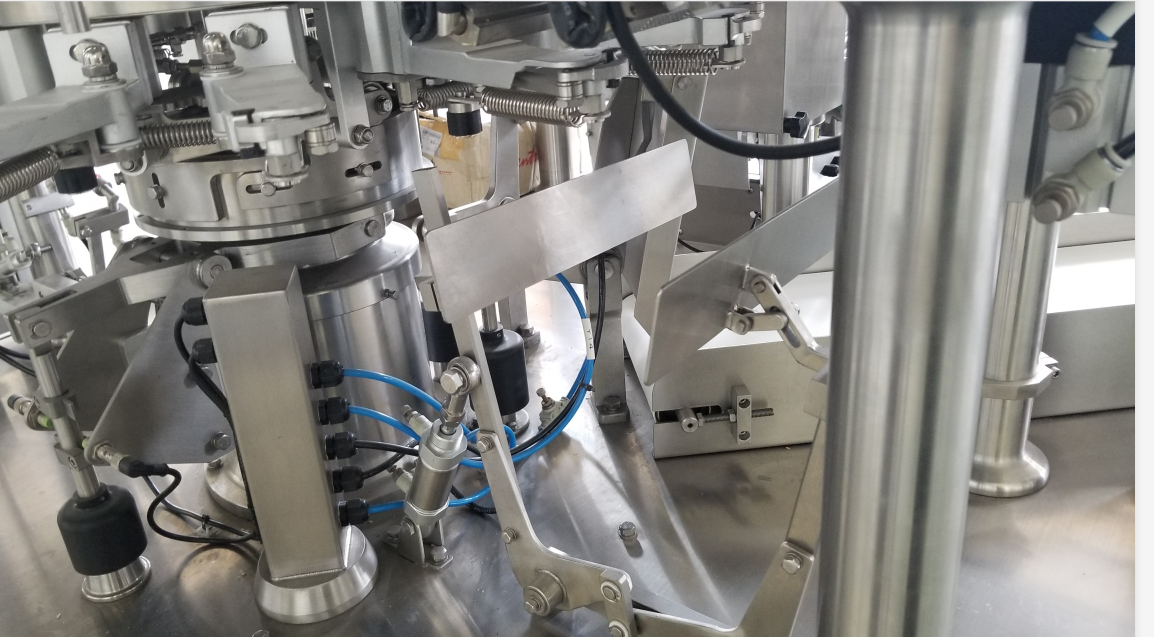

The sealing on rotary packaging machine as below picture, it have a radian angle, thus the top seal can make max up to 15mm,

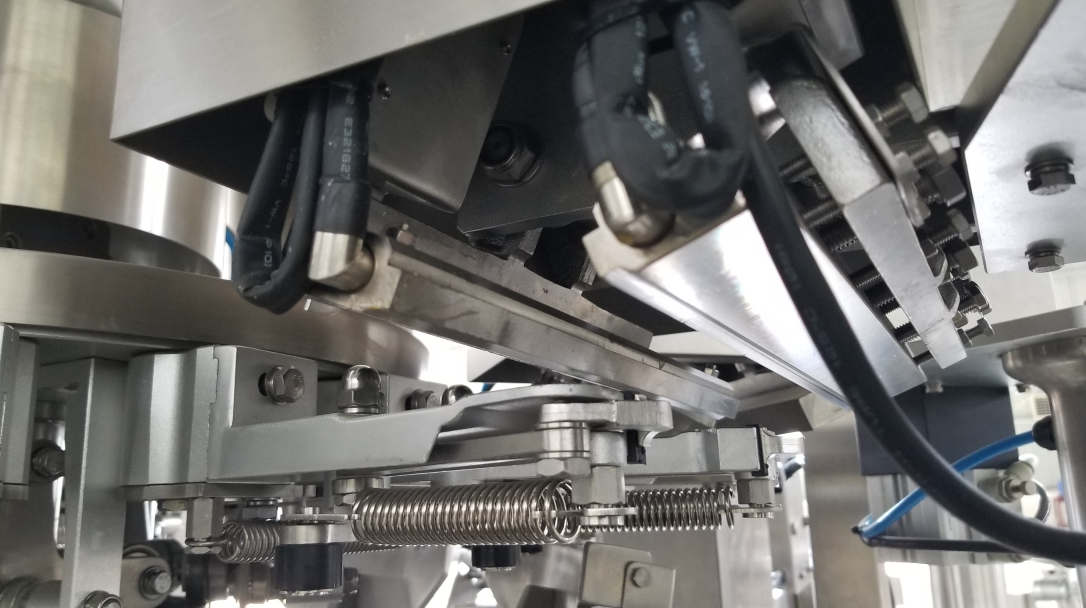

1^st sealing to heat seal

2^nd sealing cold seal, to ensure the sealing better in condition

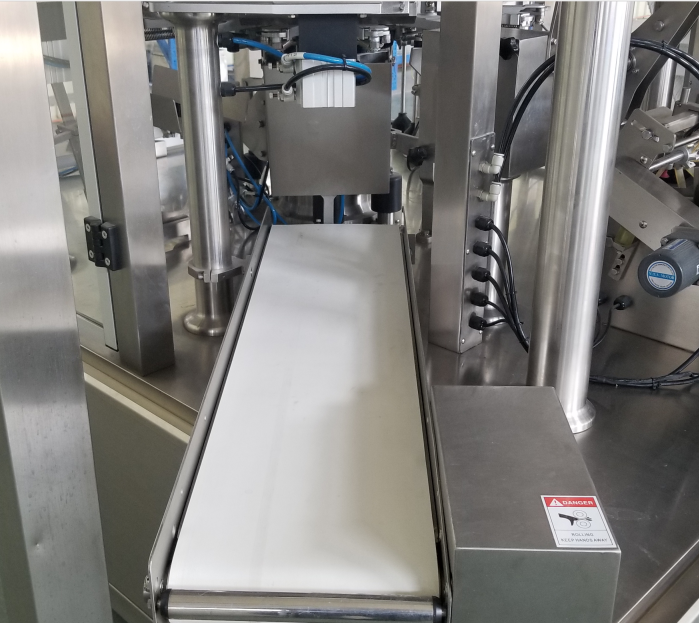

8^th station outfeed conveyor, product will be taken away from this belt, then it can move to next machine like check weigher or metal detector or collecting table
