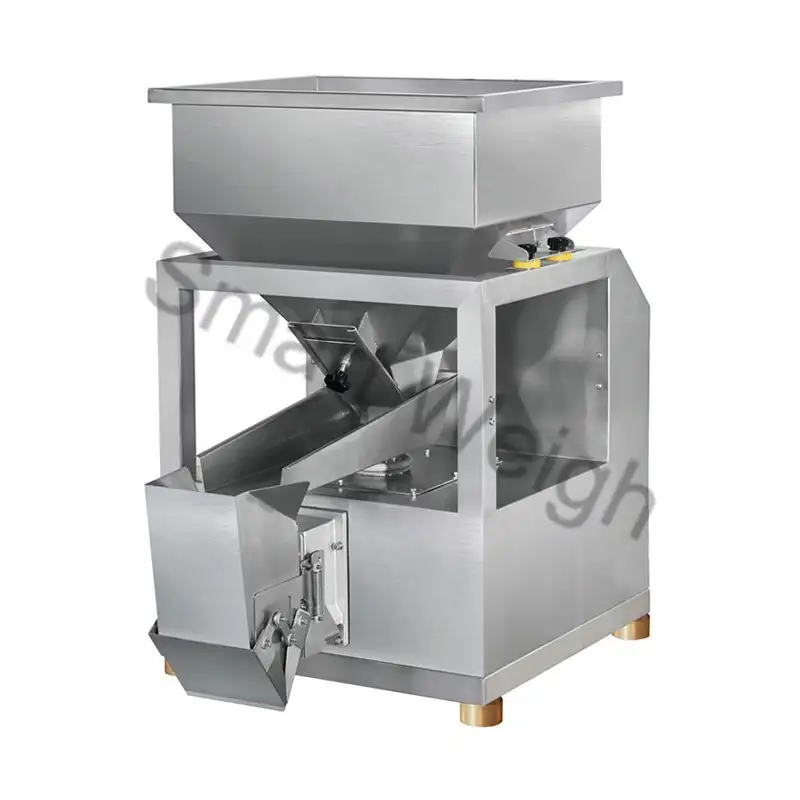

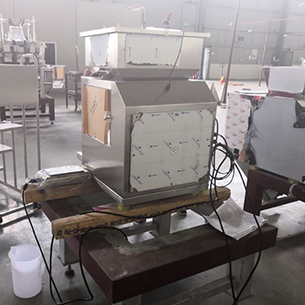

1 Head Linear Weigher

Single head linear weigher

Function:

weighing and filling

MOQ:

1 set

Certificate:

Material:

SUS304, SUS316

Country of origin:

China

Brand:

Smart Weigh

Inquiry

Write a Review

About Smart Weigh

Smart Package Beyond Expected

Smart Weigh is a global leader in high-precision weighing and integrated packaging systems, trusted by 1,000+ customers and 2,000+ packing lines worldwide. With local support in Indonesia, Europe, USA and UAE, we deliver turnkey packaging line solutions from feeding to palletizing.

Send Your Inqulry

More Choices

Auto filling coffee bean linear weigher packing system small particle packaging machine for premade bag

Smart Weigh SW-PL8 Linear Weigher Premade Bag Packing System

Fully automatic weighting milk powder packing machine premade pouch packaging machine with Screw matering part

Multi-Function rotary Milk powder Packaging Machine

Automatic custom packaging system 12 heads belt multihead linear combination weigher

12 head linear combination weigher

Frozen Food Packaging Machine Manfacturer | Smart Weigh

Offer frozen food multihead weigher packaging machine for pillow bags and vacuum package, auto weigh, fill and pack.

SPECIFICATION

Model	SW-LW1
Single Dump Max. (g)	20-1500 G
Weighing Accuracy(g)	0.2-2g
Max. Weighing Speed	+ 10 dumps per minute
Weigh Hopper Volume	2500ml
Control Penal	7" Touch Screen
Power Supply	220V/50/60HZ 8A/800W
Packing Dimension(mm)	*1000(L)1000(W)1000(H)**
Gross/Net Weight(kg)	180/150kg

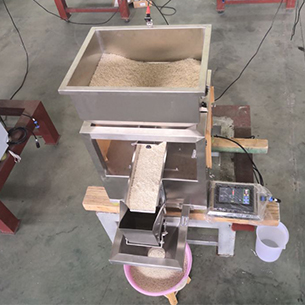

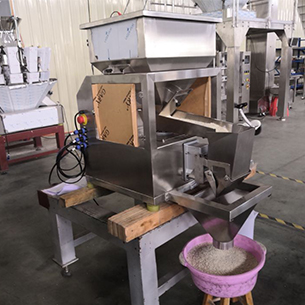

MACHINE DETAILS

Left view

Top view

Back view

APPLICATION

Beans

Flakes

Rice

Sugar

Nuts

Seeds

Sometimes, linear weighers are able to weigh products seasoning powder, ground coffee, pet food and etc, the most efficient way is to contact our sales team, getting your packaging solution.

FEATURES

◇ Adopt no-grade vibrating feeding system to make products flowing more fluently;

◆ The program can be freely adjusted according to production condition;

◇ Adopt high precision digital load cell;

◆ Stable PLC or modular system control;

◇ Color touch screen with Multilanguage control panel;

◆ Sanitation with stainless steel 304 construction

◇ The parts contacted products can be easily mounted without tools;

Difficulties

1. Slow speed and big weighing tolerance;
2. Limited factory area for the machine;
3. Hard to control filling time;
4. Don't know when should feed products into storage hopper

Solutions

1. Linear weighed weighs as to the preset weight then fills automatically, weighing tolerance control within 1-3 grams;
2. Small volume, the weigher is only 1 CBM;
3. Work with foot panel, easy to control every filling time;
4. The weigher is with a photo sensor, if it works with conveyor, weigher will send a signal to conveyor feed products.

Linear weigher is a type weighing machine, surely it could equips with various automatic bagging machine, such as vertical form fill seal machine, premade pouch packing machine or carton packing machine. But you already have the manual sealing machine, we offer foot pedal which controlling weigher filling.

DRAWING

1 Head Linear Weigher 11
