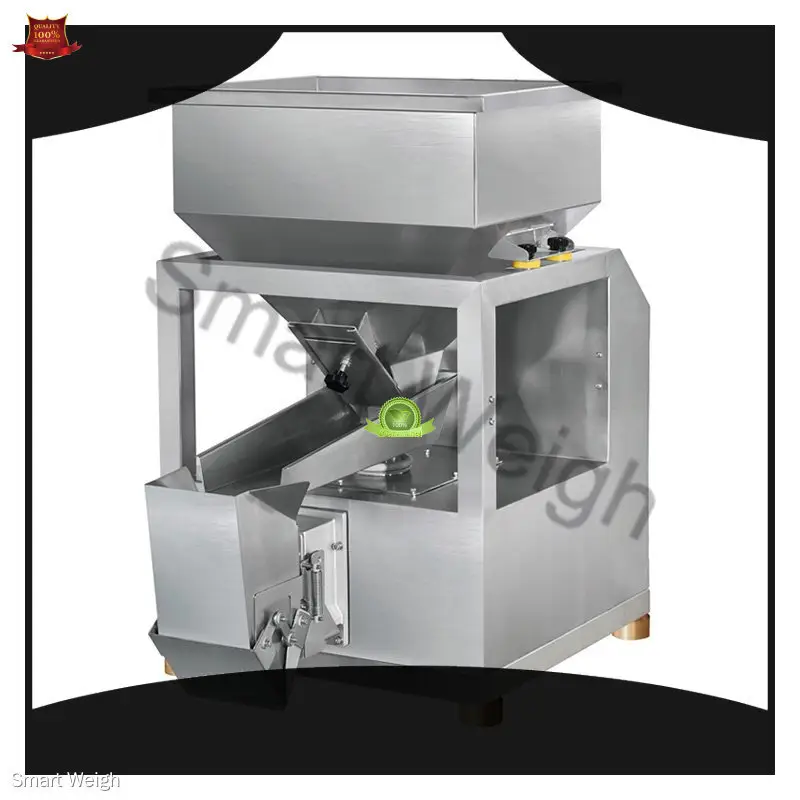

linear weigher machine at Wholesale Prices | Smart Weigh
Smart Weigh has to go through thorough disinfection before it goes out of the factory. Especially the parts that directly contact with food such as food trays are required to disinfect and sterilize to make sure no contaminant inside.
Guided by scientific and technological innovation, Smart Weigh always keeps outward-oriented and sticks to the positive development on the basis of technological innovation. linear weigher machine Smart Weigh is a comprehensive manufacturer and supplier of high-quality products and one-stop service. We will, as always, actively provide prompt services such. For more details about our linear weigher machine and other products, just let us know.Smart Weigh is reasonably and hygienically designed. To ensure a clean food dehydration process, the parts are properly cleaned before assembly, while the crevices or dead areas are designed with dismantled function for thoroughly cleaning.
SPECIFICATION
Model | SW-LW1 |
Single Dump Max. (g) | 20-1500 G |
Weighing Accuracy(g) | 0.2-2g |
Max. Weighing Speed | + 10 dumps per minute |
Weigh Hopper Volume | 2500ml |
Control Penal | 7" Touch Screen |
Power Supply | 220V/50/60HZ 8A/800W |
Packing Dimension(mm) | 1000(L)*1000(W)1000(H) |
Gross/Net Weight(kg) | 180/150kg |
MACHINE DETAILS
Left view
Top view
Back view
APPLICATION
Beans
Flakes
Rice
Sugar
Nuts
Seeds
Sometimes, linear weighers are able to weigh products seasoning powder, ground coffee, pet food and etc, the most efficient way is to contact our sales team, getting your packaging solution.
FEATURES
◇ Adopt no-grade vibrating feeding system to make products flowing more fluently;
◆ The program can be freely adjusted according to production condition;
◇ Adopt high precision digital load cell;
◆ Stable PLC or modular system control;
◇ Color touch screen with Multilanguage control panel;
◆ Sanitation with stainless steel 304 construction
◇ The parts contacted products can be easily mounted without tools;
Difficulties
1. Slow speed and big weighing tolerance;
2. Limited factory area for the machine;
3. Hard to control filling time;
4. Don't know when should feed products into storage hopper
PK
Solutions
1. Linear weighed weighs as to the preset weight then fills automatically, weighing tolerance control within 1-3 grams;
2. Small volume, the weigher is only 1 CBM;
3. Work with foot panel, easy to control every filling time;
4. The weigher is with a photo sensor, if it works with conveyor, weigher will send a signal to conveyor feed products.
Linear weigher is a type weighing machine, surely it could equips with various automatic bagging machine, such as vertical form fill seal machine, premade pouch packing machine or carton packing machine. But you already have the manual sealing machine, we offer foot pedal which controlling weigher filling.
DRAWING
