Linear belt weigher, does it work that well?

×
Linear belt weigher, does it work that well?

Smart Weigh offers an efficient weighing and packaging solution for weighing carrots, eggplant, cabbage, lettuce and other products. The linear combination weigher’s features, specifications, applications and so on are listed below.

Principle of Operation


The semi-automatic linear combination weighing machine is simple to operate, all that is required of the operator is to place the product on the weighing belt. Since the individual actuating units are connected to the control computer, the processor immediately calculates the appropriate combination and triggers the corresponding actuating units' conveyor belts. Then products are discharged into the output conveyor, allowing for quick transport.

Linear belt weigher, does it work that well? 1

Specification

Model

SW-LC12

Weigh head

12

Capacity

10-1500 g

Combine Rate

10-6000 g

 Speed

5-30 bpm

Weigh Belt Size

220L*120W mm

Collating Belt Size

1350L*165W

Power Supply

1.0 KW

Packing Size

1750L*1350W*1000H mm

G/N Weight

250/300kg

Weighing method

Load cell

Accuracy

+ 0.1-3.0 g

Control Penal

9.7" Touch Screen

Voltage

220V/50HZ or 60HZ; Single   Phase

Drive System

Stepper Motor

Features

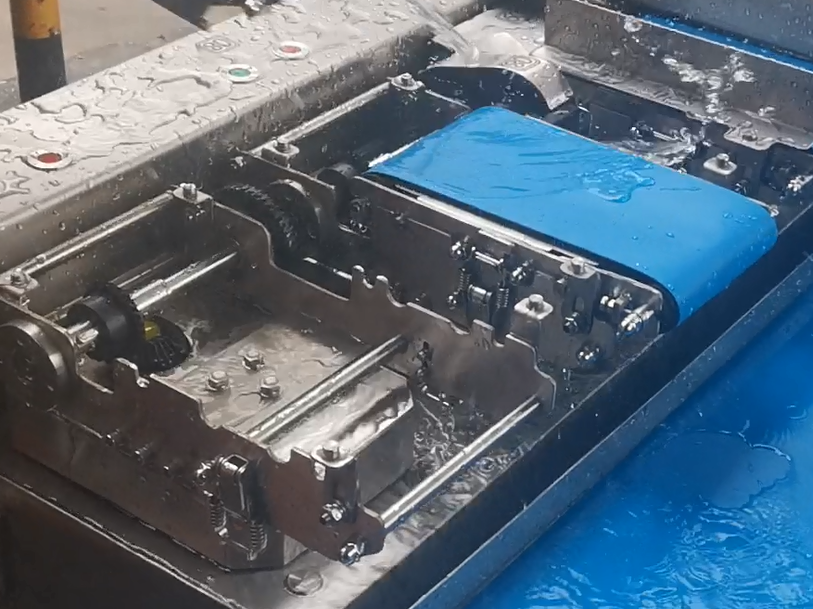

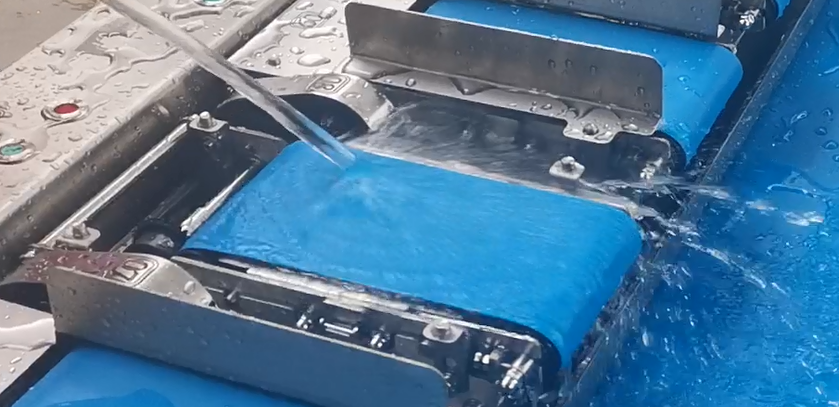

1.    Multihead linear combination weigher is easy to disassemble and install, belt is waterproof and easy to clean.

Linear belt weigher, does it work that well? 2Linear belt weigher, does it work that well? 3

2.    Linear belt weigher are cost-effective.

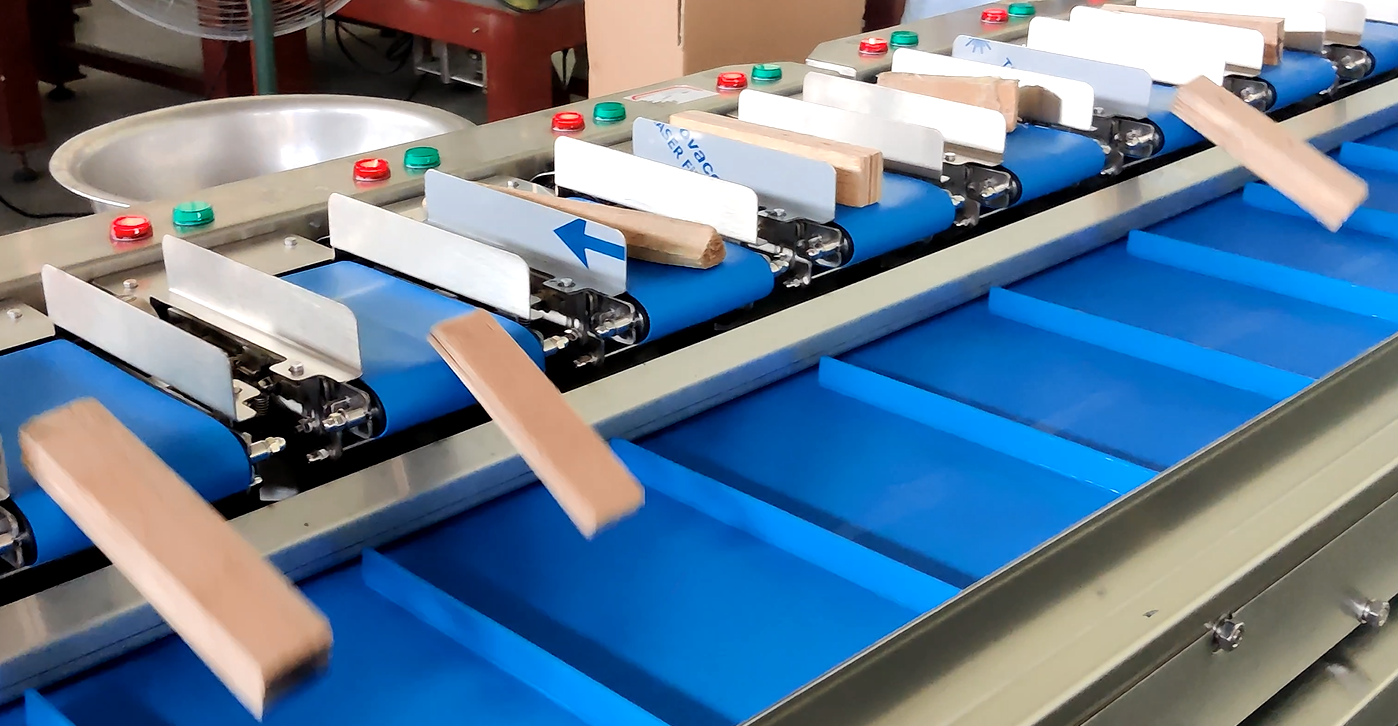

3.    The upright bar prevents rolling of round and cylindrical products.

Linear belt weigher, does it work that well? 4

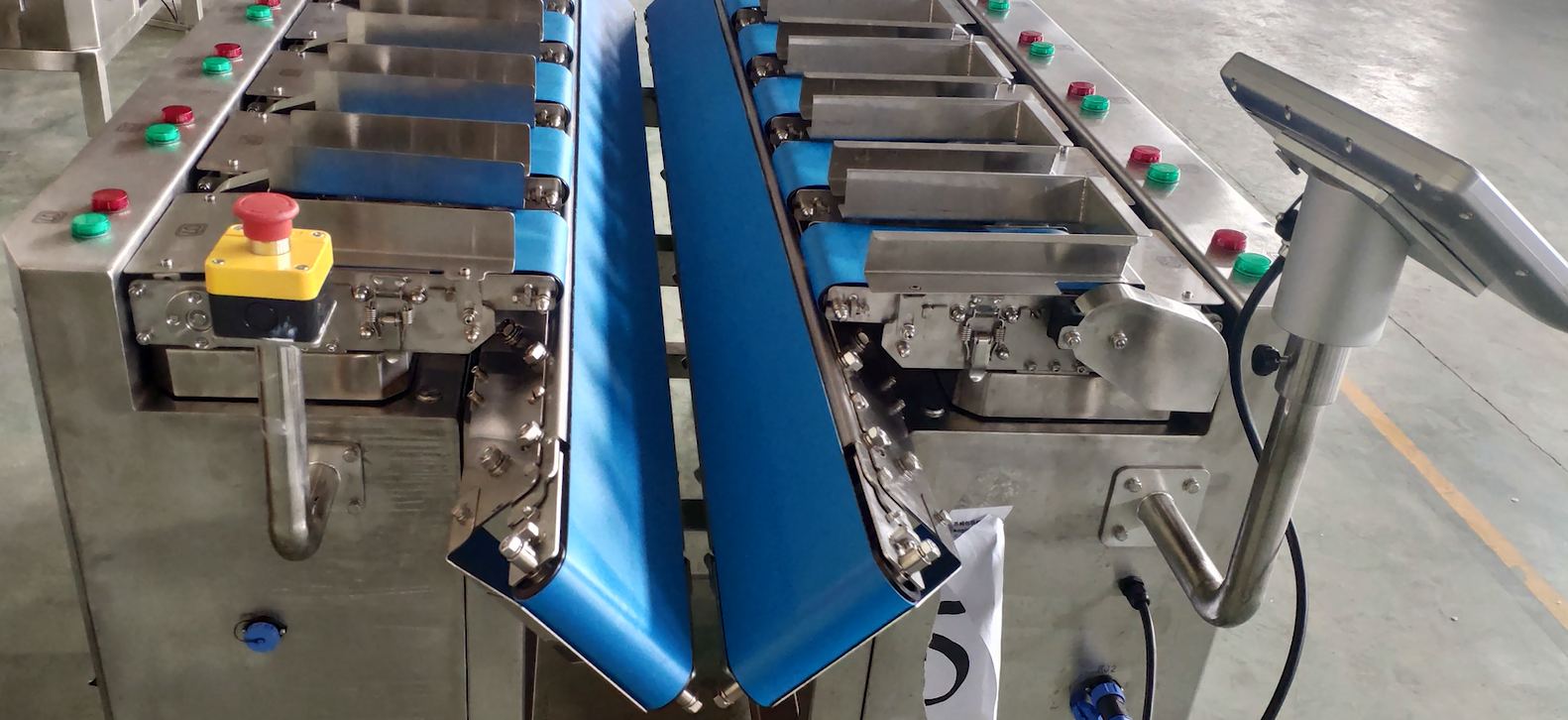

4.    V-shaped belt weighing machine prevent large pieces of vegetables like lettuce and carrots breakage and the height of the belt can be freely adjusted.

Linear belt weigher, does it work that well? 5

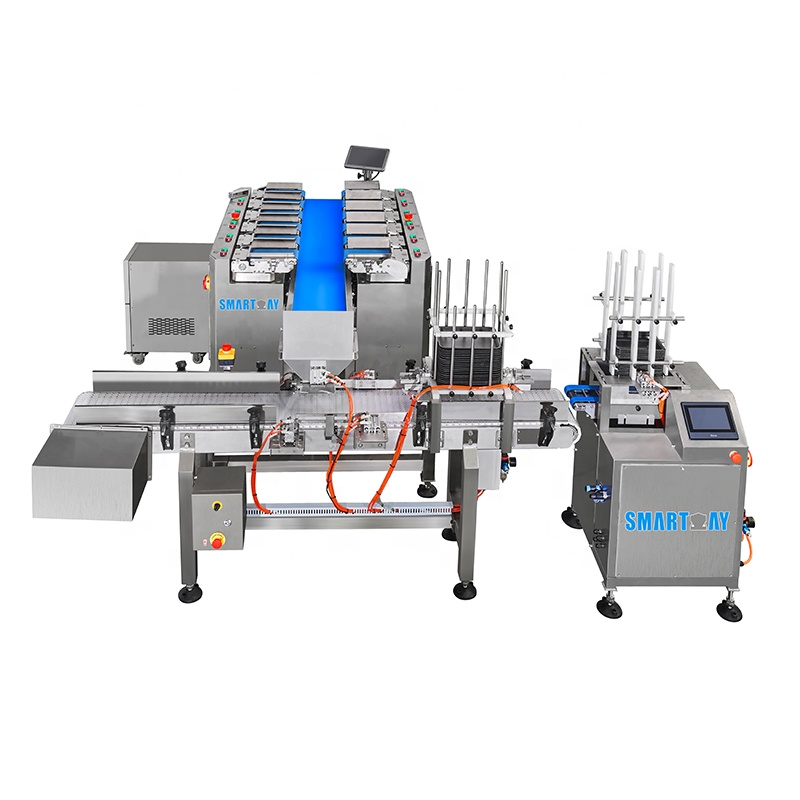

5.    Linear belt weighing machine with high compatibility can be connected to a tray packing machine to integrate a tray denester system.

Linear belt weigher, does it work that well? 6

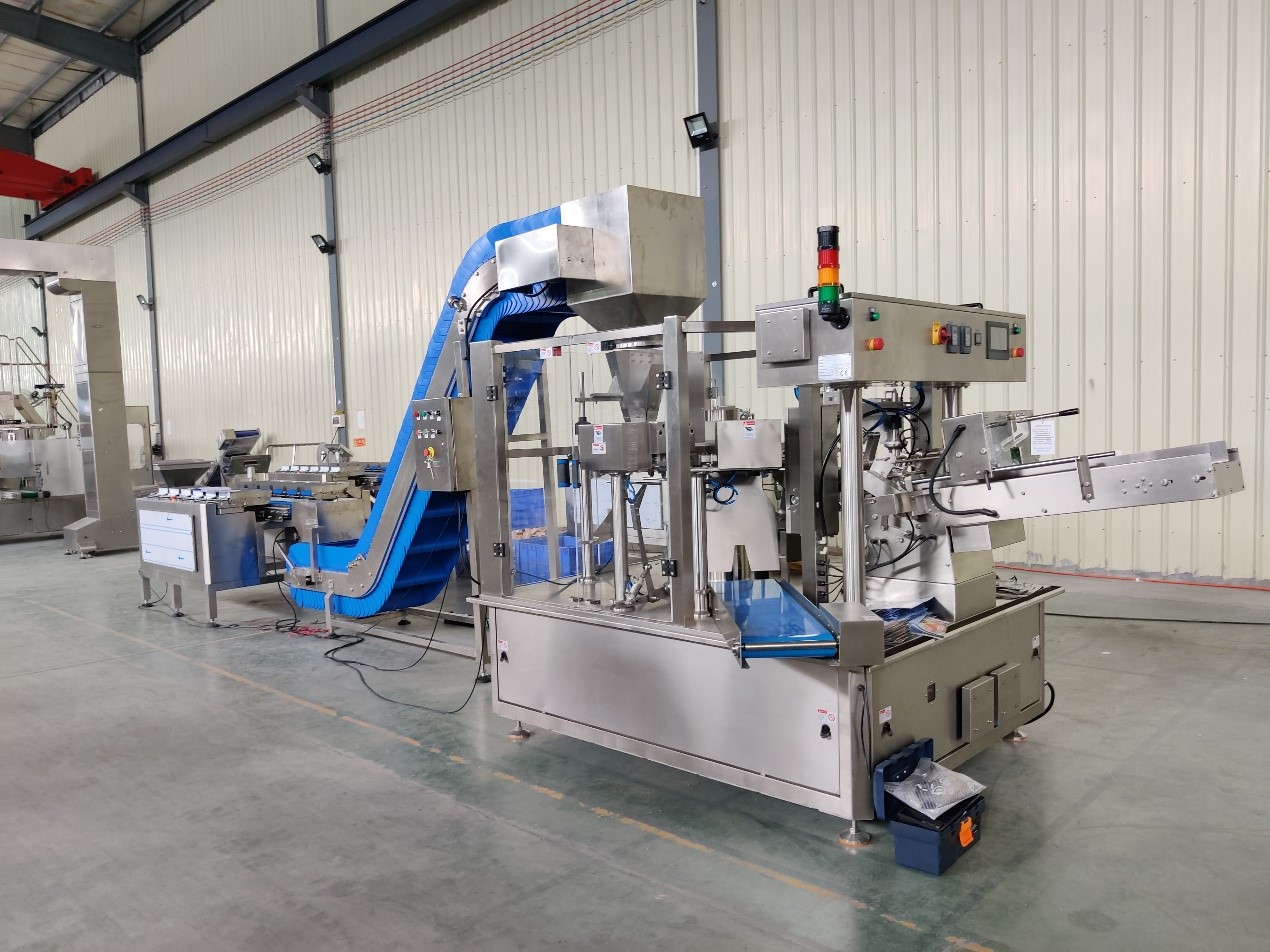

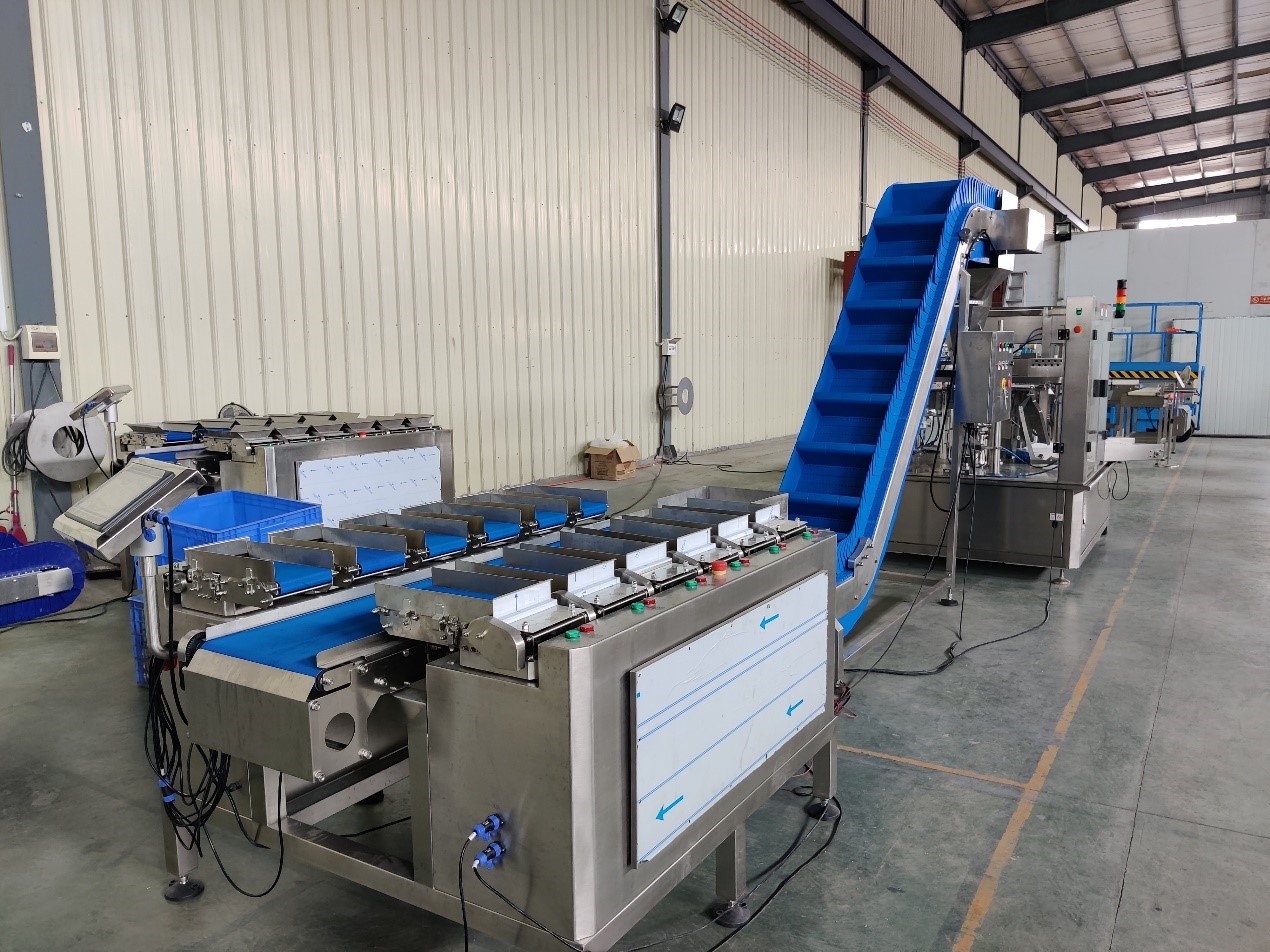

Multihead linear combination weighing machine, conveyor and rotary packing machine together integrate a premade bag packaging system.

Linear belt weigher, does it work that well? 7Linear belt weigher, does it work that well? 8



Application

Semi-automatic weighing system is mainly apply in weighing various kinds of high quality food. Row meat in the form of cutlets, goulash or sausages as well as fish and sea food are examples here. Semi-automatic multihead weighers are also extensively used in the weighing and packaging of fresh fruit and vegetables, such as cucumber, apple, etc.

Linear belt weigher, does it work that well? 9Linear belt weigher, does it work that well? 10

Linear belt weigher, does it work that well? 11Linear belt weigher, does it work that well? 12



Product Certificate

Linear belt weigher, does it work that well? 13
