How can you accurately weigh viscous materials?

×
How can you accurately weigh viscous materials?

Background
bg

Purchasing five Linear combination weighers with screw feeders from Smart Weigh, a Singaporean fresh meat supplier claimed that the Multi-head linear weighers for viscous products had successfully solved the issue of automatic weighing of sticky materials while saving manpower.

Sample
bg

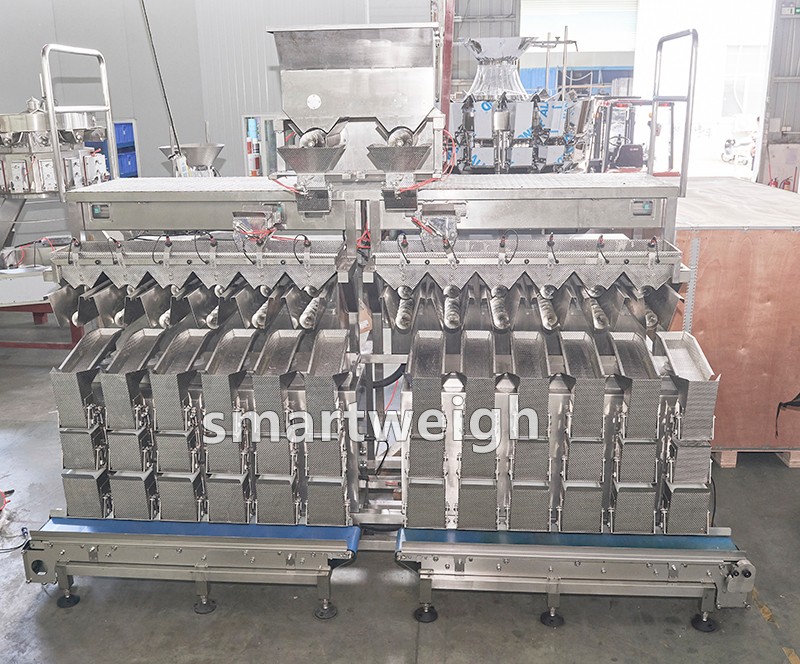

Auto screw feeder weigher meat weighing machine made of SUS304 stainless steel, which is strong and long-lasting.

How can you accurately weigh viscous materials? 1

Screw feeder is suitable for stirring sticky materials

How can you accurately weigh viscous materials? 2

Scrapper type hopper prevents sticky materials from staying on the hopper.

How can you accurately weigh viscous materials? 3

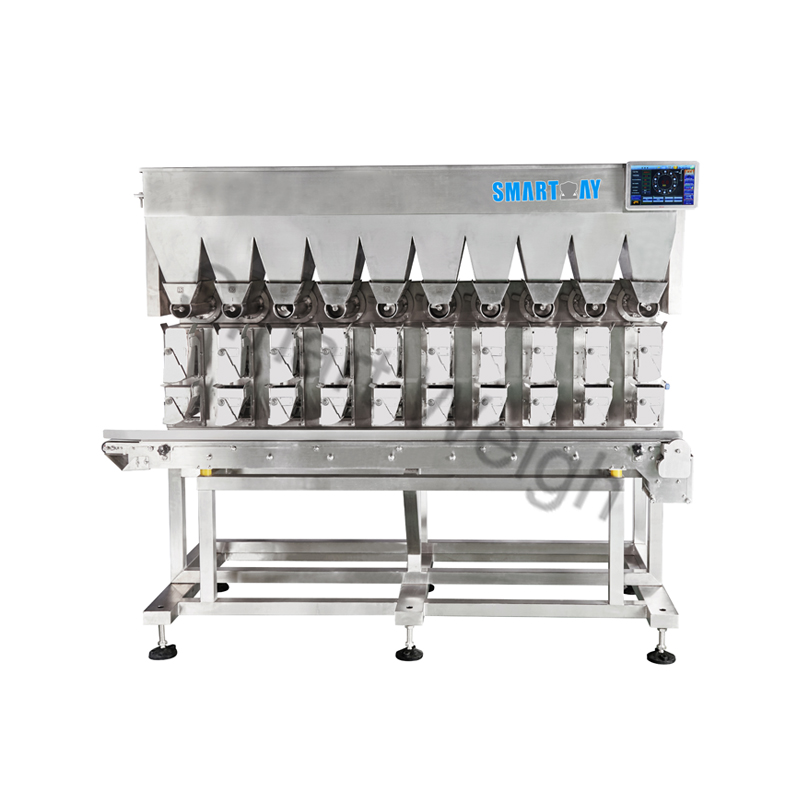

Specification
bg

How can you accurately weigh viscous materials? 4

Model

                                        SW-LC8-3L

SW-LC10-2L(2 Levels)

Weigh head

                                           8 heads

10 heads

Capacity

                                          10-2500 g

10-1000 g

Speed

                                           5-45 bpm

5-30 bpm

Weigh Hopper

                                                2.5L

1.0L

Weighing Style

                                         Scraper Gate

Scraper Gate

Power Supply

                                             1.5 KW

1.5 KW

Weighing method

                                            Load cell

Load cell

Accuracy

                                           + 0.1-3.0 g

+ 0.1-3.0 g

Control Penal

                                     9.7" Touch Screen

9.7" Touch Screen

Voltage

                       220V/50HZ or 60HZ; Single Phase

220V/50HZ or 60HZ;   Single Phase

Drive System

                                                Motor

Motor

Feature
bg

Ø   The machine has a heated electric box that enables regular operation in a damp environment.

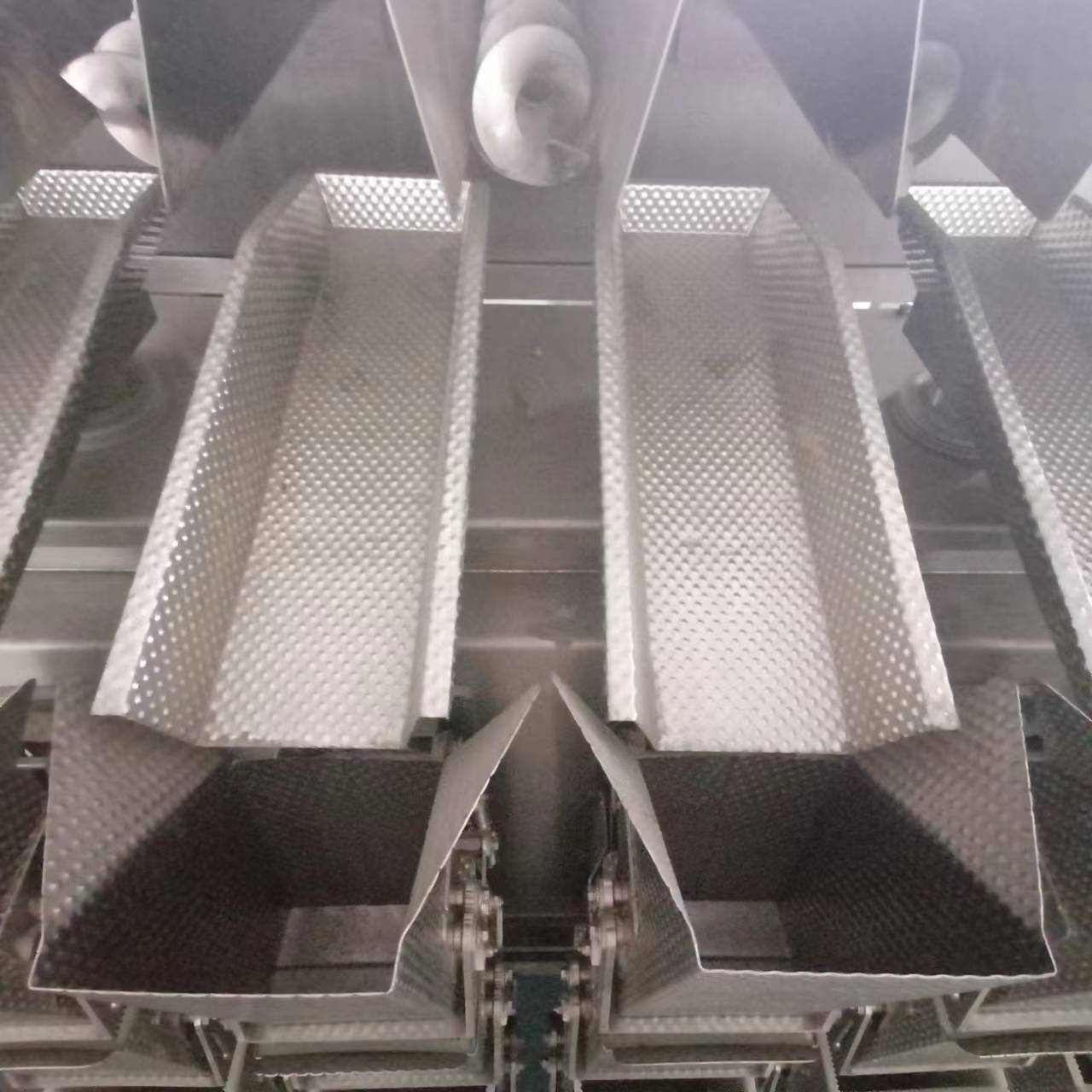

Ø  A feeding tray with a screw speeds up the flow of sticky product.

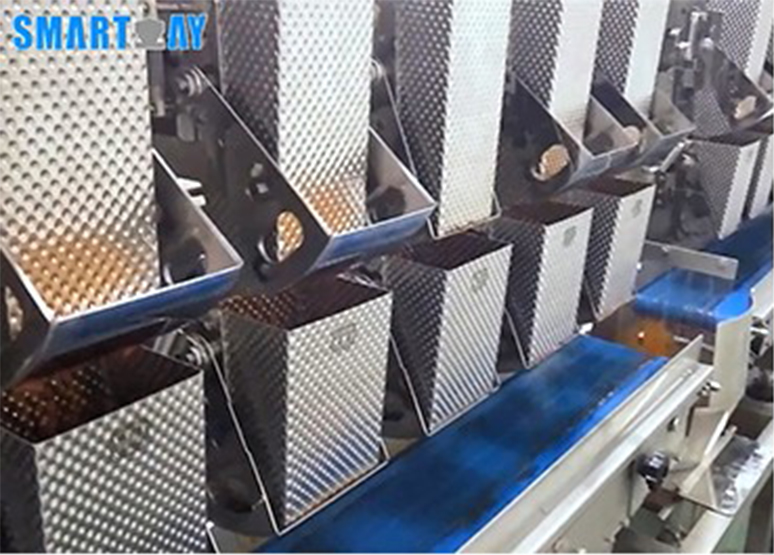

Ø  The scraper gate enhances weighing accuracy by preventing material from adhering, pinching in or cutting.



Ø  Automatic feeding moves more quickly feeds sticky products into the packing machine.



Ø  For simple cleaning after daily use, all food-contact components can be removed without the use of tools. IP65 waterproof rating for simple hopper cleaning.



Ø  High compatibility, can be integrated with automatic packing systems or tray machines.



Ø  The conveyor belt's speed can be adjusted according to the product's resistance to impact.

How can you accurately weigh viscous materials? 5How can you accurately weigh viscous materials? 6

Application
bg

For weighing raw meat, kimchi, fried rice, seafood, and other gooey and oily food, use this Screw feeding multihead weigher for sticky material.

How can you accurately weigh viscous materials? 7
