Automatic noodle packing machine with multihead weigher filling

Nowadays, there are many kinds of noodles on the market, and the packaging of noodles is also varied; but no matter how it changes, it is inseparable from the noodle packing machine, and the production of the noodle packaging machine has solved the urgent need for most enterprises.

There is no definite number of soft noodles available in the market as it varies depending on the location, store, and brand. However, some of the popular soft noodles brands in the market include Nissin, Maruchan, Indomie, and Samyang. These brands offer a wide range of soft noodles flavors and packaging options, such as cup noodles, ramen noodles, and instant noodles.

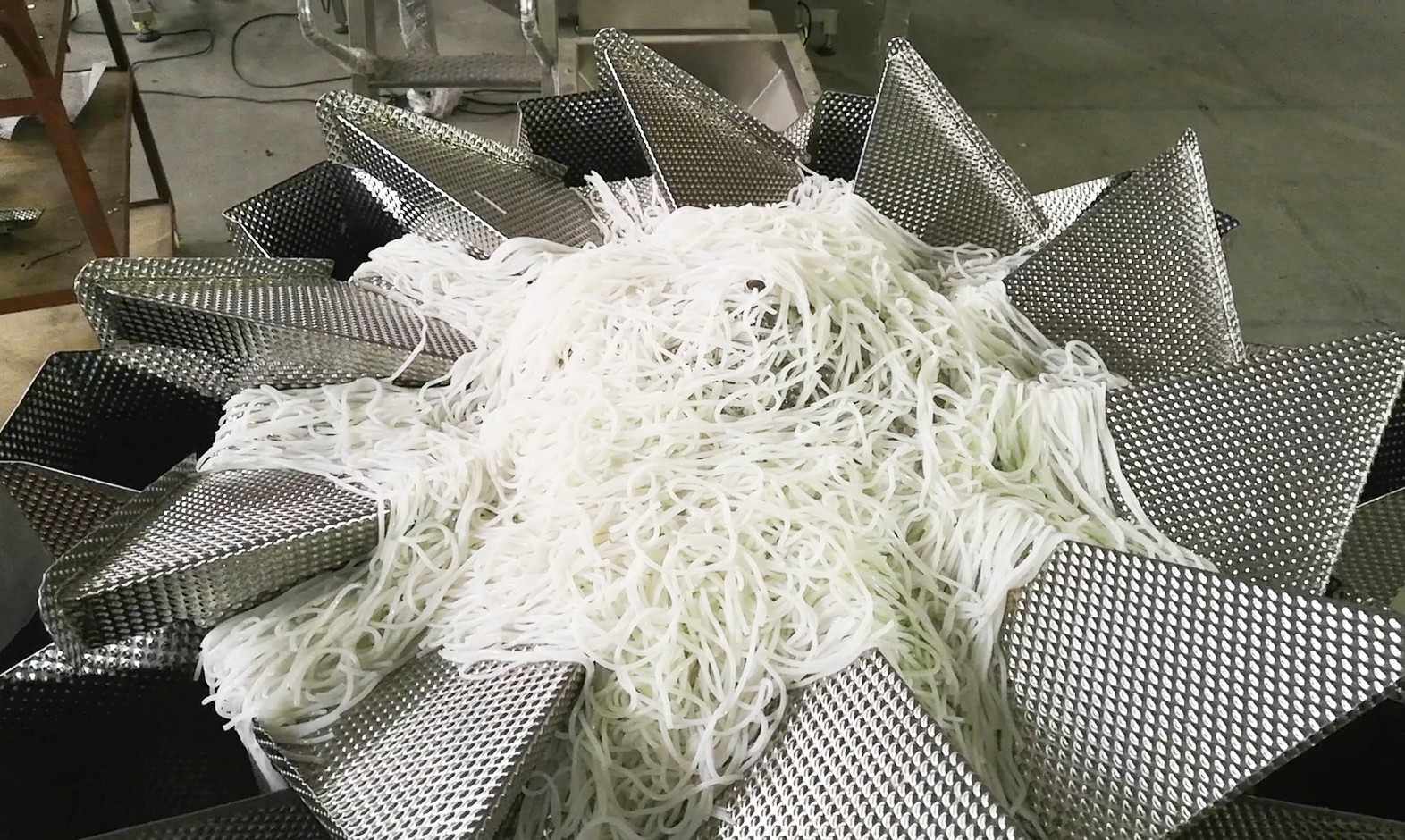

The noodle shaped application had always been a challenge to the multihead weigher, it is not only long, sticky and soft but also extremely tangling, those conditions have made weighing by multihead weighers literally impossible.

Now let Smartweigh introduces you the advantages of the noodles packaging machine line, our noodles packing machine is suitable for silk noodles, udon (seafood noodles), rice noodles and etc.

※   Features

1. Have exclusive and strong amplitude of linear feeder, strong dispersed performance ability.

2. To add a memory hopper at the bottom of weighing hopper, increase combination frequency and reduce strong emission.

3. Cylindrical casing design, easy for cleaning and save time.

4. Modular electronic system makes funtion expanding and maintenance easier and at lowest cost

5. Automatic grade: full automatic from feeding, weighing, filling, bag forming, date-printing ang bag sealing

1. Adopt high precision and high accurate loadcell of famous brand, resolution is improved up to 2 decimal; 2. Program recovery function can reduce operation failures and support multi-segment weight calibration; 3. No products auto pause function can improve weighing stability;

1.Suitable for products with max 300mm length; 2.IP65 cabinet design, dimple plates for food contact parts; 3.Air pressure system built in cabinet prevents the electronic components from damage due to humidity; 4.60° steep discharge chute makes sure products discharge smoothly;

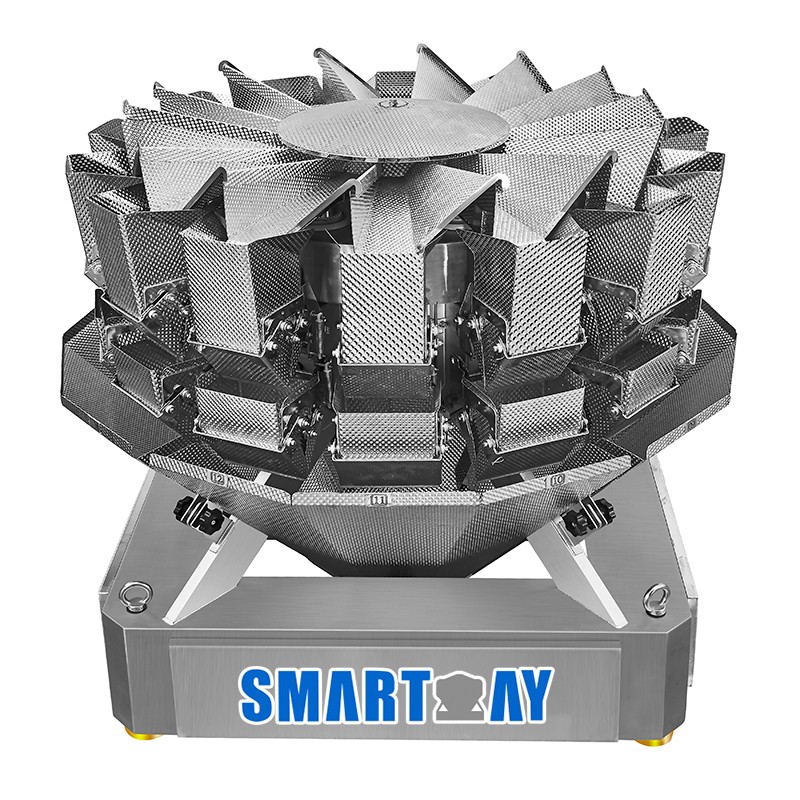

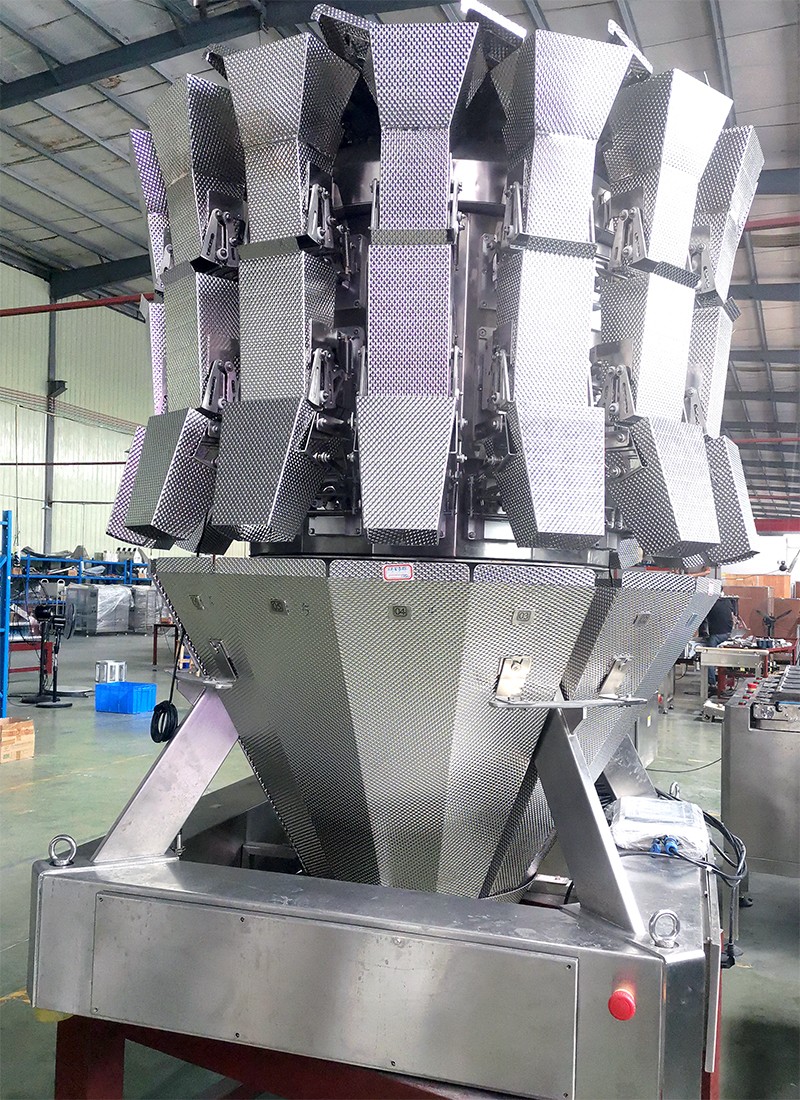

16 heads Multihead weigher

5.Equipped with a specially designed central cone, rotary top cone and dispense the products into each linear feeder pans evenly; 6.Rotary rollers equipped between each linear feeder pan helps to dispense the long soft products into feed hoppers. 7.Aluminum thickened middle standing enhances the strength of the machine, making the time for stabilizing hoppers much shorter.
